1.2 The Simrad integrated system
The standard RS86/RS87 radiotelephone can support up to two
stations with full intercom facility, geographical position input
via SimNet or NMEA 0183, and iDSC integration with Simrad
Chartplotters, which enables the plotters to display DSC call
information.
With the addition of an expansion board, the system can support
an additional two stations, two intercom speakers, and forward
and aft foghorn/loudhailer speakers in addition to the standard
functions.
Additional stations can either be another RS87-type telephone
handset, or an RS86 fixed-panel display with a passive telephone
handset or fistmike, allowing great flexibility in installations
(Fig 1.1).

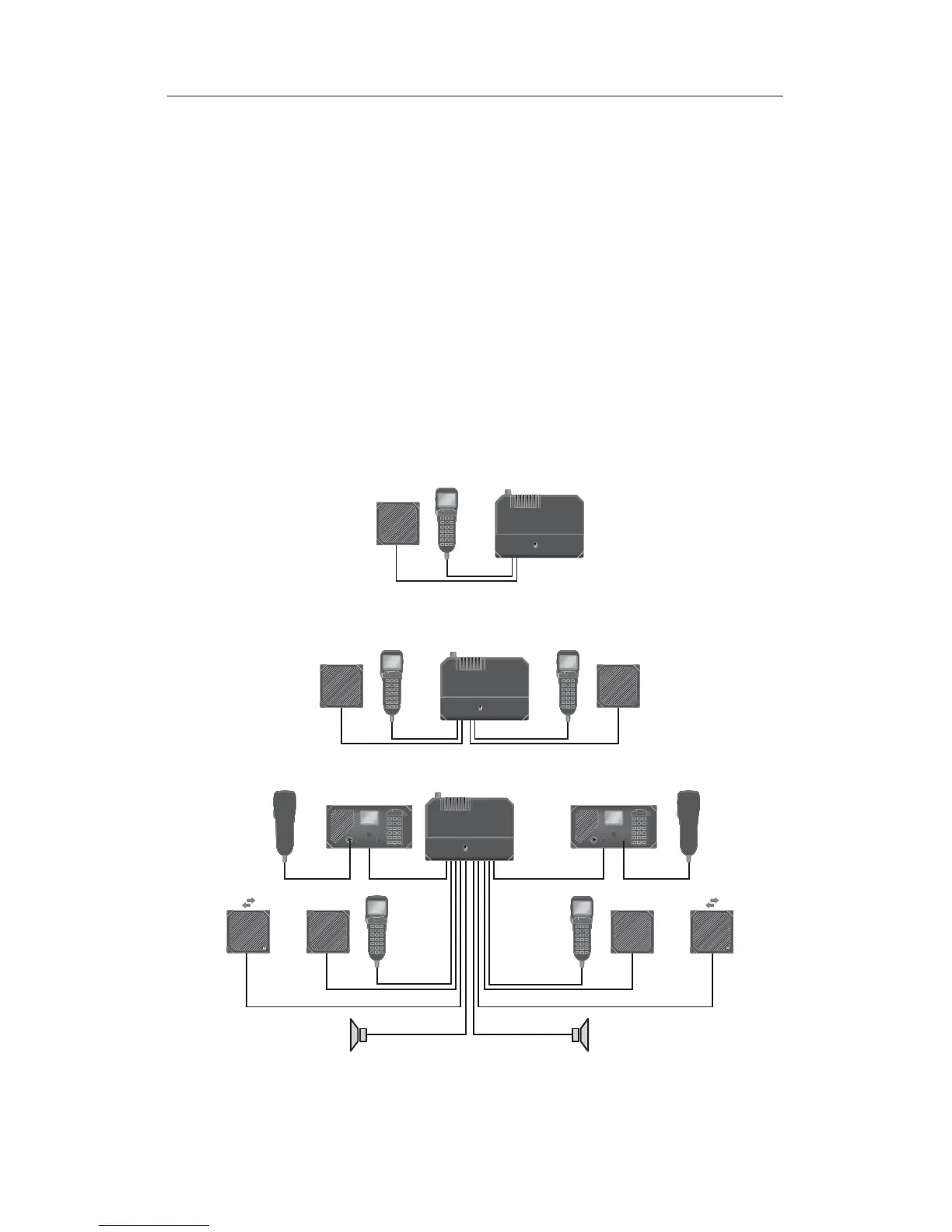

Fig 1.1 - RS86/RS87 system options
DUAL STATION SYSTEM
EXPANDED SYSTEM
BASIC SYSTEM
