7.2.8 iDSC output
The RS87 is designed to integrate with other Simrad equipment
which enables DSC call information to be displayed on the
xx33, xx42 and xx52 series chartplotters.
Connect the iDSC input terminals of the chartplotter to the ter-
minals marked “iDSC” as shown (Fig 7.11) -
RS87 VHF
64
Part No. E04297
Terminal
Number
3
4
Wire
Reference
iDSC -
iDSC +

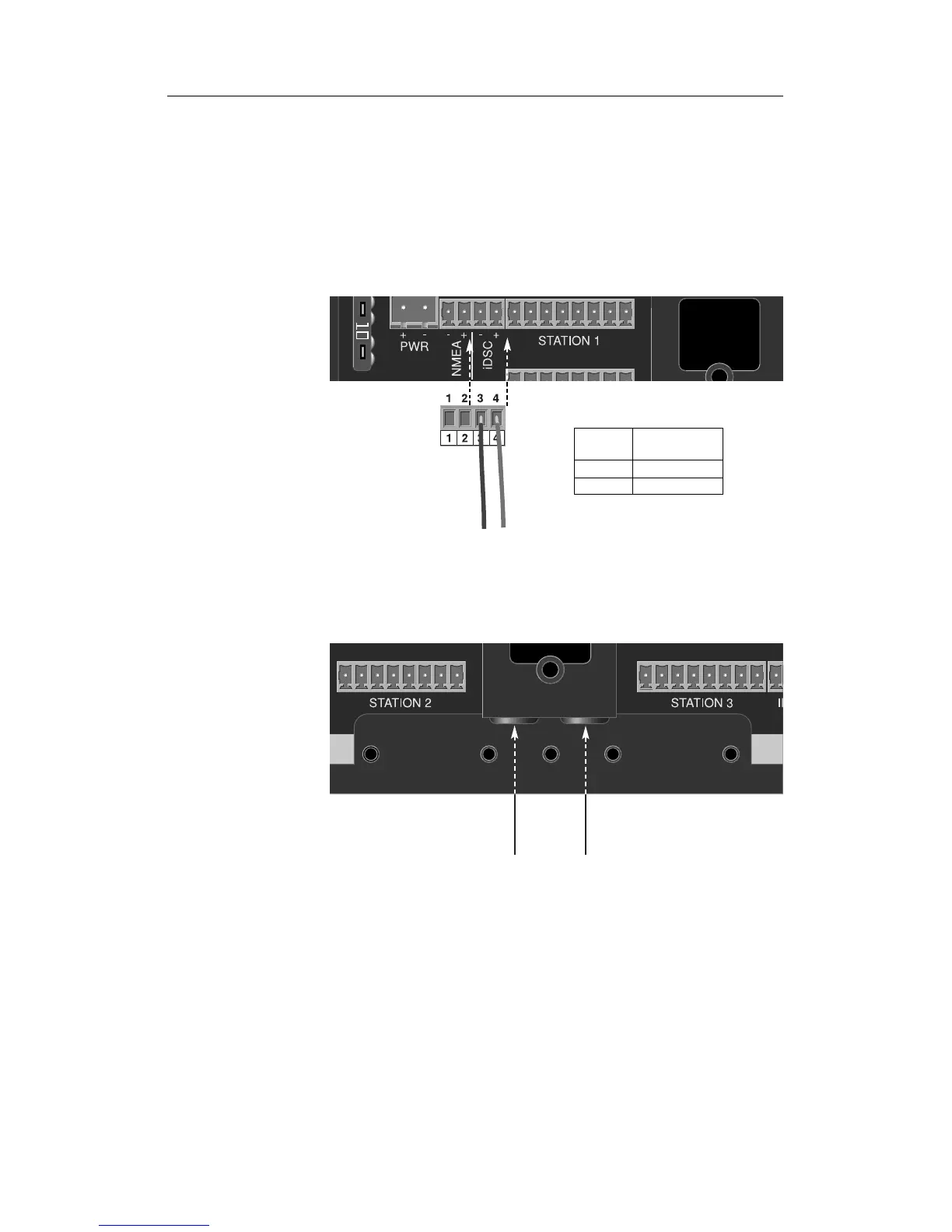

Fig 7.11 - iDSC output terminal connections
7.2.9 Future options
The two circular ports in the centre of the connection panel are
reserved for future options (Fig 7.12) -
Fig 7.12 - Future options
Reserved
for future
options
