1.2 The Simrad integrated system
The standard RS87 radiotelephone can support up to two sta-
tions with full intercom facility, geographical position input
via NMEA0183 and iDSC integration with Simrad chartplotters
which enables the plotters to display DSC call information.
With the addition of the expansion board, the system can sup-
port an additional two stations, two intercom speakers and for-
ward and aft foghorn/loudhailer speakers in addition to the
standard functions.
Additional stations can either be another RS87 type telephone
handset, or an RS86 fixed panel display, with a passive tele-
phone handset or fistmike allowing great flexibility in installa-
tions (Fig 1.2) -
Instruction Manual
9
Part No. E04297

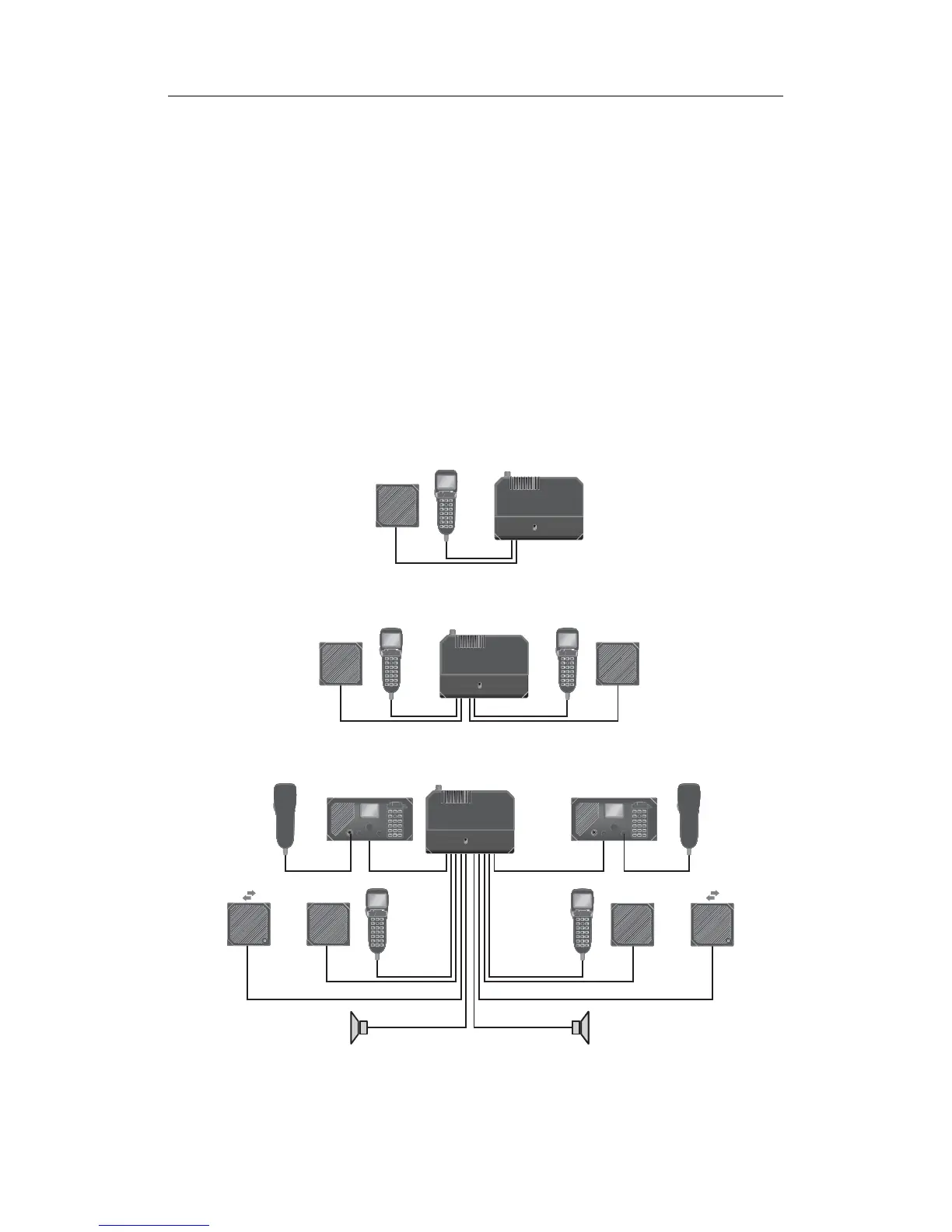

Fig 1.2 - RS87 system options
DUAL STATION SYSTEM
EXPANDED SYSTEM
BASIC SYSTEM
To Next Page
