97

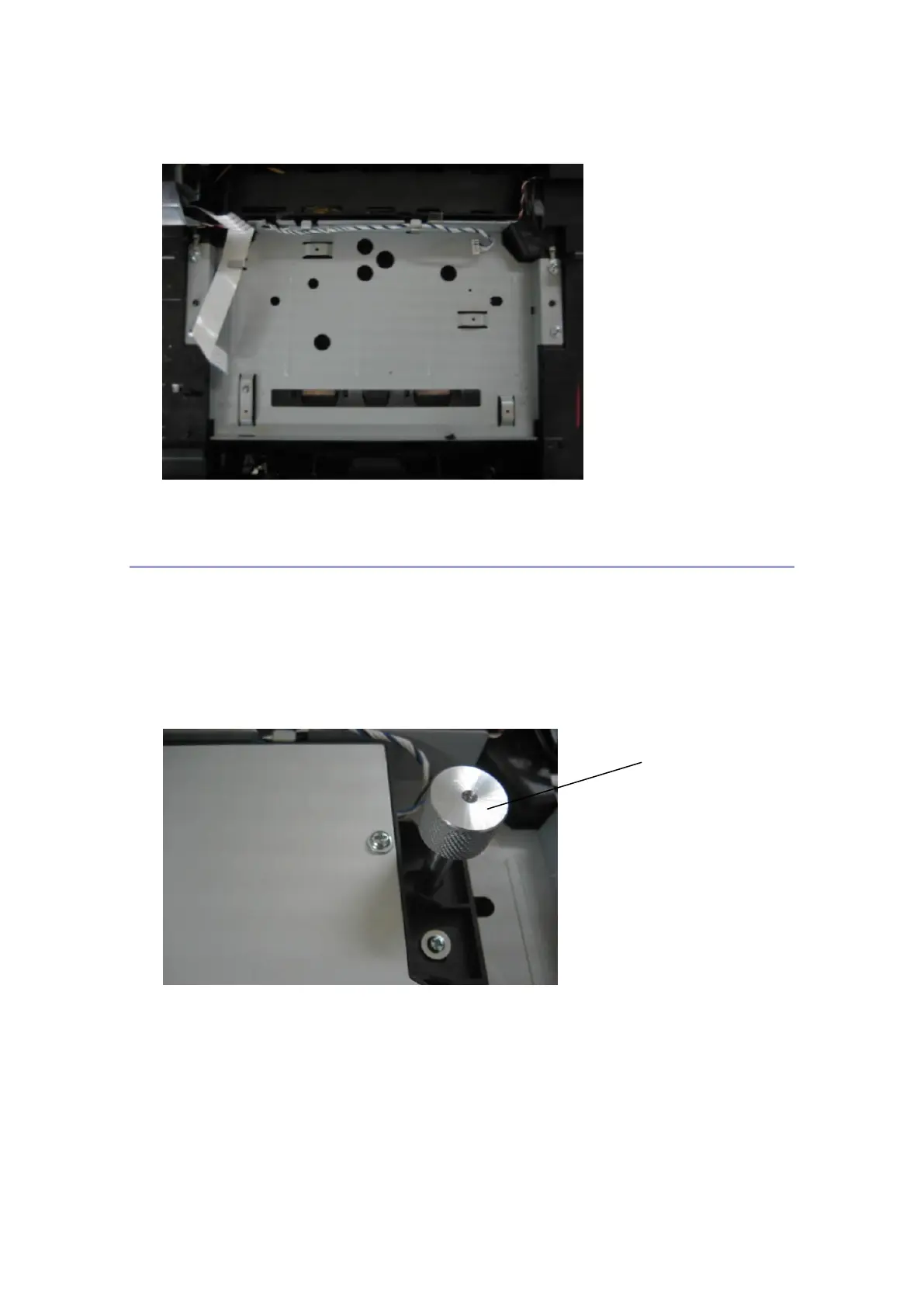

Installation of the laser unit
1. Place the laser unit onto the FRAME.
2. Position the laser unit on the frame using skew JIG[A] before completely fixing it, and
then tighten it with 4 screws.
※ Order of screwing : 1, 2, 3, 4
[ A ]
