98

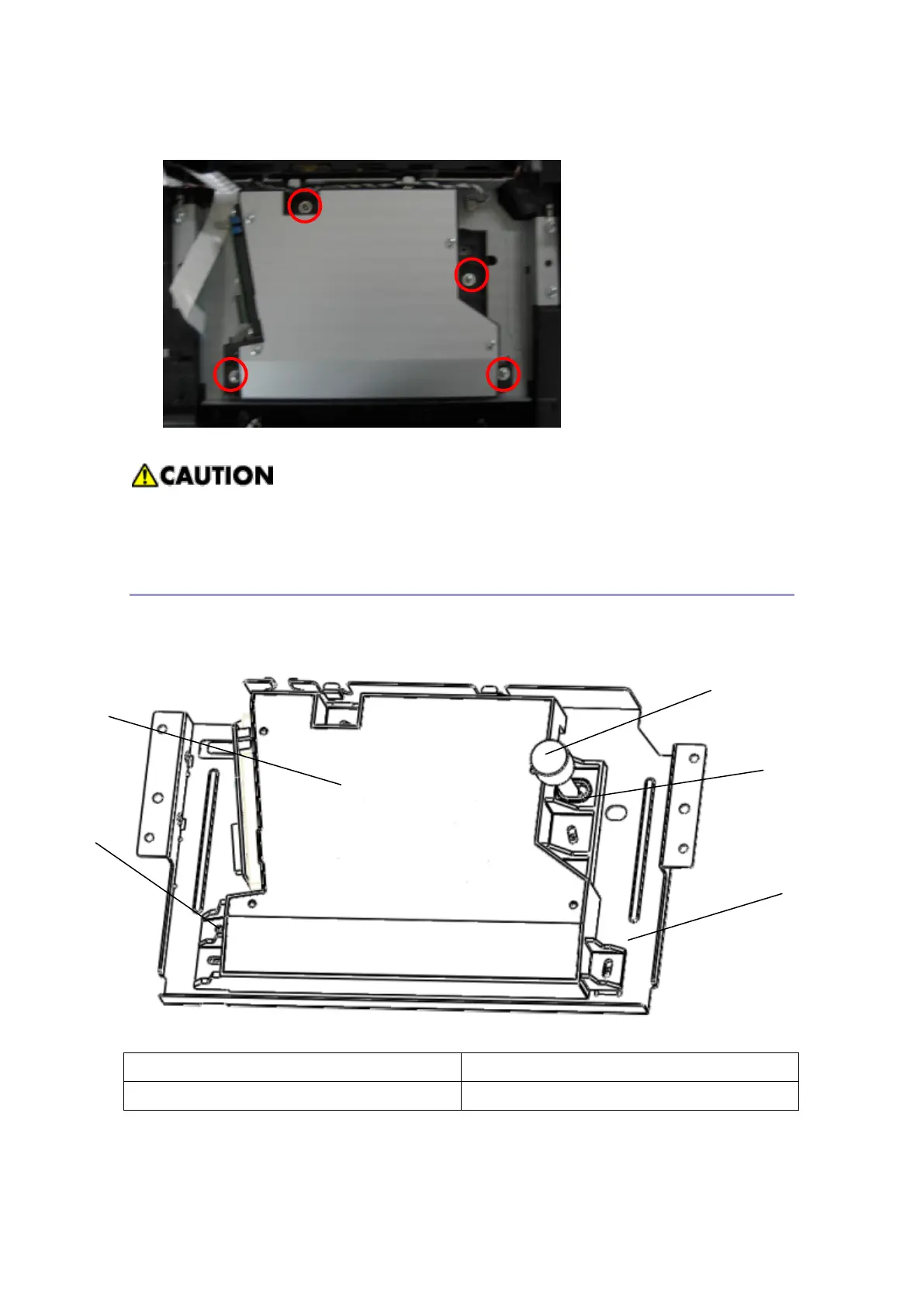

When re-assembling the laser unit, check the alignment of the laser unit and perform
"laser unit adjustment" before installing the top cover.
Alignment of Laser Optical Housing Unit
In case of replacing and mounting the laser unit with a new one, align the laser unit upon
the below processes.
A : Laser Unit
C : Skew Adjustment JIG( like CAM)
B : BKT STAY LSU
1. Insert the hole `1` hole of `A` into EMBO `1` of ‘B’
1
2
3
4
[ A ]
1
2
[B ]
[C ]
[C]
