21
As you open the front door of the machine, the link to the font door is moving to the #1
direction. Upon the moving link the lever#2 consequently moves, and the cartridge is
locked by the oldham lever and dogbone lever pushing each couple.

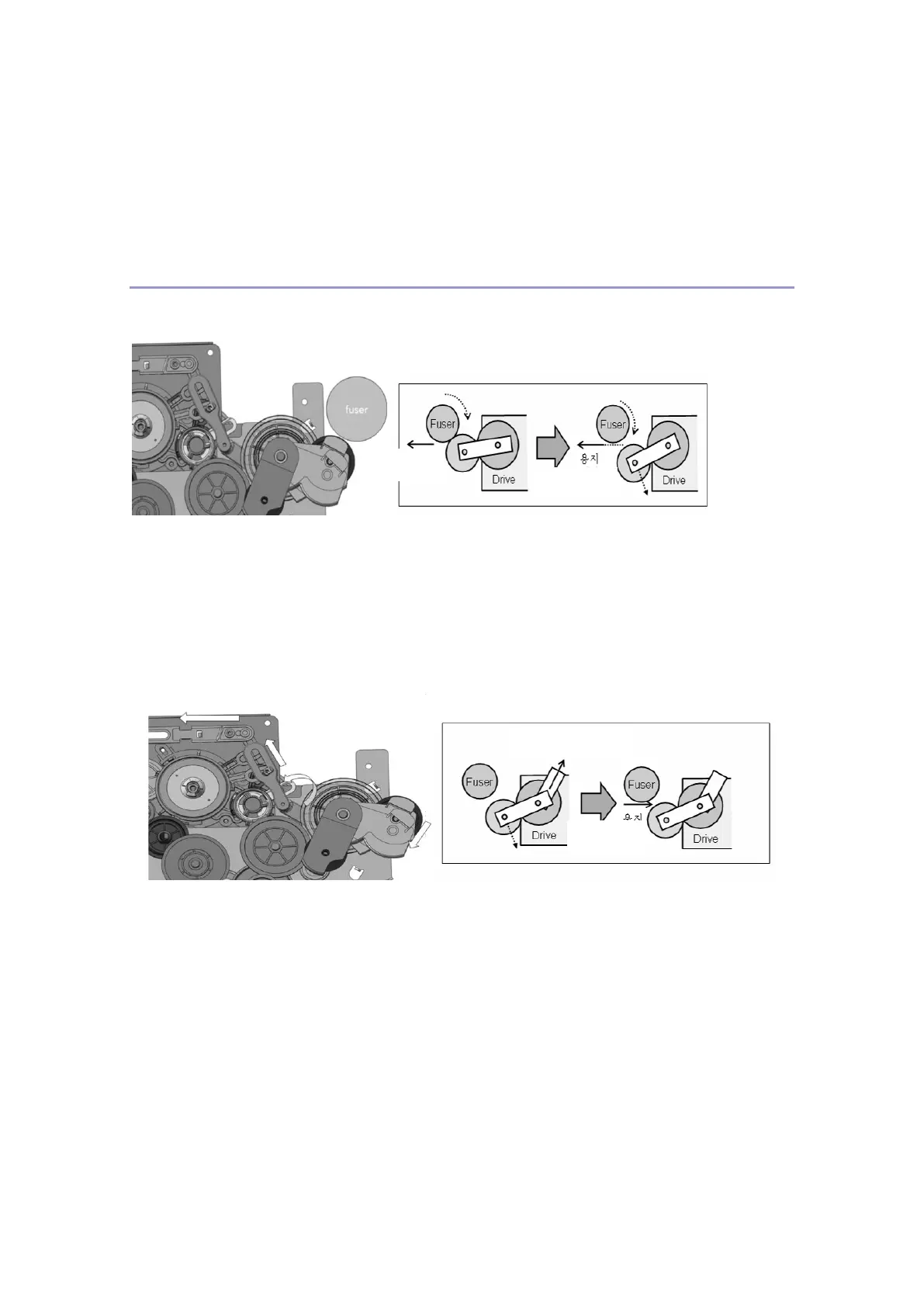

When Removing the Paper Jam at Fuser
1. When removing the paper jam stucked in rear side of Fuser
Gear link is moved backward and the connections of the gears are released to remove
the paper jam.
2. When removing the paper jam stucked in the front side of Fuser
Gear mesh is released and the paper jam can be removed by opening the front door and
the links which is connected to the front door.
