5
HTE302172 9/46
6

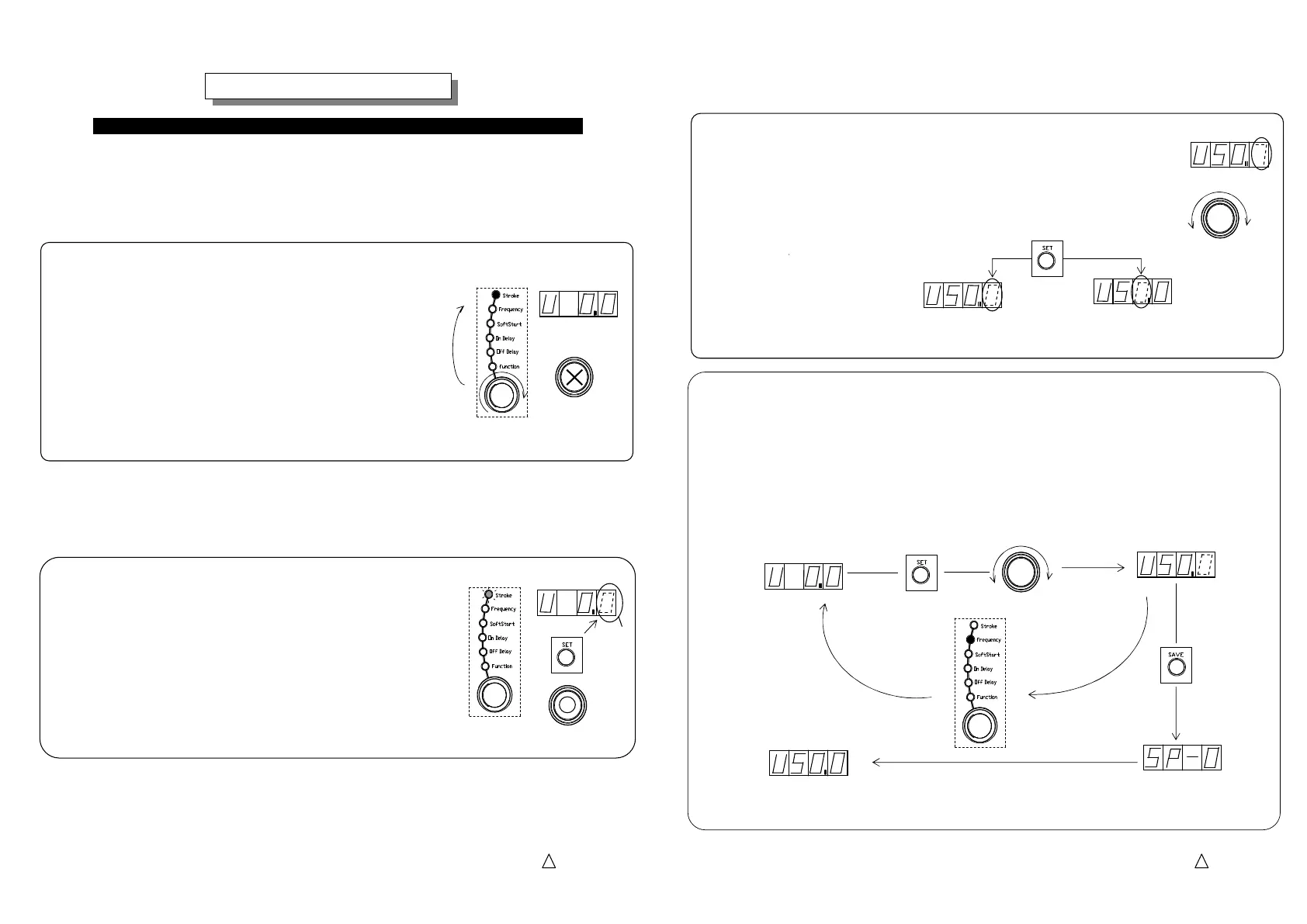

Basic setting up procedure is described here illustrating setting up of the Stroke. The
same procedure is applied for setting up of Frequency, Soft Start Ramp-up time, On-delay
and Off-delay time.
1. Select “Stroke” with the Selection Dial turning on “Stroke” lamp.
Dialing the selection dial turns on selected lamp
in the Selection Lamp and the set value of the selected
function appears on the display.
Note: “Stroke” represents percentage of the output voltage
or amplitude per the maximum.
Note: The first letter “U” of the data appeared on the display
shows “setting by output voltage” and “A” shows
“setting by amplitude”.
Basic Setting up Procedure
Basic Setting up ProcedureBasic Setting up Procedure
Basic Setting up Procedure
Setting Encoder
: Disable
-Continued-
How to operate the
How to operate the How to operate the
How to operate the
Control Pane
Control PaneControl Pane
Control Pane
Selection Dial
Dial
Turning on
“Stroke” data appears.
2. Push “Set” button to change the mode from “Indication”
To “Adjust”.
It enables alteration of the data appeared on the display
and the lowest digit blinks for alteration.
Setting Encoder: Enable
Blinking
Push Button
Blinking
“Stroke” data appears.
5
HTE302172 10/46
6
3. Dial the setting encoder up to appear a desirable setting value on the display.
The digit blinking is changeable with the dial.
Note: On setting “Stroke” and “Frequency” push
the Setting button to shift the digit blinking.
The“Setting of Stroke”must be set within the maximum stroke of the drive unit.
Setting Encoder
: Enable
Digit altered
Dial
Push button
4. Push “Save” button to store the data having been set.
After stored the data the selection lamp stops blinking and is turned on continuously.
The alteration of the setting becomes effective by the procedure 3.
However without “Save” action, turning the power switch off or dialing the setting dial to set
another data cancels the procedure 3. and the data stored is not renewed.
Setting Encoder
Dial
Push button
Select another function
Storing
New data is stored.
Dial the Selection Dial
Push button
Note: Function code “SP-0” means Speed Change “No. 0”.
As for Speed Change see the article “External Operation Signal”.
To Next Page
