Applicable wire gauge
Applicable wire gaugeApplicable wire gauge
Applicable wire gauge: AWG28/0.08 sq. mm toAWG20/0.5 sq. mm.
The external diameter must be less than 1.5mm.
Procedure
ProcedureProcedure
Procedure

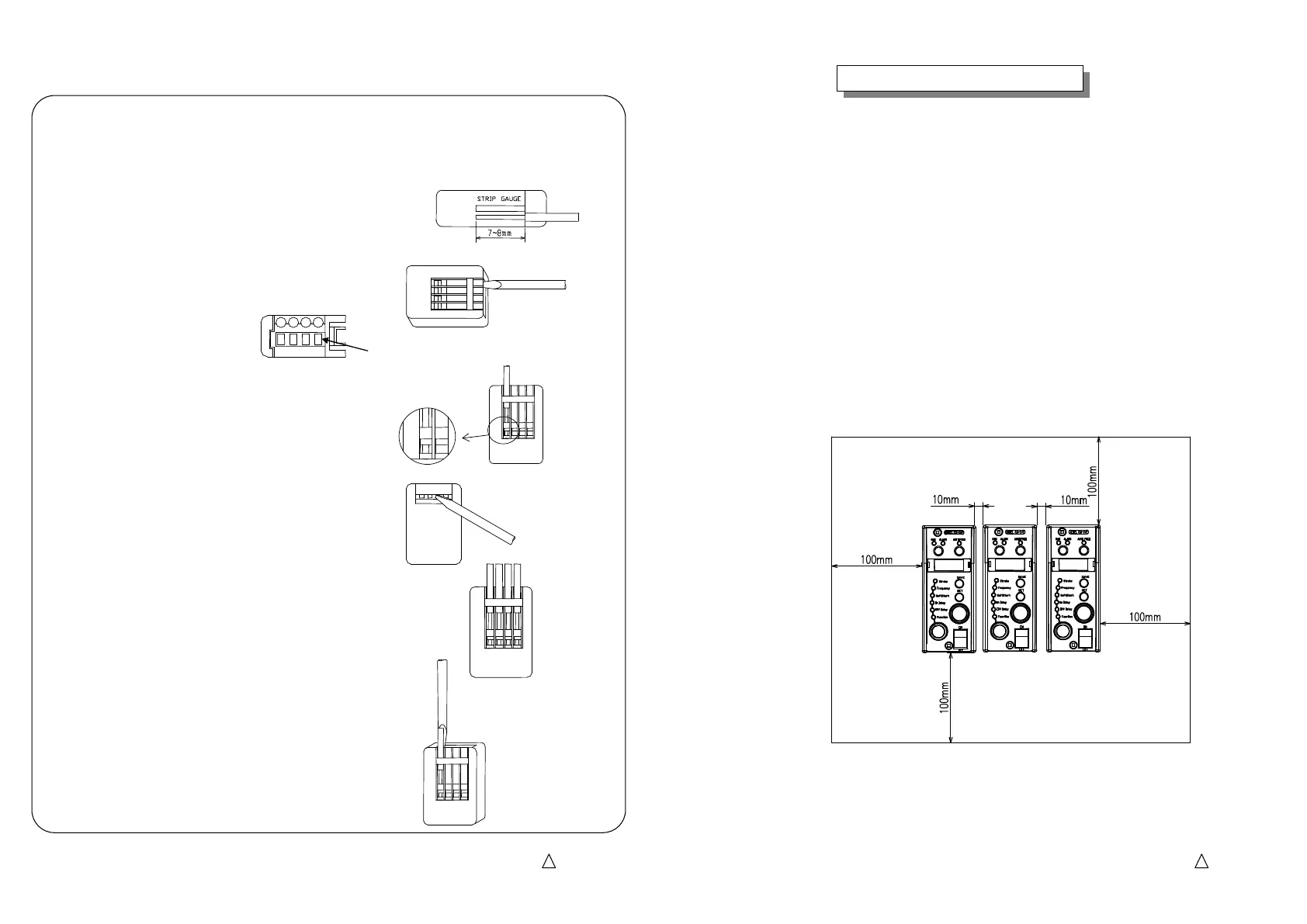

1. Remove the covering, 7-8 mm long, according to the “Strip Gauge
”
on the connector.
Twist the twisted wire some turns.
2. Push a white clamp lever into the plug conne
ctor
with a minus driver up to lock the lever.
3.
Insert a conductor of a cable deep into the
connector as a covering of the cable is entering the
connector and the conductor has reached clamp port.
How to wire the
How to wire the How to wire the
How to wire the “
““
“E
EE
E-
--
-Con
ConCon
Con”
””
” connector
connectorconnector
connector
4. Insert a minus driver into the
release port and pull the
lever back. The lever clamps the conductor with “clap
”
sound.
5． Confirm the levers are released and clamp
each conductor.
Pull the cable and the connector lightly with your hands
and you feel light resistance the cable is connec
ted
securely.
Disconnection of the cable
Disconnection of the cableDisconnection of the cable
Disconnection of the cable
1.
To release the cable push the white clamp lever into
the connector up to lock it.
Then pull off the cable.
2.
Be sure to release the clamp lever after disconnection
of the cable. However, the other cable is going
to be connected do the work as the lever is locked.
Push a white clamp lever
5
HTE302172 36/46
6
CE Marking requires conditions mentioned below and installation of noise filters.
Under the conditions the controller conforms to the EC Directive.
Directives conforming to:
Low Voltage Directive (200/95/EC) EN50178 : 1988
EMC Directive (2004/108/EC) EN61000-6-2 : 2005
EN61000-6-4 : 2007
1. Installation
a. The controller should be installed in an enclosure appropriate for IP4X.
b. The clearance between the controller and the four walls of the enclosure should
be wider than 100 mm.
c. Where more than two sets of the controller are installed in an enclosure
the controllers keep clearance of 10 mm off mutually.
d. The atmospheric temperature in the enclosure has to be kept lower than 40 degree
Celsius or a cooling fan must be provided for.
Conformity with CE Marking
Conformity with CE MarkingConformity with CE Marking
Conformity with CE Marking
