5
HTE302172 5/46
6
Wire the controller and a partsfeeder or a linear feeder.
Note: See page 25 to 28 to use the Stroke sensor and Overflow sensor.

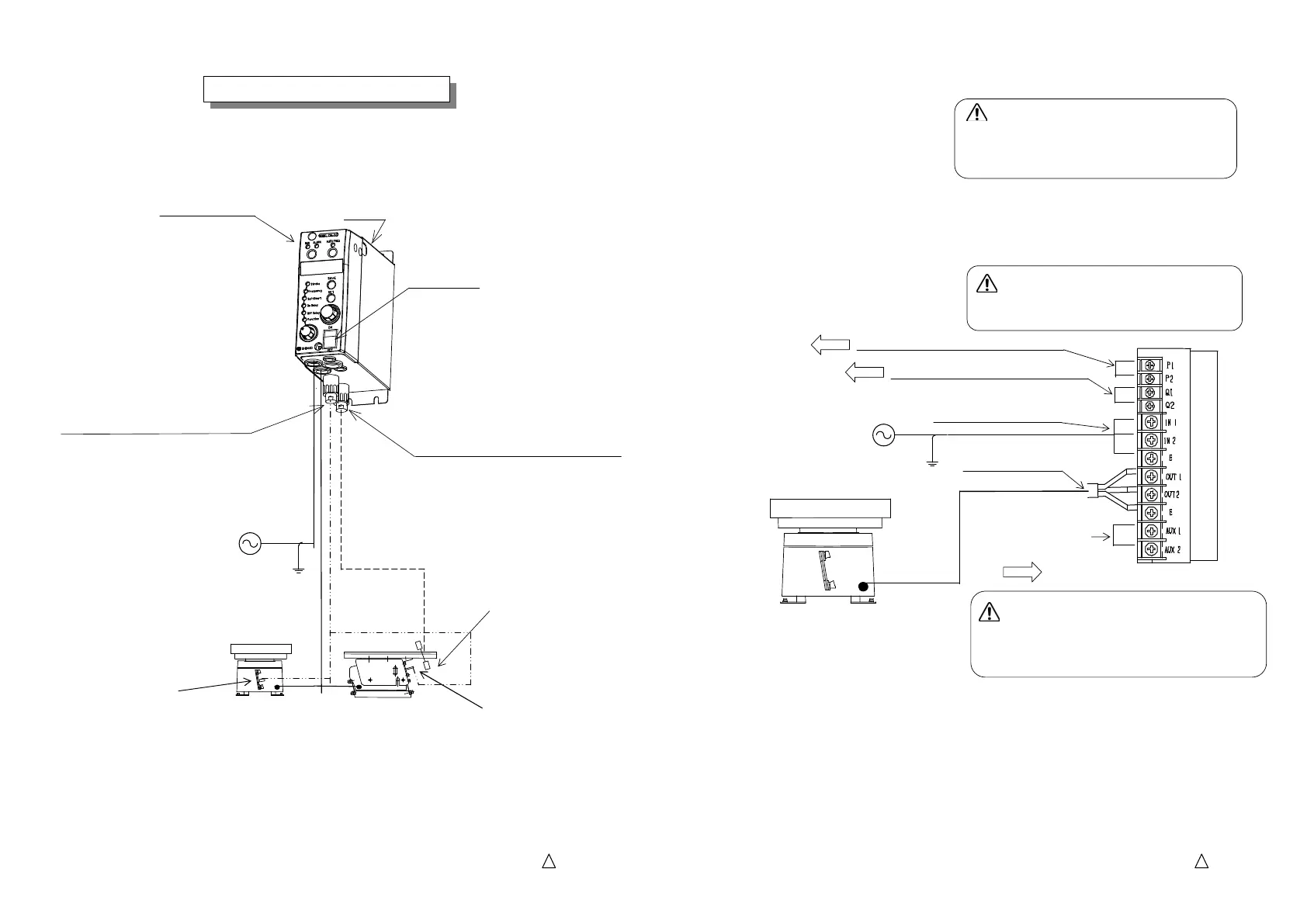

Wiring Connections
Wiring ConnectionsWiring Connections
Wiring Connections
Control Panel
Plug and Socket for Overflow Sensor
Stroke Sensor
Partsfeeder
Stroke Sensor
Linear Feeder
Plug and Socket for Stroke Sensor
Overflow Sensor
Input power is AC200 ～ 230V(200V
system), or 100～120V(100V system).
Output voltage is determined
automatically 190V at 200V system
and 95V at 100V system.
5
HTE302172 6/46
6
① Remove the control panel
② Connect power supply cable and the output cable for load. Connect the stroke sensor.
Wire each cable or lead on the terminals through rubber bushings respectively.
Power supply cable to terminals “IN1”, “IN2” and “E”
Output cable to terminals “OUT1”, “OUT2” and “E”
③ Close the control panel
Power supply Terminals
The control panel must be closed and secured
while C10-controller is in operation. Or else
the operator should get an electric shock.
Danger
DangerDanger
Danger
:
::
:
Before remove the control panel,
disconnect and lock out the power supply at
the safety disconnect switch.
Operation Output Signal Terminals
Output Terminals
External Operation Signal Terminals
See page 29
See page 29
Ground Line
No service is available
Connect the ground line to terminal “E”
without fail
Warning
WarningWarning
Warning
Danger
DangerDanger
Danger
:
::
:
See page 29
Note
NoteNote
Note: If any noise from the controller disturbs any other device, the controller
should provide suitable noise suppression parts on it at your own expense.
Please consult “Conformity with CE Marking” on page 36 for selection and
installation of the parts.
