5
HTE302172 7/46
6
“DISPLAY
DISPLAYDISPLAY
DISPLAY”
Data such as output voltage by
percentage representing the stroke,
drive frequency, all settings and
error codes is shown on the display.
“SELECTION DIAL
SELECTION DIALSELECTION DIAL
SELECTION DIAL”
The dial selects what is
indicated in the Display.
“SELECTION
SELECTIONSELECTION
SELECTION” Lamps
The lamp shows what kind of data is
appearing in the “DISPLAY”.
Stroke: Output voltage by percentage
Frequency: Output frequency
Soft Start: Rump-up time of soft start
On Delay: On delay time
Off Delay: Off delay time
Function: Name of Function
“AUTOFREQ
AUTOFREQAUTOFREQ
AUTOFREQ” Button
This button selects the mode to
enable or disable auto-tuning by
pushing more than three seconds.
RUN/STOP
RUN/STOPRUN/STOP
RUN/STOP” Button
Run and stop the partsfeeder
manually.
“AUTO FREQ
AUTO FREQAUTO FREQ
AUTO FREQ” Lamp
The lamp is turned on the
auto-tuning mode and flickers at
auto-tuning.
“RUN
RUNRUN
RUN” Lamp
The lamp is turned on while the
partsfeeder is running.
“ALARM
ALARMALARM
ALARM” Lamp
The lamp is turned on at two occasions:
a. On the “Constant Stroke” and “Auto-tuning” modes the
output voltage of C10-controller has saturated and it can
not chase the setting point of the stroke.
b. Any error has issued a warning.
“SAVE
SAVESAVE
SAVE” Button
Push to store the data having been
set.
“SET
SETSET
SET” Button
The button changes the mode from
“Indication” to “Adjust”. On the
“Adjust” mode of Stroke and Frequency,
it changes a digit that is adjusted.
“SETTING ENCODER
SETTING ENCODERSETTING ENCODER
SETTING ENCODER”
The encoder alters a numeral in the
blinking digit on the display.
: Turning on
: Turning off
How to operate the Control Pane
How to operate the Control PaneHow to operate the Control Pane
How to operate the Control Pane

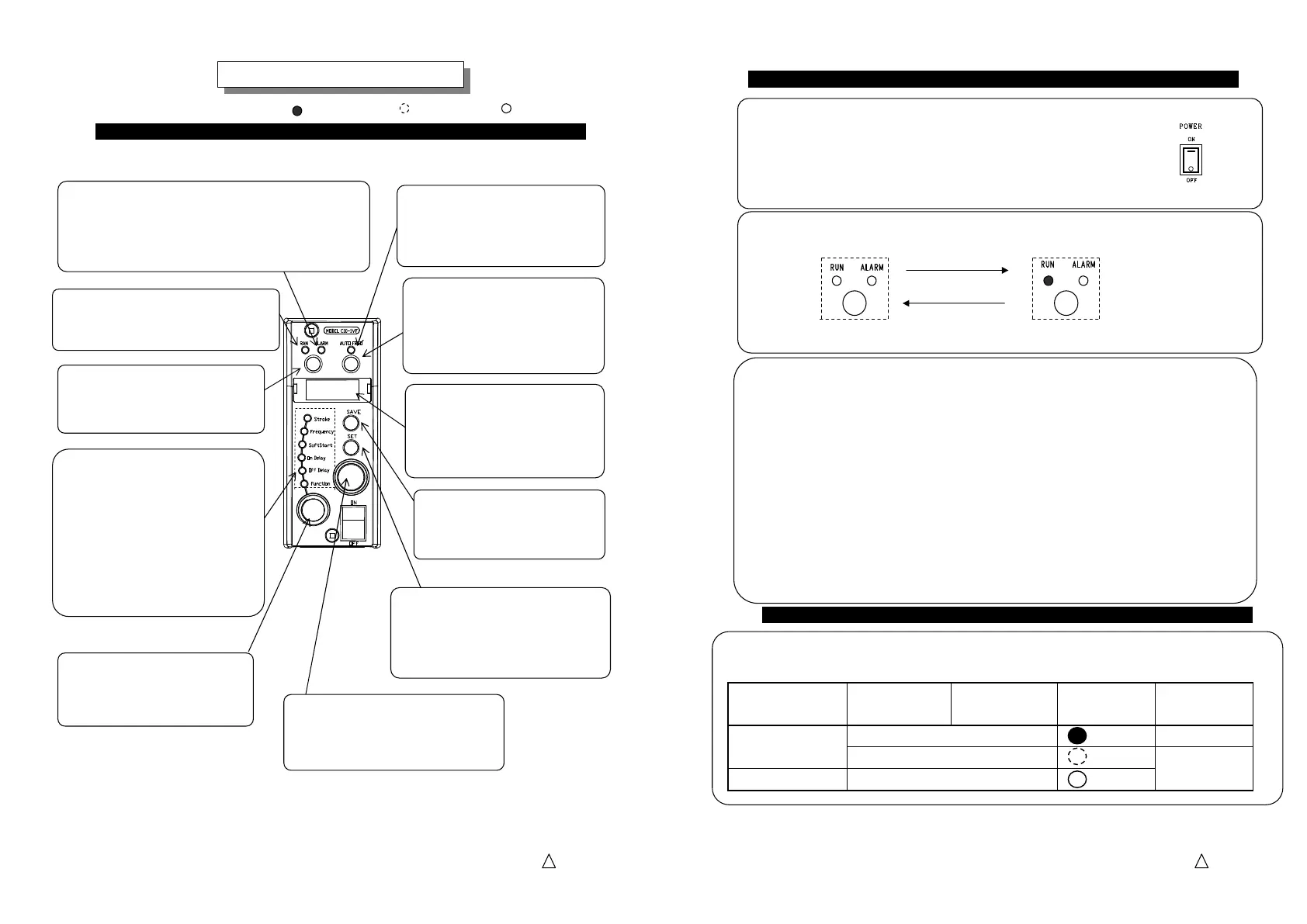

Name and Function of the Buttons, Lamps and Dials on the Control Panel
Name and Function of the Buttons, Lamps and Dials on the Control PanelName and Function of the Buttons, Lamps and Dials on the Control Panel
Name and Function of the Buttons, Lamps and Dials on the Control Panel
: Blinking
5
HTE302172 8/46
6
1. Turn the power switch on.
Then directly the controller is running.
Note: If the function code “rS” for Run/Stop by the panel is set
to “0”the controller is operated by “RUN/STOP” button.
When “RUN” lamp blinks the external operation signal on the terminal “P1” and “P2” or Overflow
sensor is set for stop even if “Run/Stop by Panel” is set for running.
RUN/STOP
External operation
signal “P1” and “P2”
Overflow sensor
“RUN” lamp
Operation
Button
Setting for running
Set for running
Turning on
Running
Set for stopping
Blinking
Stopping
Setting for stopping
Unrelated
Turning off
How to Run and Stop the Partsfeeder
How to Run and Stop the PartsfeederHow to Run and Stop the Partsfeeder
How to Run and Stop the Partsfeeder
a. Estimated cause: The output voltage has been set for “0”.
Remedy: Set the output voltage.
b. Estimated cause: The output drive frequency of C10-controller is off the resonance
frequency of the partsfeeder.
Remedy: Adjust it near to the resonance frequency up to get enough stroke.
c. Estimated cause: C10-controller stops by “Error”.
Remedy: Resolve the error indicated by “ERROR CODE”. See page 40.
If RUN lamp is not turned on or the partsfeeder does not run even if the RUN lamp is
turned on please check the following items.
When the Run lamp is blinking see the next articles.
2. “RUN/STOP” button, when it is pushed, runs and stops the partsfeeder in turn.
Turning on
Turning off
Push
Stopping
Running
Push
Alarm by blinking
Alarm by blinking Alarm by blinking
Alarm by blinking
