Singer 522D - Silicon Oil Reservoir Components

55
High Speed Flat Bed Interlock Sewing Machine | Instruction Manual and Parts List
7.19

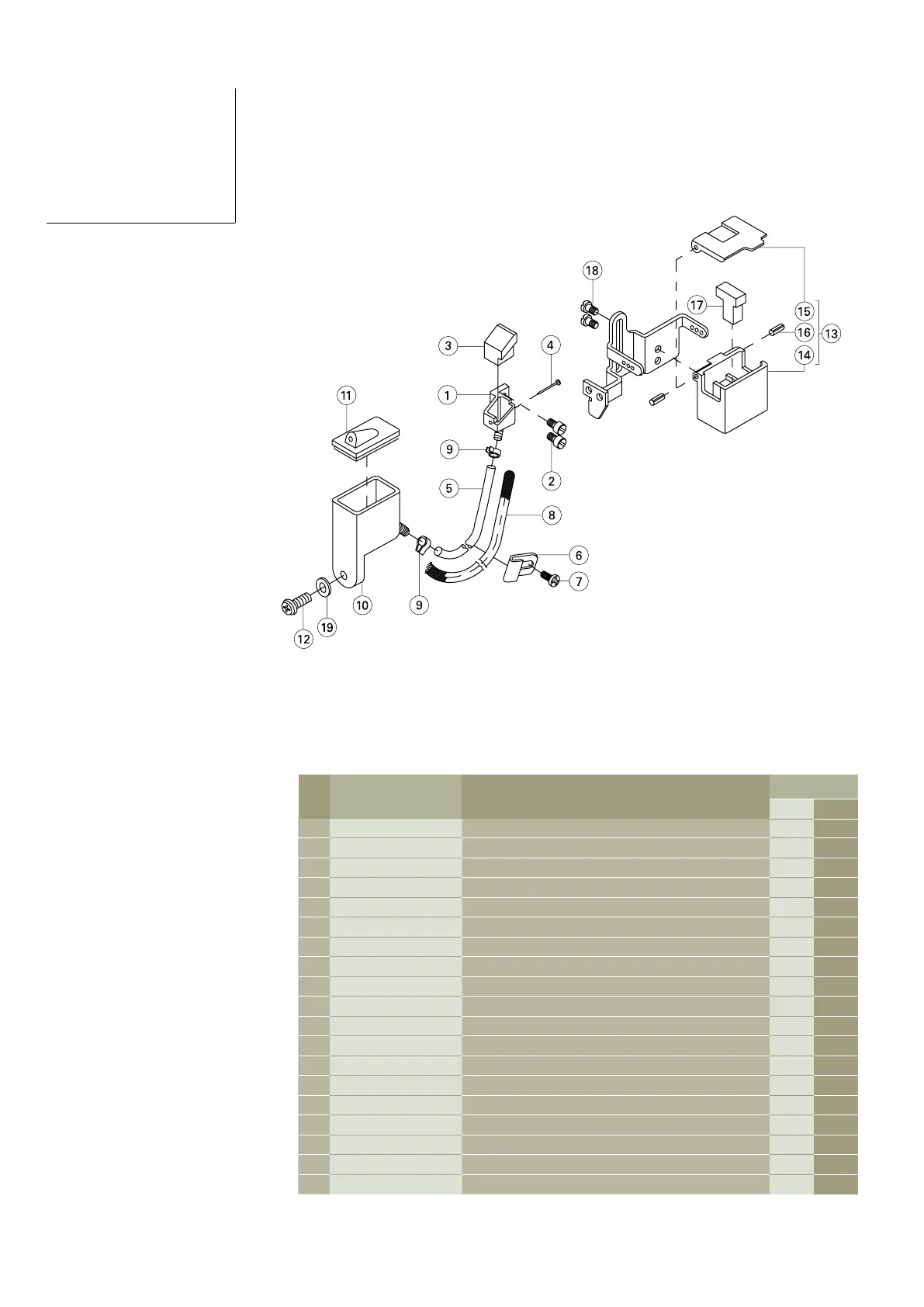

Silicon Oil
Reservoir
Components
1 30101027 1)rewol( relooc eldeeN
2 S01015 Screw M3x5 2
3 30123012 Felt 1
4 30126009 Pin 1
5 30121017 Oil tube 1
6 30127020 Bracket 1
7 S01004 Screw M4x8 1
8 30123015 Oil wick 1
9 30129006 Clamp 2
10 30101026 Silicone oil reservoir (lower) 1
11 30122026 Cap 1
12 S01005 Screw M4x4 1
13 3010102400 Silicone oil reservoir assembly (upper) 1
14 300141 Silicone oil reservoir (upper) 1
15 30112040 Cap 1
16 P03008 Pin 2
17 30123011 Felt 1
18 S01006 Screw M3x4.5 2
19 W01001 Washer 1
No. Part No. Description
Qty.
1
2
1
1
1
1
1
1
2
1
1
1
1
1
1
2
1
2
1
For Clutch
Motor
For ES DD
Motor
