Singer 522D - Oil Pump Components

54
High Speed Flat Bed Interlock Sewing Machine | Instruction Manual and Parts List
7.18

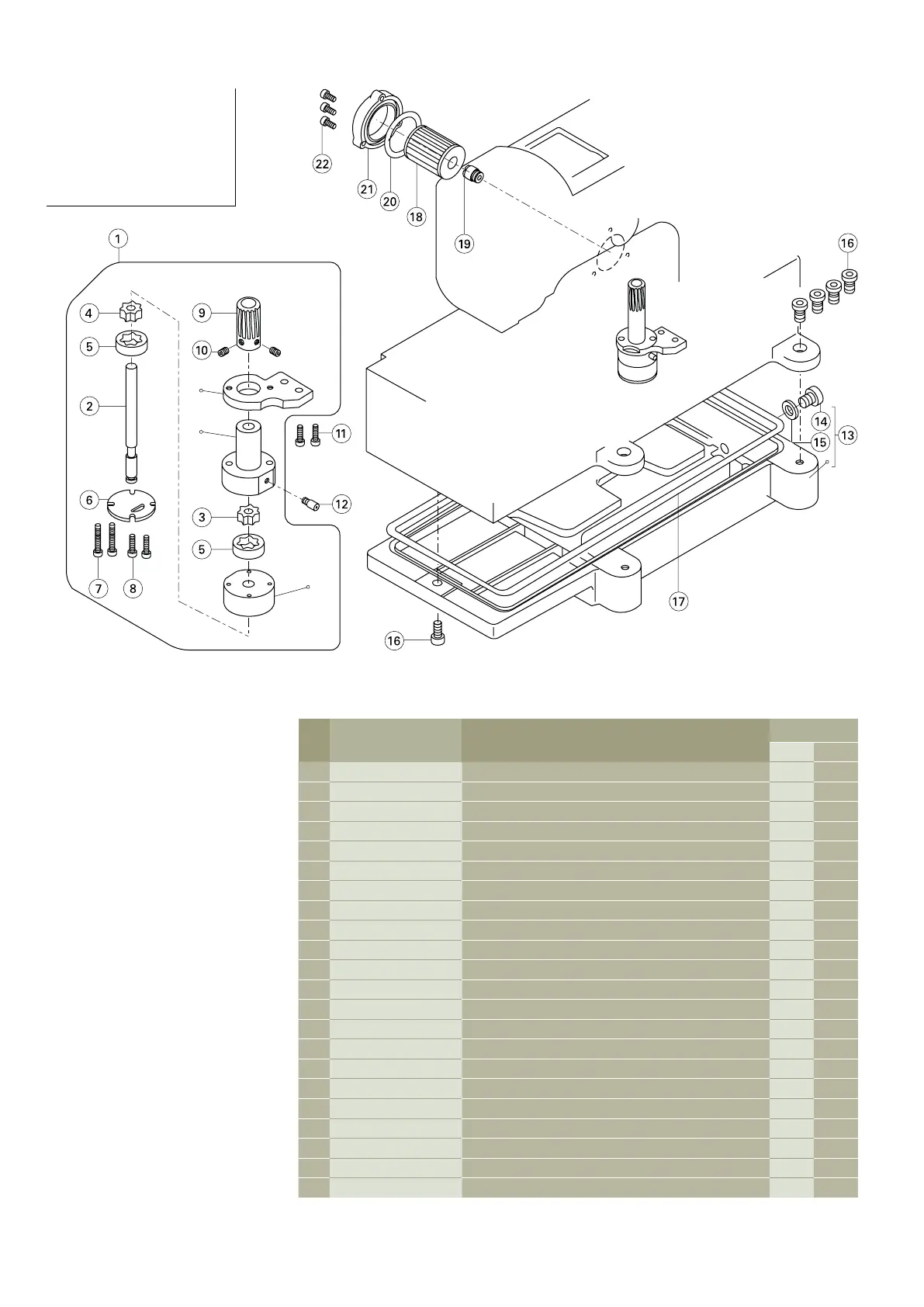

Oil Pump
Components
No. Part No. Description
Qty.
1 3012000190 Oil pump assembly 1
2 30102031 Shaft 1
3 30120004 Rotor 1
4 30120007 Rotor 1
5 30120005 Rotor 2
6 30120008 Cover 1
7 301s20011 Screw 2
8 S05006 Screw M4x25 2
9 30125003 Worm wheel 1
10 S10002 Screw M5x5 2
11 S05004 Screw M5x14 2
12 301S30014 Joint Screw 1
13 30101023 Oil reservoir assembly 1
14 301S11015 Screw 1
15 20528014 Washer 1
16 S05007 Screw M8x20 5
17 30122025 O-ring 1
18 20136001 Filter element 1
19 301S30016 Filter element bracket 1
20 1010 O-ring 38.7x3.55 1
21 300140 Cover 1
22 S01003 Screw M4x12 3
1
1
1
1
2
1
2
2
1
2
2
1
1
1
1
5
1
1
1
1
1
3
For Clutch
Motor
For ES DD
Motor
