Step 4: Remove the drive motor
Remove the two motor mounting screws and slide the motor out.
Remove the terminal block mounting screws and remove the terminal block.
Disconnect the motor wires from the terminal block and remove the drive motor.

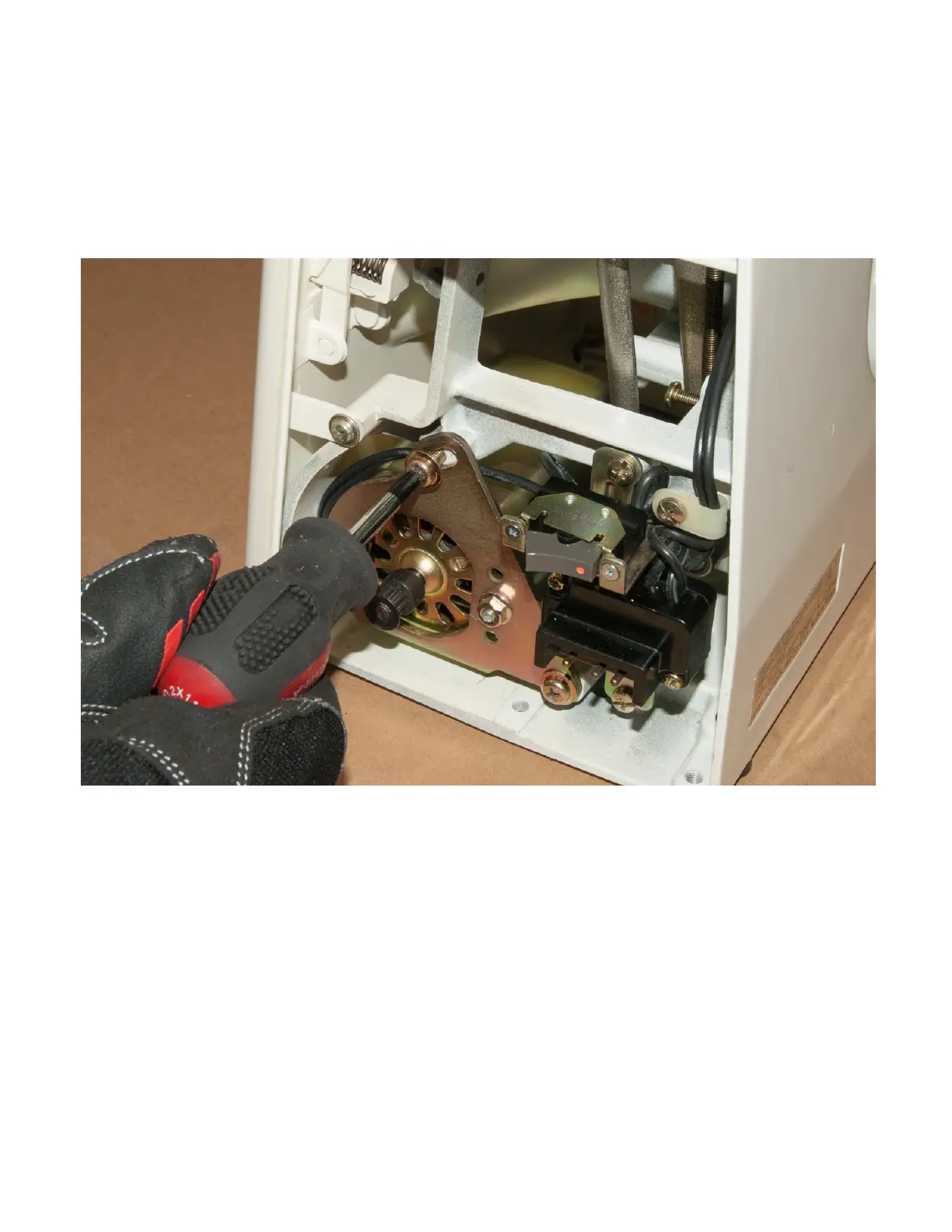

Remove the 2 motor mounting screws.
