Step 5: Install the new drive motor

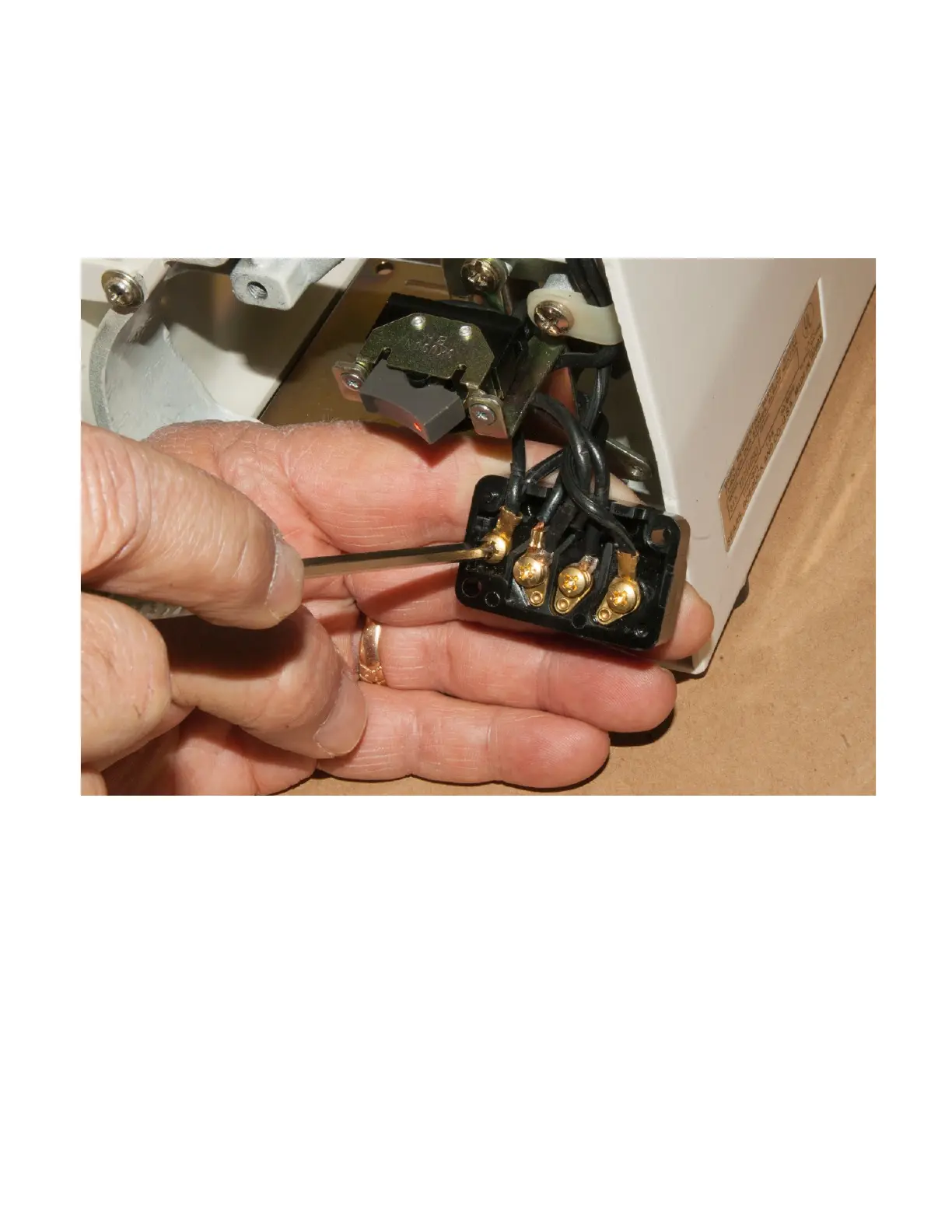

Connect the new motor wires to the terminal block.
Reinstall the terminal block and screws.
Position the new drive motor in the machine and loosely reinstall the motor mounting screws.
Connect the new motor wires.
