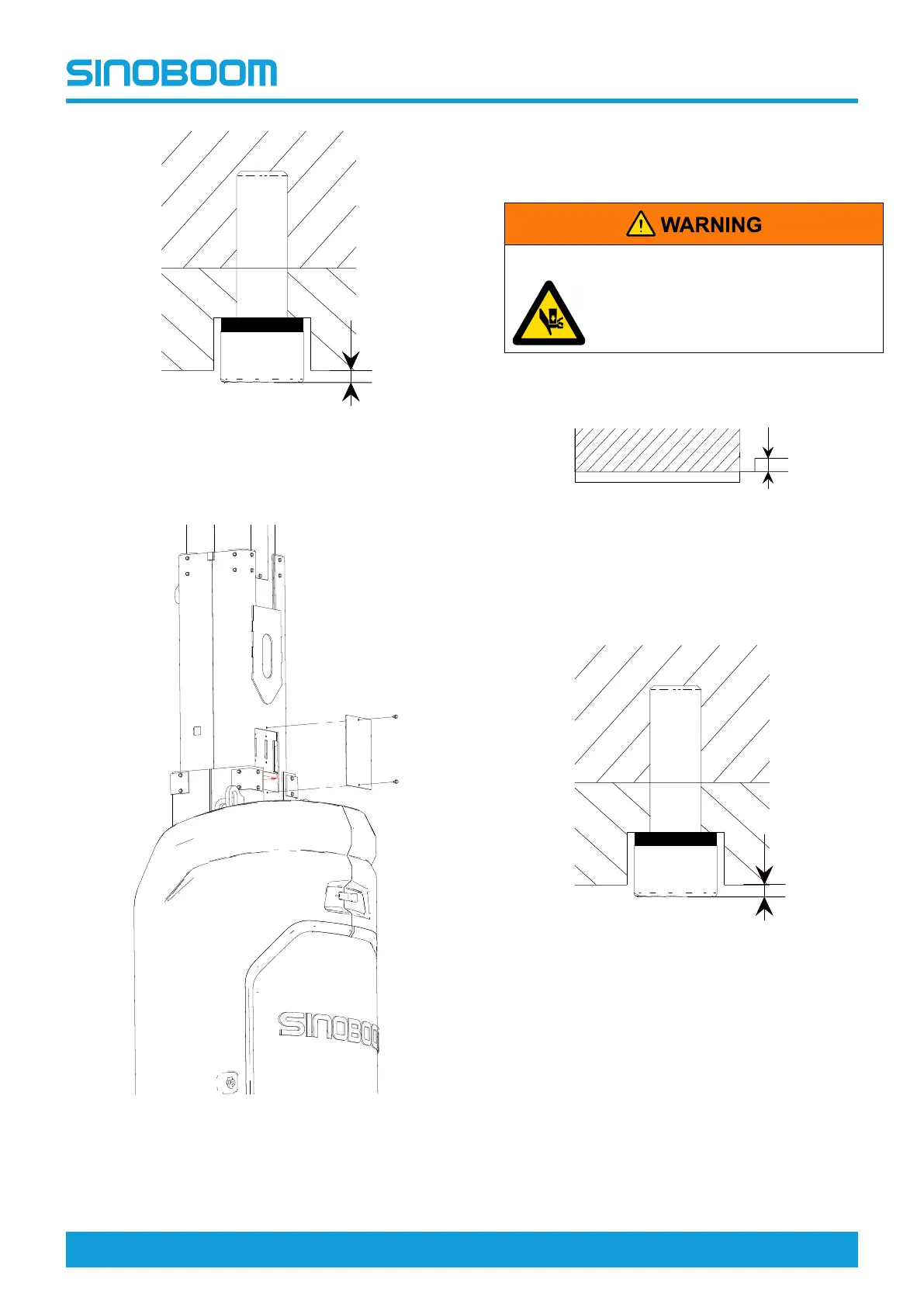

Figure 5-21
3. Inspecting the mast section 2 properly
secured to the bracket
Figure 5-22
1. Start the machine from the ground.
2. Raise the mast approx. 5m (16ft 4in).
3. Remove the cover plate on the front side of mast
section 1.
CRUSH HAZARD
Do not reach your hand and arm
inside the mast.
4. Check the clearance between the mast section 2
and the bracket, ensure no clearance exists, i.e., J=
0.
Figure 5-23
5. Be sure that the mounting bolts are securely
tightened, with all the bolt heads on the same level
with, and not 1.5mm (0.059in) higher than, the
underside of the bracket.
Figure 5-24
Mast wear pads
1. Preparation
