Sinoboom ML10EJ - Hydraulic and Electrical Systems; Function Valves

© Mar. 2022 5-32 GTTZ10EJ Maintenance Manual
MAINTENANCE
HYDRAULIC AND
ELECTRICAL SYSTEMS
Function Valves

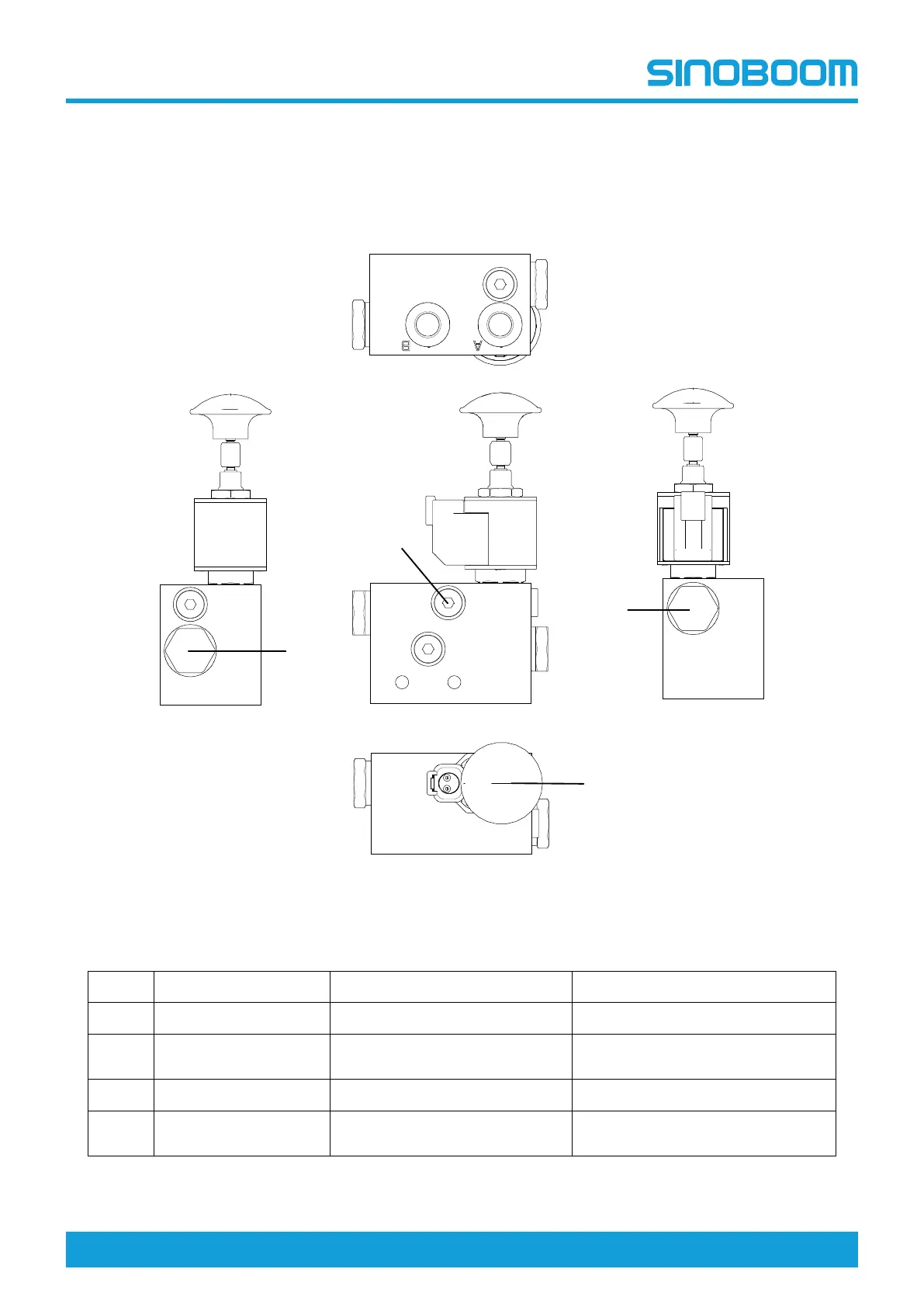

Figure 5-38 Lift control valve (PN.202040003004)
Table 5-11
No. Name Function Torque
1 Solenoid valve To control the lifting direction 27.1Nm (20ft-lb)
2 Check valve To keep the fluid flowing in one
direction
40～45Nm (29.5～33.2ft-lb)
3 Damper \ 4Nm (3ft-lb)
4 Check valve To keep the fluid flowing in one
direction
40～45Nm (29.5～33.2ft-lb)
1
2
3
4
