Sinteck RPU Link - 2-1 Transmitter Front and Rear Panels

2

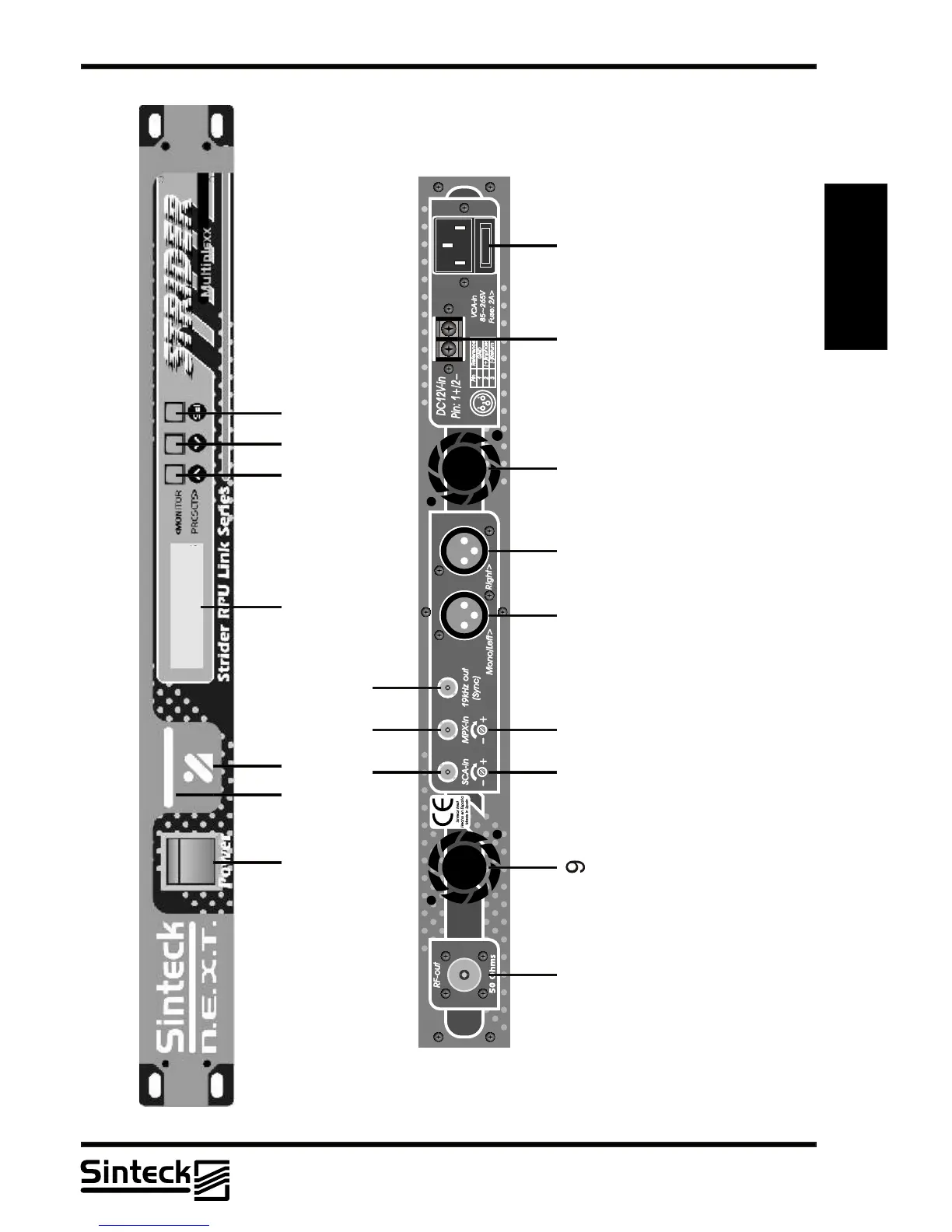

2-1 Front and rear panels - Strider Transmitter Link
Strider Link Series
SRFStrider-161004A-REV.A
Sinteck Sistemas Eletrônicos Ltda.
FUSE
1 2 345 6 7
8
1110 12
13 14 15 16 17 18 19
8 - RF output connector - N type 50 Ohms2- Status Leds:
1st: On power
2nd: PLL locked
3nd: RF ON
4nd: Stereo ON
3 - Remote control sensor (not available) 4 - LCD monitoring display 6 - Down Button 5-UPButton 1- Power On/Off - Key 7 - Select Button
9 - FAN airflow out 10 - Input SCA BNC connector 11 - Input MPX BNC connector 12 - 19kHz output (1VPP) for RDS coders 13 - SCA level adjust (multi-turn trimmer) 14 - MPX level adjust (multi-turn trimmer) 15 - XLR connector - Mono or left signal input 600 ohms 16 - XLR connector - Right signal input 600 ohms
17 - FAN airflow out 18 - Input 12V DC - battery - connector 19 - Power Socket and fuse
02/P/14
