3-10 Quick guide for installation and use - Strider Transmitter Link
Strider Link Series
SRFStrider-161004A-REV.A
Sinteck Sistemas Eletrônicos Ltda.
RF POWER MENU
This view shows to the user the measurements corresponding to the power erogation of the
Strider Transmitter Link:
1) Foward Power (F): direct power measured in percents, 0% corresponds to 0W and 100%
corresponds to 8W.
2) Reflected Power (R): reflected power measured in percents, when 0% correspond to 0W
and 100% 8W.
F~ÛÛÛÛÛÛÛÛÛÛÛMAX
R
00%
3
3

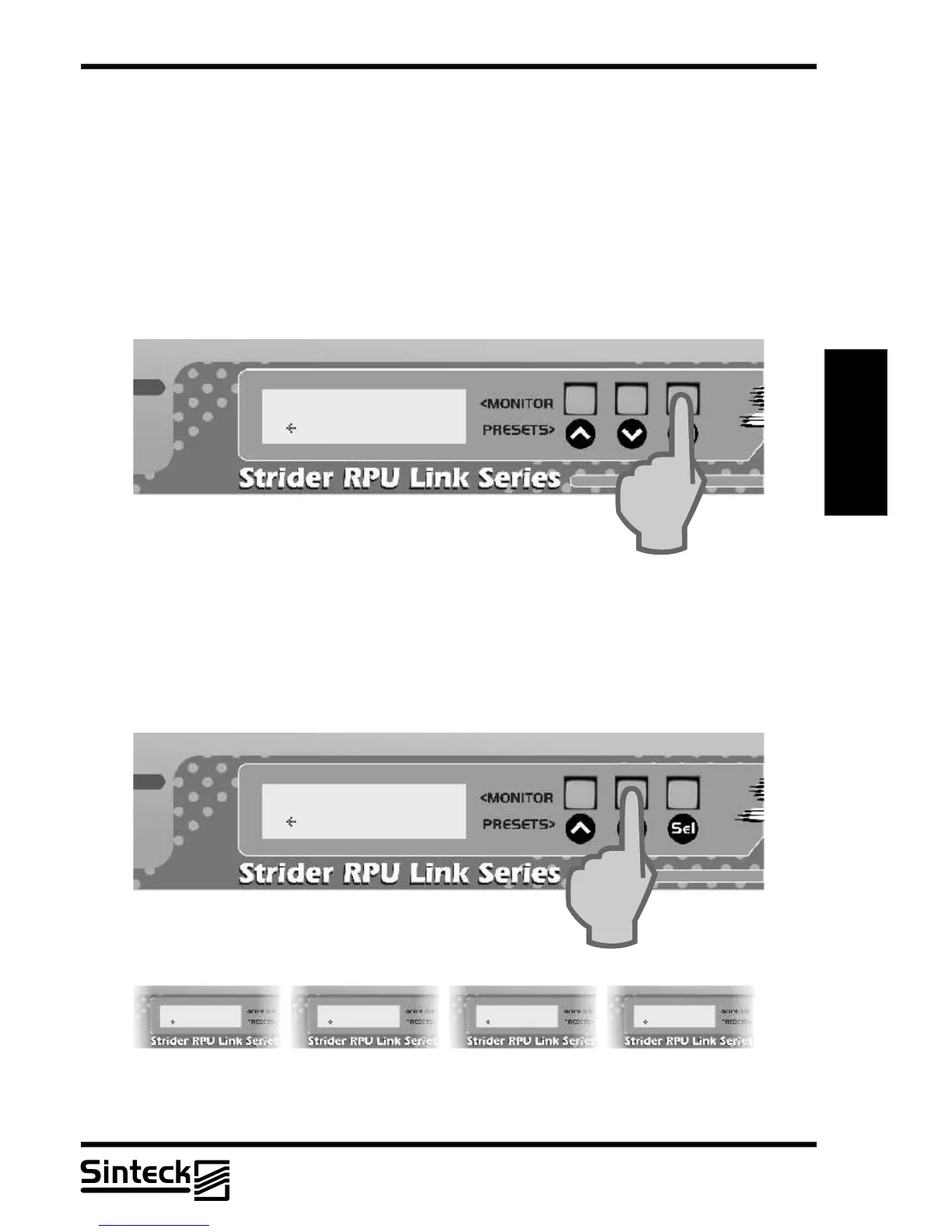

ADJUSTING THE RF POWER
The RF power output of Strider Transmitter Link can be adjusted by the user in steps of
100mW for touch, through the buttons " UP " and " DOWN " is possible to adjust the power
from 0 up to 8W and vice-versa, from 8W to 0W. The following illustrations exemplify this
power adjustment:
F~ÛÛÛÛÛÛÛÛ 80%
R
00%
F~ÛÛÛÛ 40%
R
00%
F~ÛÛÛÛÛÛ 65%
R
00%
F~ÛÛ 25%
R
00%
F~ 00%
R 00%
03/P/29
