Sinteck RPU Link - 2-2 Transmitter Wiring and Internal Overview

2
Strider Link Series
SRFStrider-161004A-REV.A
Sinteck Sistemas Eletrônicos Ltda.
2-2 Wiring and Internal Overview - Strider Transmitter Link
F1
GND
AC
AC
R12
J1
2A
LED
C16
C1
L2
C11
DS2
R5
R8
C19
CI3
C4
C5
C6
C15
R7
C14
D6
L1
VR1
CN1
D3
D4
D2
D1
-+
REV.01
CH2052
VOLTEC
ON
C12
C8
R2
C9
CI1
D
F
S
X
LC
DS1
D7
R4
T1
R9
C18
CI2
D8
C20
R1
D5
C7
C10
NT1
C3
C2
C21
R10
C17
C13
R6
CN2
R11
R3
ON
S2
S1
CLIP
+BAT
VCO
200MHZ - 500MHZ
AUDIO VPLL +10V
GND
RF OUT
AUDIO HI-FI
STEREO/MONO
RIGHT INPUT
STEREO
LEFT INPUT
1
19KHZ
OUT
MPX INSCA IN
VL1
VL2
GND
+12V
LCD
BUZ ST
TEMP
RF OUT
AUDIO PROCESSOR
FILTER 15KHZ 8Th
STEREO GENERATOR
RF
PLL
PLL BLOCK
FWDREF
MOD
SWR
VMOD
19K LEVEL
BAL.
VPA
IPA
VB
+
+ MONO
50uS/75uS
0dB ON
+6dB
+6dB
++
ADJ SCA
ADJ MPX
STRIDER TRANSMITTER
Version 3.1
02/2005
ADJ VPA
C1
C3
C4
C5
C6
C7
C8
C9
C10
C11
C12
C13
XR1
XR2
D1
D1
IND1
U1
DS1
IND2
C16
POT1
R1
R2
XR3
C17
D5
U2
XR4
C19
C21
C22
C23
C24
U3
C25
C26
C27
XR5
XR6
CN1
CN2
CN3
CN4
XR6
XR7
U4
U5
C28
XR8
XR9
XR10
U6
U7
U8
U9
U10
U11
U12
U13
PA1
XR11XR12
C29
C30
C31
C32
C33
C34
C35
C36
C37
C38
C39
F1
DZ2
X1
X2
C40
C41C42C43C44
C45
XR13
XR14
C46
C47
C48
C49
C50
C51
C52
XR15
XR16
XR17
L1
L2
D6
D7
Q2
Q3
Q4
Q5
Q6
Q7
Q8
CV1
D8
D9
DZ3 DZ4
DZ5
D10
DZ6
DZ7
DZ8
D11
D12
D13
D14
D15
D16
D17
D18 D19
CARD1 CARD2 CARD3
DS2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15

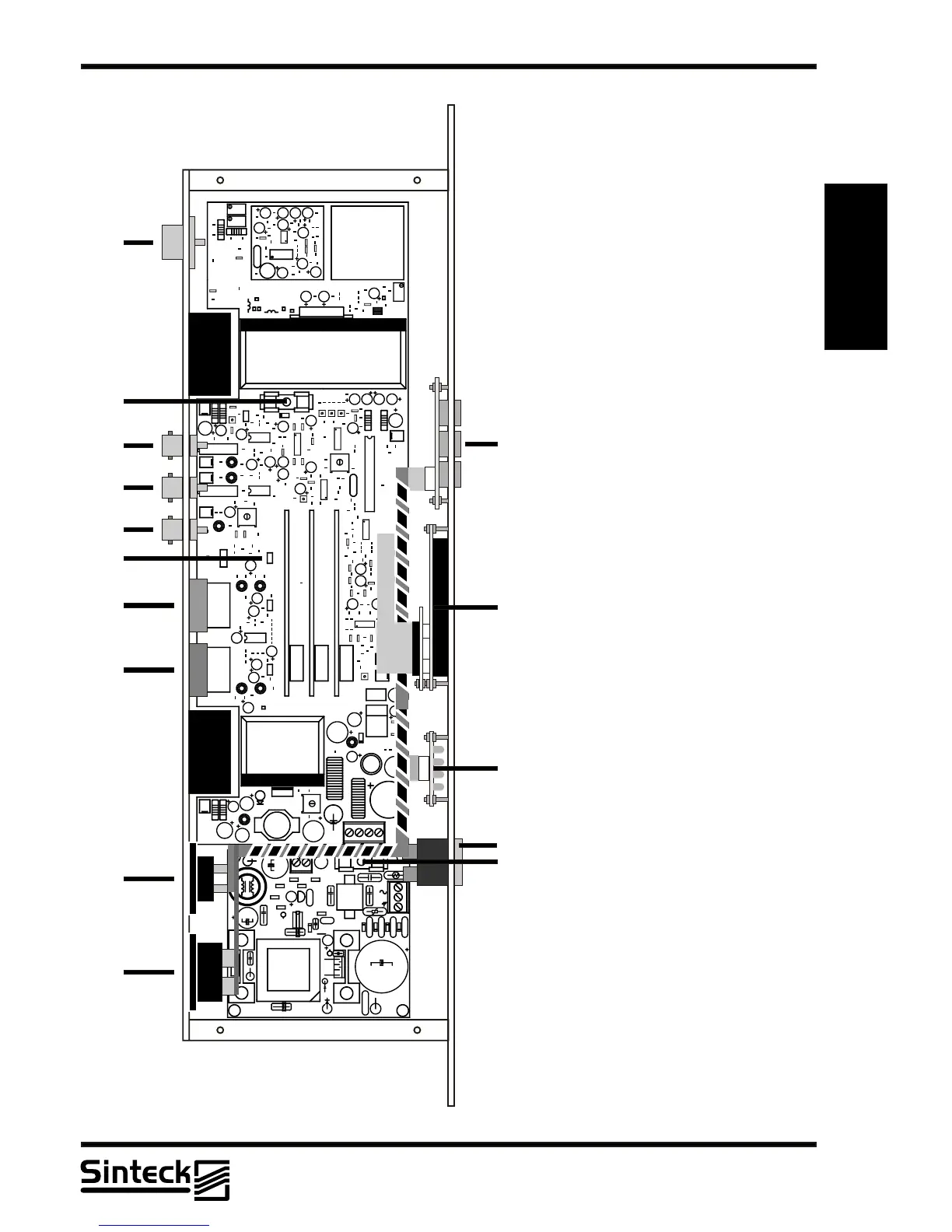

1 - RF output connector
2 - Fuse 4 amps. RF power
module
3 - BNC connector - SCA input
4 - BNC connector - MPX input
5 - BNC connector - 19kHz
sync output
6 - Strider Transmitter Link
main board
7 - XLR connector - Left/mono
input
8 - XLR connector - Right input
9 - DC socket - 12V input
battery
10 - AC socket - input AC
11 - Power supply board - Fuse
2 amps.
12 - Switch ON-OFF
13 - Status Leds
14 - Liquid Crystal Display
15 - Select Buttons
02/P/18
