18
ASSEMBLY INSTRUCTIONS….cont
FIT THE HEAD ONTO THE COLUMN
Danger / Caution: Due to the weight of the head; at least 2 persons are
required to safely fit it to the column.
Note: Ensure that any dust or debris left over from the manufacturing pro-
cess is removed from inside the head and from around the column prior to
fitting them together.

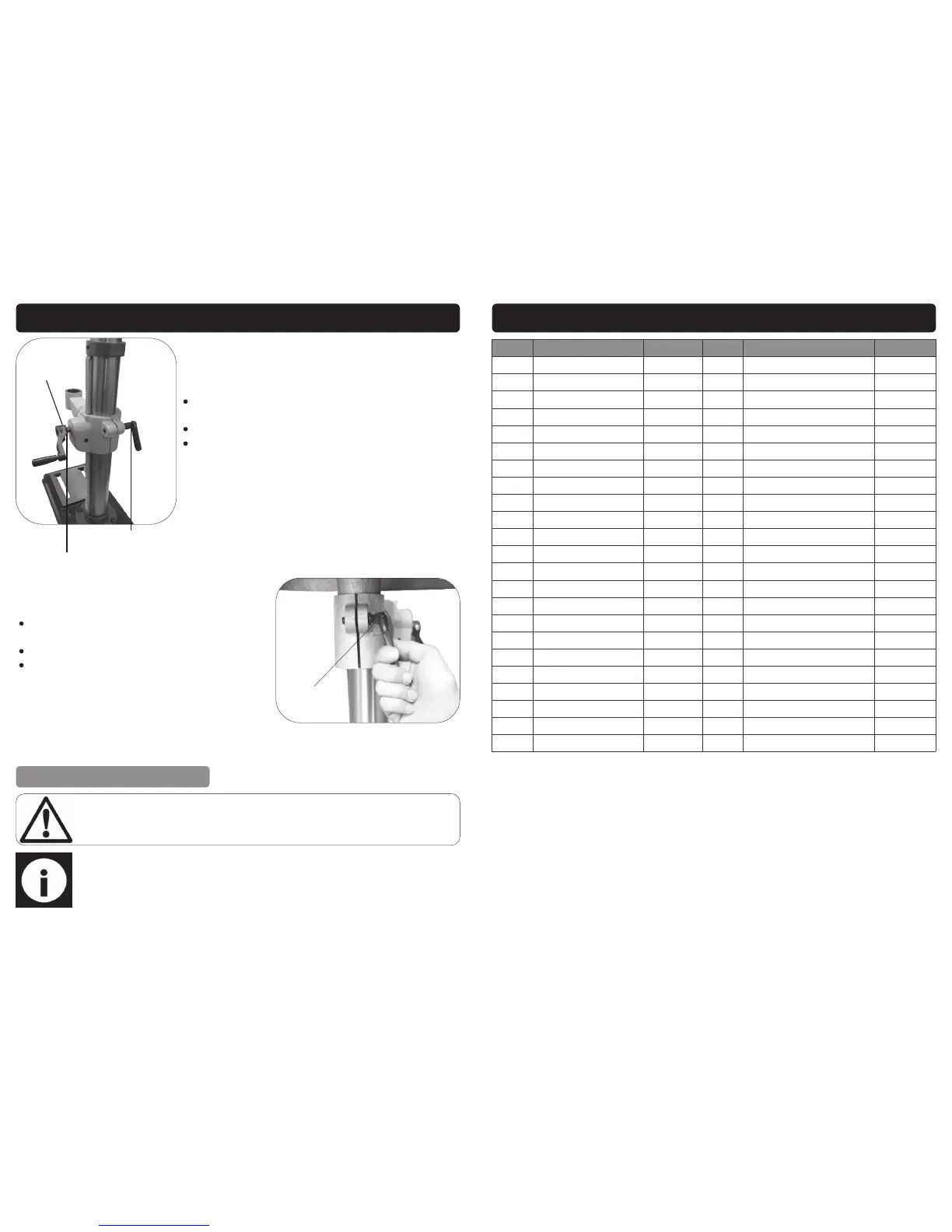

Screw the table lock loosely into the table
support.
Fit the table into the table support.
Tighten the table lock to secure in position
(010).
Secure the table support arm in place by fitting
the table height lock.
Also fit the table height adjust lever as shown left.
Secure in place by tightening the grub screw.
Grub Screw
Table Height Lock
Table Height Adjust
Table Lock
010
009
43
PARTS LIST - 01704….cont
Ref. No. Description SIP Part No. Ref. No. Description SIP Part No.
69. Screw (M5 x 16) WD01-00838 92. Worm gear WD01-00848
70. Mains lead clamp WD01-00700 93. Table support WD01-00849
71. Protecting ring WD01-00839 94. Worm pin WD01-00850
72. Protecting ring WD01-00770 95. Angle label WD01-00851
73. Mains lead WD01-00720 96. Locking handle WD01-00852
74. Mains lead clamp WD01-00700 97. Locking handle WD01-00814
75. Nut M12 x 1.75 WD01-00840 98. Spring washer M16 WD01-00853
76. Tension spring cover WD01-00841 99. Bolt (M16 x 30) WD01-00854
77. Tension spring WD01-00842 100. Table arm WD01-00855
78. Screw WD01-00843 101. Table WD01-00856
79. Casting WD01-00844 102. Circlip WD01-00787
80. Label WD01-00807 103. Bearing 6204 WD01-00857
81. Lock washer WD01-00725 104. Quill WD01-00858
82. Clip WD01-00724 105. Spindle WD01-00859
83. Screw (M4 x 6) WD01-00723 106. Bearing 6201 WD01-00732
84. Switch box WD01-00784 107. Washer WD01-00860
85. Screw (M5 x 12) WD01-00701 108. Arbor MT2 66633
86. Switch WD01-00782 109. Chuck WD01-00789
87. Screw (ST3 x 10) WD01-00845 110. Chuck guard 55mm 07662
88. Crank WD01-00846 111. Hex. Wrench 4mm WD01-00737
89. Bolt (M6 x 10) WD01-00847 112. Hex. Wrench 6mm WD01-00861
90. Circlip WD01-00742 113. Drift key WD01-00862
91. Worm shaft WD01-00810
