(a)
J,////ff@'///M////$///////4
NEEDLE
GAUGE
atm
4.0 mm
Fig 18

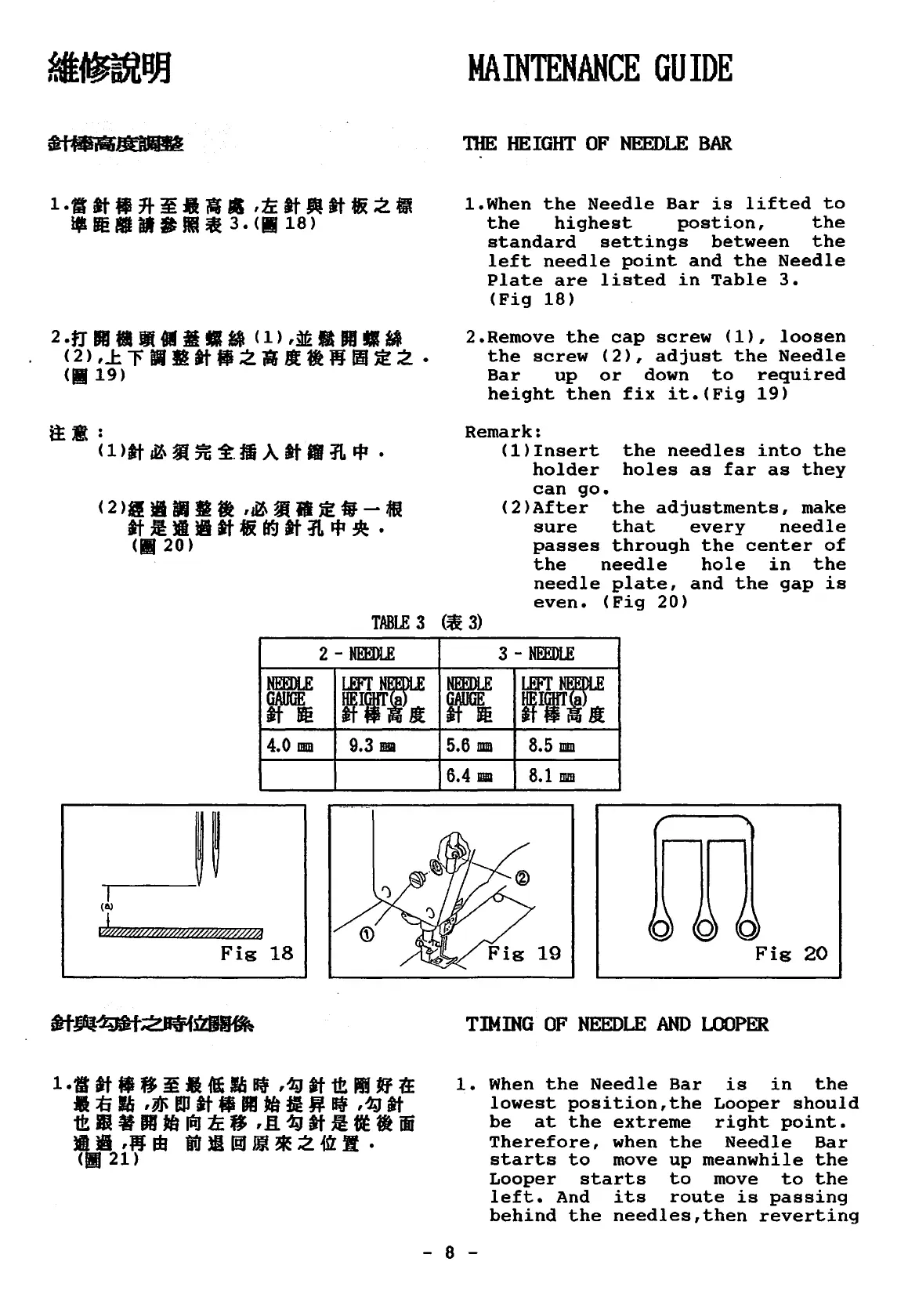

MAINTENANCE GUIDE
niE HEIGHT OF NEEDLE BAR
1.When the Needle Bar is lifted to
the highest postion, the
standard settings between the
left needle point and the Needle
Plate are listed in Table 3.
(Fig 18)
2.Remove the cap screw (1), loosen
the screw (2), adjust the Needle
Bar up or down to required
height then fix it.(Fig 19)
Remark:
(1)Insert the needles into the
holder holes as far as they
can go.
(2)After the adjustments, make
sure that every needle
passes through the center of
the needle hole in the
needle plate, and the gap is
even. (Fig 20)
TABLE 3 (¥i 3)
2- NEEDLE
ftrT.
9.3 BBI
3 -NEEDLE
NEEDLE
ftr1::
GAUGE
atm
5.6 mm 8.5 mm
6.4 IDIIl 8.1 mm
Fig 20
TIMING. OF NEEDLE AND LOOPER
1. When the Needle Bar is in the
lowest position,the Looper should
be at the extreme right point.
Therefore, when the Needle Bar
starts to move up meanwhile the
Looper starts to move to the
left. And its route is passing
behind the needles,then reverting
- 8 -
From the library of: Superior Sewing Machine & Supply LLC
