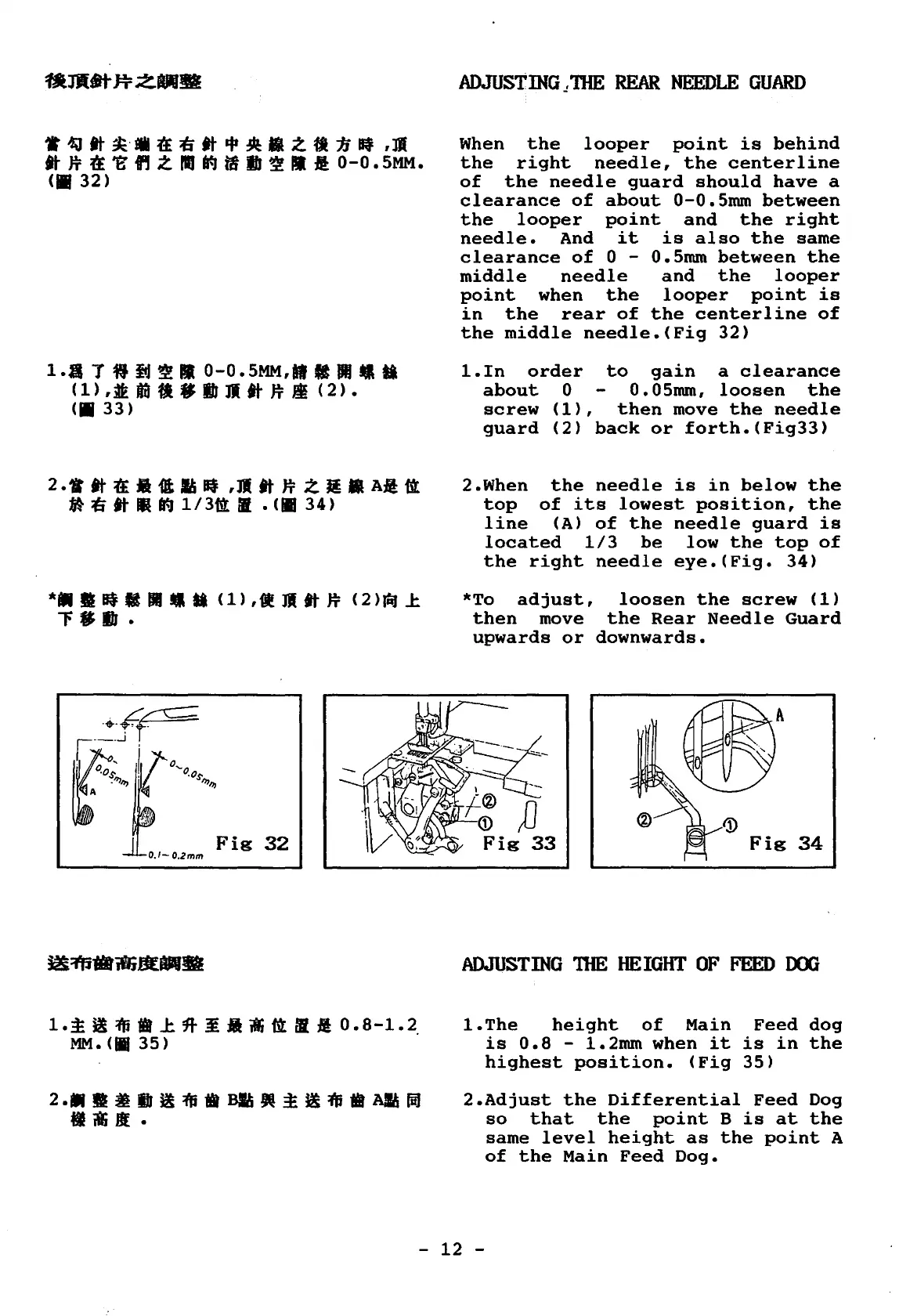

ADJUSTING.!
THE
REAR
NEEDLE
GUARD
When
the
looper
point
is
behind
the
right
needle,
the
centerline
of
the
needle
guard
should
have
a
clearance
of
about
0-0.5mm
between
the
looper
point
and
the
right
needle.
And
it
is
also
the
same
clearance
of
0 - 0.5mm
between
the
middle
needle
and
the
looper
point
when
the
looper
point
is
in
the
rear
of
the
centerline
of
the
middle
needle.(Fig
32)
1.In
order
to
gain
a
clearance
about
0
0.05mm,
loosen
the
screw
(1),
then
move
the
needle
guard
(2)
back
or
forth.(Fig33)
2.When
the
needle
is
in
below
the
top
of
its
lowest
position,
the
line
(A)
of
the
needle
guard
is
located
1/3
be
low
the
top
of
the
right
needle
eye.(Fig.
34)
*To
adjust,
loosen
the
screw
(1)
then
move
the
Rear
Needle
Guard
upwards
or
downwards.
Fig
34
ADJUSTING
THE
HEIGHT
OF
FEED
DOG
1.The
height
of
Main
Feed
dog
is
0.8
-
1.2mm
when
it
is
in
the
highest
position.
(Fig
35)
2.Adjust
the
Differential
Feed
Dog
so
that
the
point
B
is
at
the
same
level
height
as
the
point
A
of
the
Main
Feed
Dog.
-
12
-
