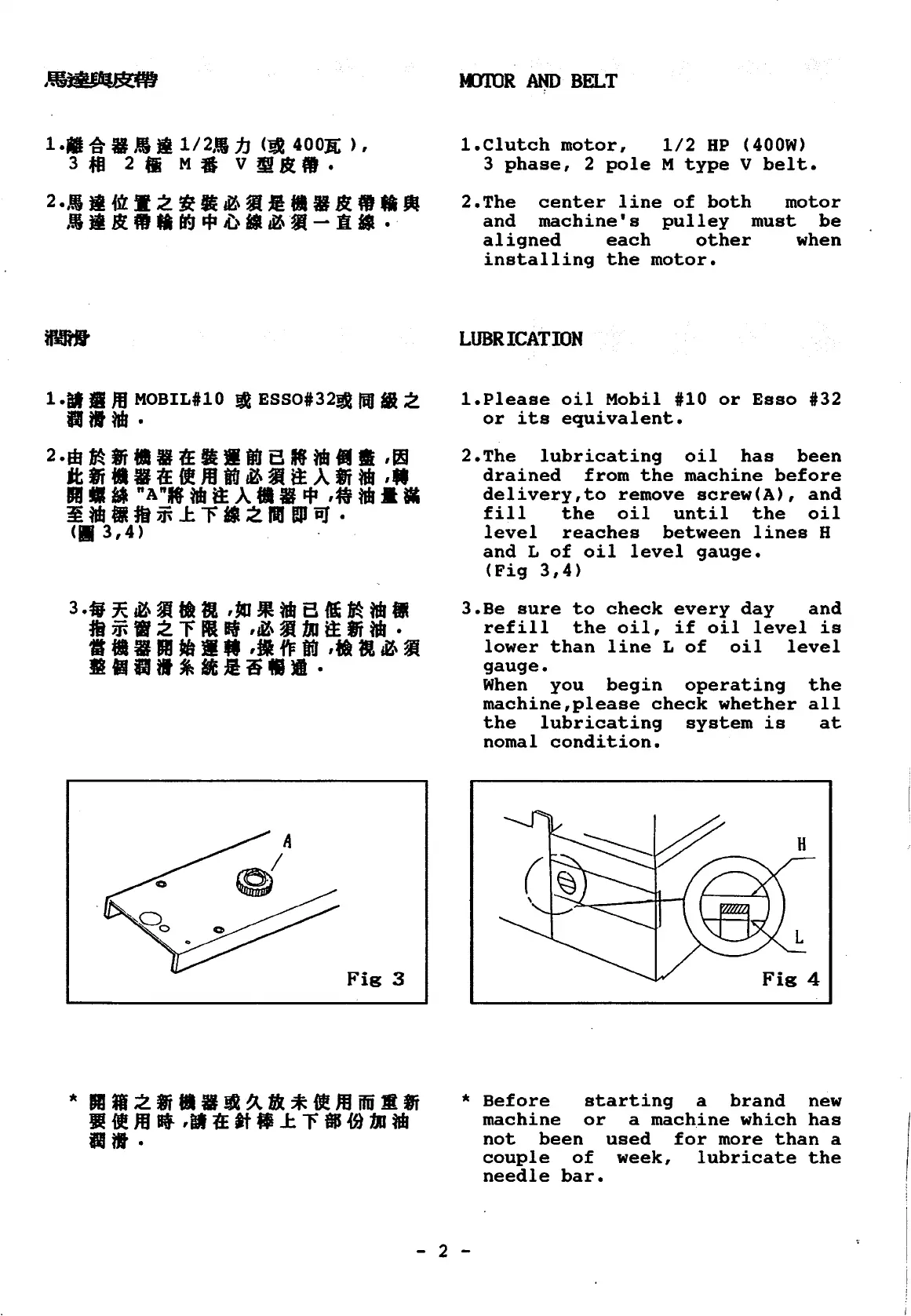

Siruba F007D User Manual

1 •• ~. '". 1/2,'1 jJ (gl 400£ ) ,
3*6 2fi M. VI!Blfl•
2.,15 i1 i2. 2. tc &It:' il II. II Bl M ft Ill
,\lti&:MtateJt:roaa.z·•-•• ..
l.ftl. JU MOBIL#lO !'2 ESS0#32!1fiU ifl 2.
iltlbll·
2.Eif ~ ii 8 U 1£ It II ftiJ B If Nl •• ,mJ
tt li • • 1£ fJ! m tf1 ~ it it .A f1i ~ '"
ll.t.l "A"Ifbllit.AfiiiJt:l ~-~··
~t~~~llttti.J\J:raaznaepiiJ.
(. 3, 4)
Fig 3
tcroR ~BELT
!.Clutch motor, 1/2 HP (400W)
3 phase, 2 pole M type V belt.
2.The center line of both motor
and machine's pulley must be
aligned each other when
installing the motor.
LUBRICATION
!.Please oil Mobil #10 or Esso #32
or its equivalent.
2.The lubricating oil has been
drained from the machine before
delivery,to remove screw(A), and
fill the oil until the oil
level reaches between lines H
and L of oil level gauge.
(Fig 3,4)
3.Be sure to check every day and
refill the oil, if oil level is
lower than line L of oil level
gauge.
When you begin operating the
machine,please check whether all
the lubricating system is at
noma! condition.
Fig 4
* Before starting a brand new
machine or a machine which has
not been used for more than a
couple of week, lubricate the
needle bar.
- 2 -
