ill Mlf Mil. tat < 4 > < 5 > ,~ J: r fJ 1J ~
~ t1 • <II 36 >
Fig 35
•• Iff: <II 37>
l.IIJ-r•• (l)&_J:ii (2)(3).

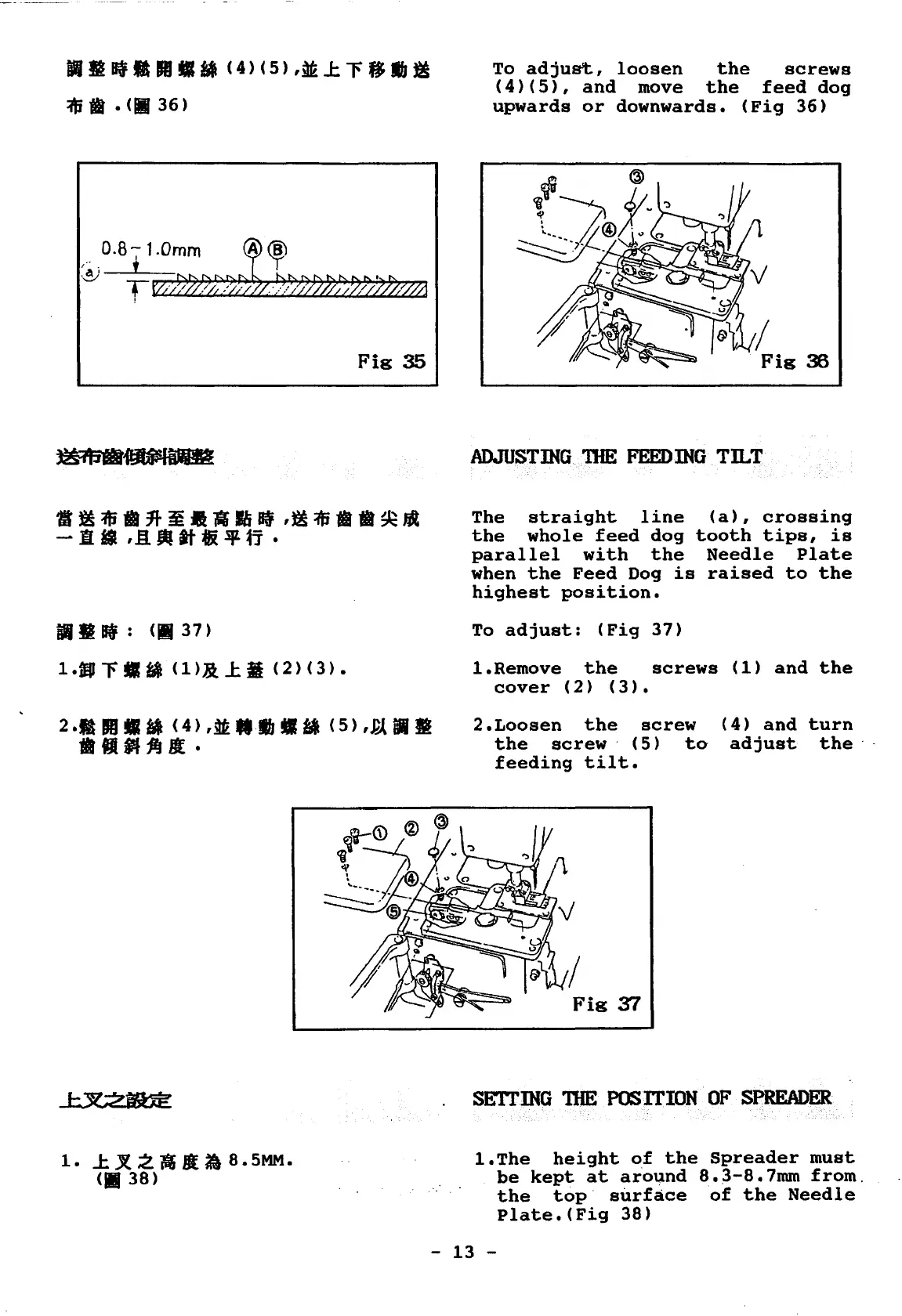

To adjust, loosen the screws
(4)(5), and move the feed dog
upwards or downwards. (Fig 36)
ADJUSTING niE FEEDING TR.T
The straight line (a), crossing
the whole feed dog tooth tips, is
parallel with the Needle Plate
when the Feed Dog is raised to the
highest position.
To adjust: (Fig 37)
!.Remove the screws (1) and the
cover ( 2) ( 3) •
2.Loosen the screw (4) and turn
the screw· (5) to adjust the··
feeding tilt.
Fig :g
SE1TING 11IE POSITION OF SPREADER
l.The height of the Spreader must
be kept at ar.ound 8 •. 3-8. 7mm from.
the top· surface of the Needle
Plate.(Fig 38)
- 13 -
