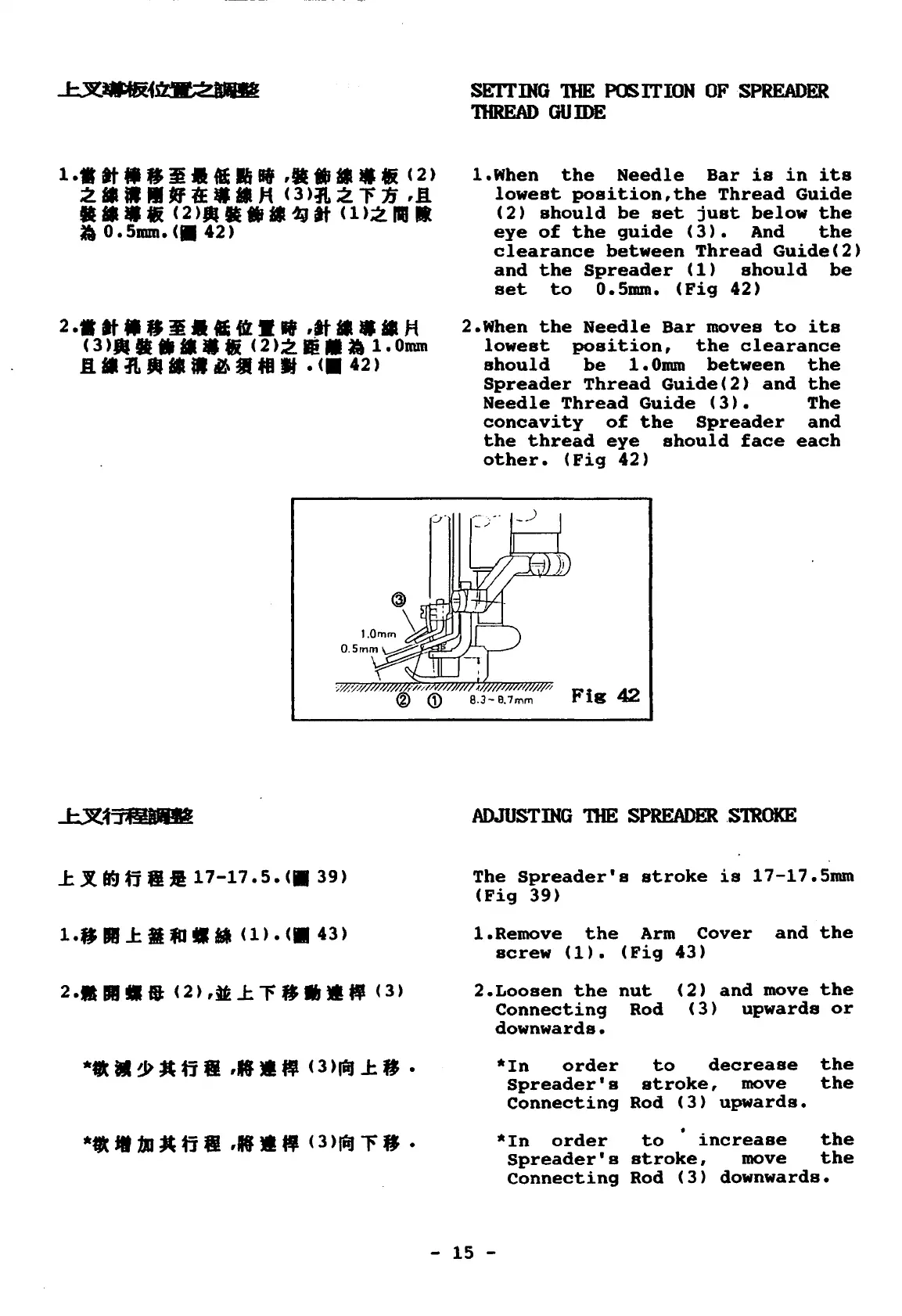

SE'ITING 11IE f(EITION OF SPREADER
'DIREAD GUIDE
l.When the Needle Bar is in its
lowest position,the Thread Guide
(2) should be set just below the
eye of the guide (3). And the
clearance between Thread Guide(2)
and the Spreader (1) should be
set to O.Smm. (Fig 42)
2.When the Needle Bar moves to its
lowest position, the clearance
should be l.Omm between the
Spreader Thread Guide(2) and the
Needle Thread Guide (3). The
concavity of the Spreader and
the thread eye should face each
other. (Fig 42)
,--· •• .#" __ )
_ __,
.(.
8.3- B.7mm
~/ Fis 42
ADJUSTING niE SPREADER .STROKE
The Spreader's stroke is 17-17.5mm
(Fig 39)
!.Remove the Arm Cover and the
screw (1). (Fig 43)
2.Loosen the nut (2) and move the
Connecting Rod (3) upwards or
downwards.
- 15 -
*In order to decrease the
Spreader's stroke, move the
Connecting Rod (3) upwards.
*In order to increase the
Spreader's stroke, move the
Connecting Rod (3) downwards.
