Siruba F007D User Manual

Blfillf:
Cl>.f&lltl~ C4>,MIJJ:Jl.filt¥ <5>,&
UfJ It tJ IJ ( 1) ,~fill~~. , ••
!tl t; C 4) • Cfl • 41)
( 2 ) •1: ;tj tJ JJJ 1: J( ( 1 ) I I! ~ ,. at fi ;2 ~
~8.5MM,~filtll!tiM C3>.
I\
I
r- .\.
~ ~6.1mrn A
W~/M Fig38
8.3-B.7mm
Fig 40

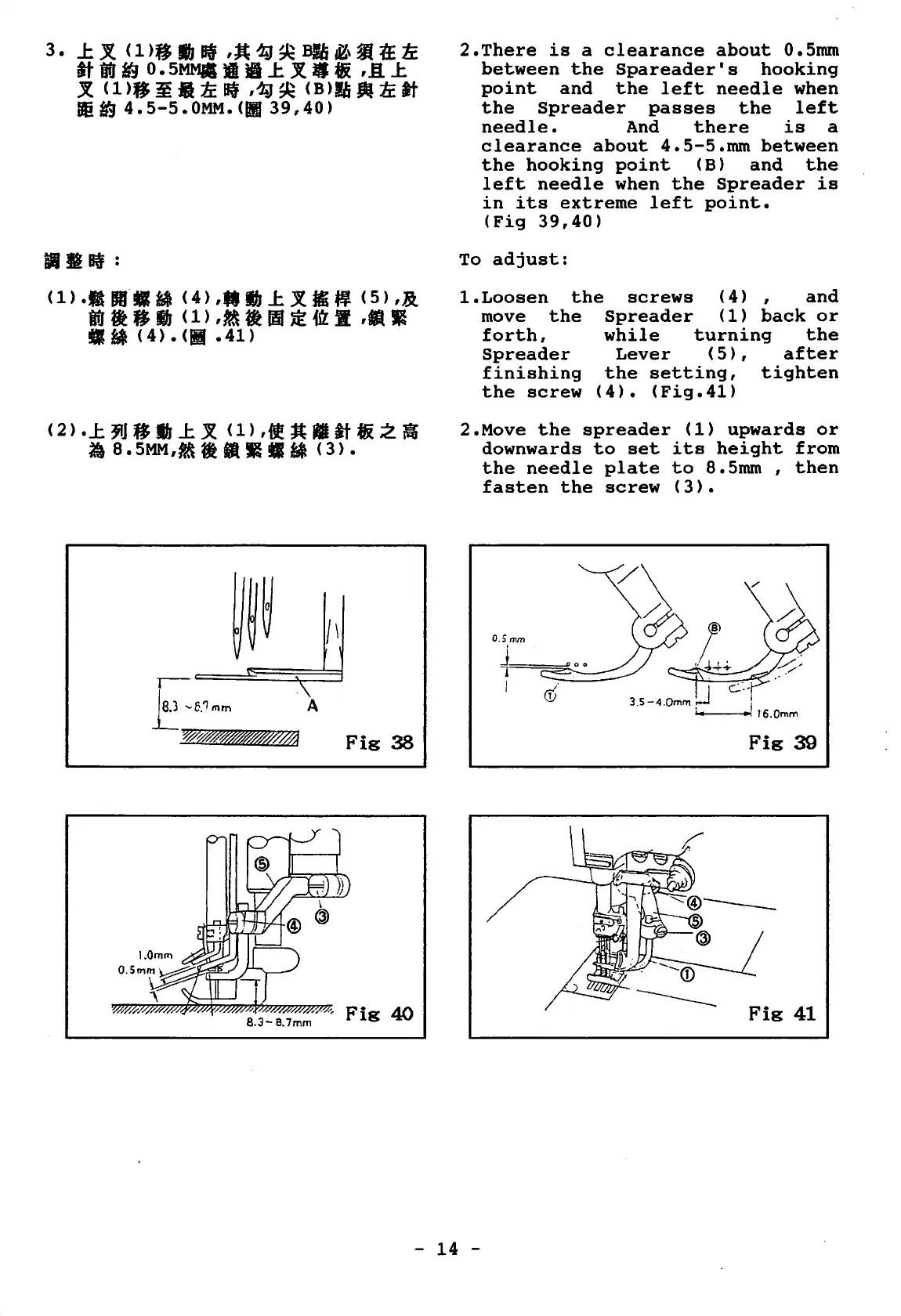

2.There is a clearance about 0.5mm
between the Spareader's hooking
point and the left needle when
the Spreader passes the left
needle. And there is a
clearance about 4.5-5.mm between
the hooking point (B) and the
left needle when the Spreader is
in its extreme left point.
(Fig 39,40)
To adjust:
!.Loosen the screws (4) , and
move the Spreader (1) back or
forth, while turning the
Spreader Lever (5), after
finishing the setting, tighten
the screw (4). (Fig.41)
2.Move the spreader (1) upwards or
downwards to set its height from
the needle plate to 8.5mm , then
fasten the screw (3).
Fig 39
Fig 41
- 14 -
