Siruba F007D User Manual

B ~ -Jt dJ 1 • 2£ 4 • OIDinfll IV II i'! • !I ll -
~at 6-18ft •
3 .a • -a tt m Bf ,JI * • • • If tt 1i lfiJ
• • ; li. z ld ,.~ •
It
NEEDLE)
J Fig 13

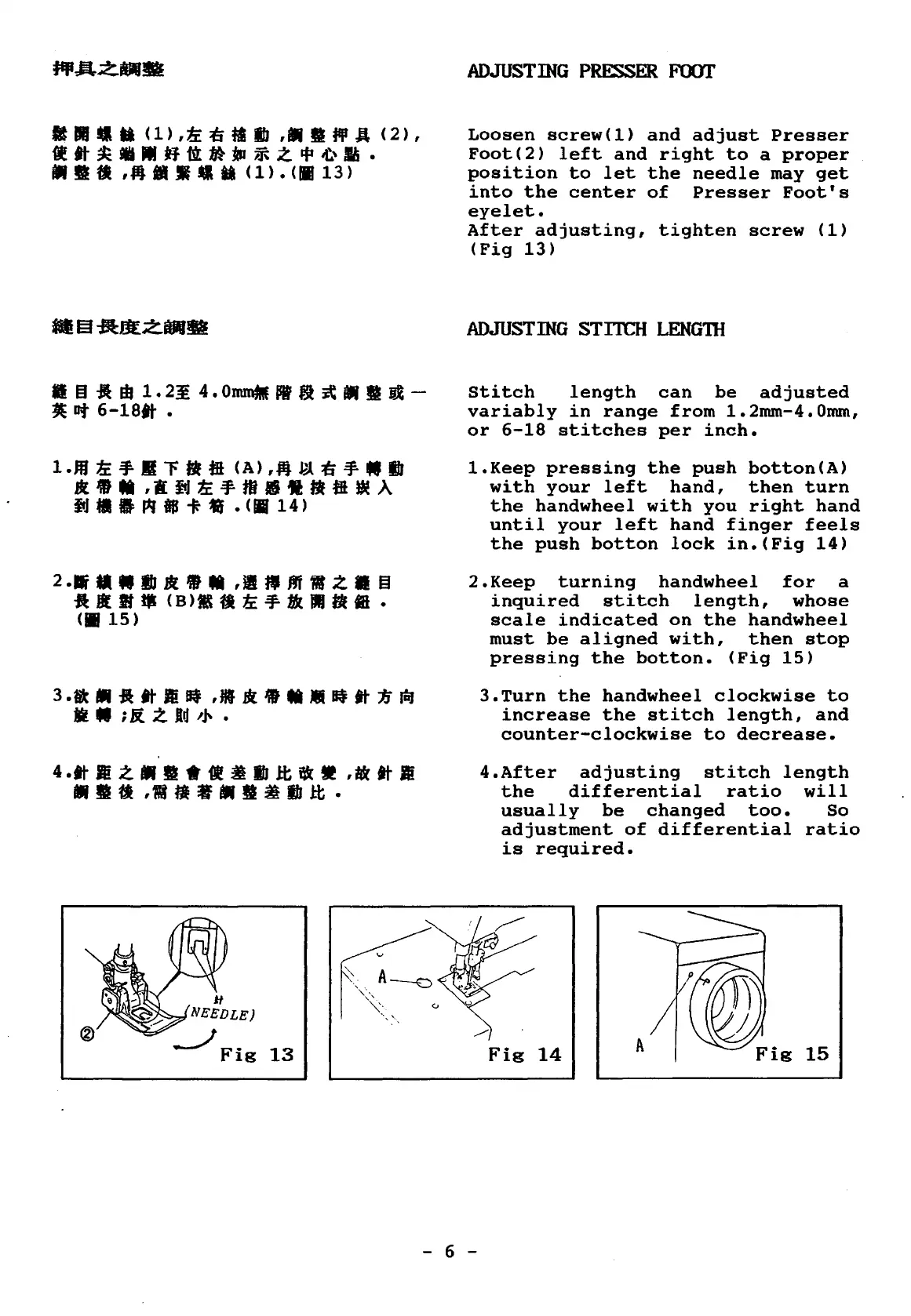

ADJUSTING PRESSER FOOT
Loosen screw(!) and adjust Presser
Foot(2) left and right to a proper
position to let the needle may get
into the center of Presser Foot's
eyelet.
After adjusting, tighten screw (1)
(Fig 13)
ADJUSTING STITCH LENGnl
Stitch length can be adjusted
variably in range from 1.2mm-4.0mm,
or 6-18 stitches per inch.
!.Keep pressing the push botton(A)
with your left hand, then turn
the handwheel with you right hand
until your left hand finger feels
the push botton lock in.(Fig 14)
2.Keep turning handwheel for a
inquired stitch length, whose
scale indicated on the handwheel
must be aligned with, then stop
pressing the botton. (Fig 15)
3.Turn the handwheel clockwise to
increase the stitch length, and
counter-clockwise to decrease.
4.After adjusting stitch length
the differential ratio will
usually be changed too. So
adjustment of differential ratio
is required.
Fig 14
- 6 -
