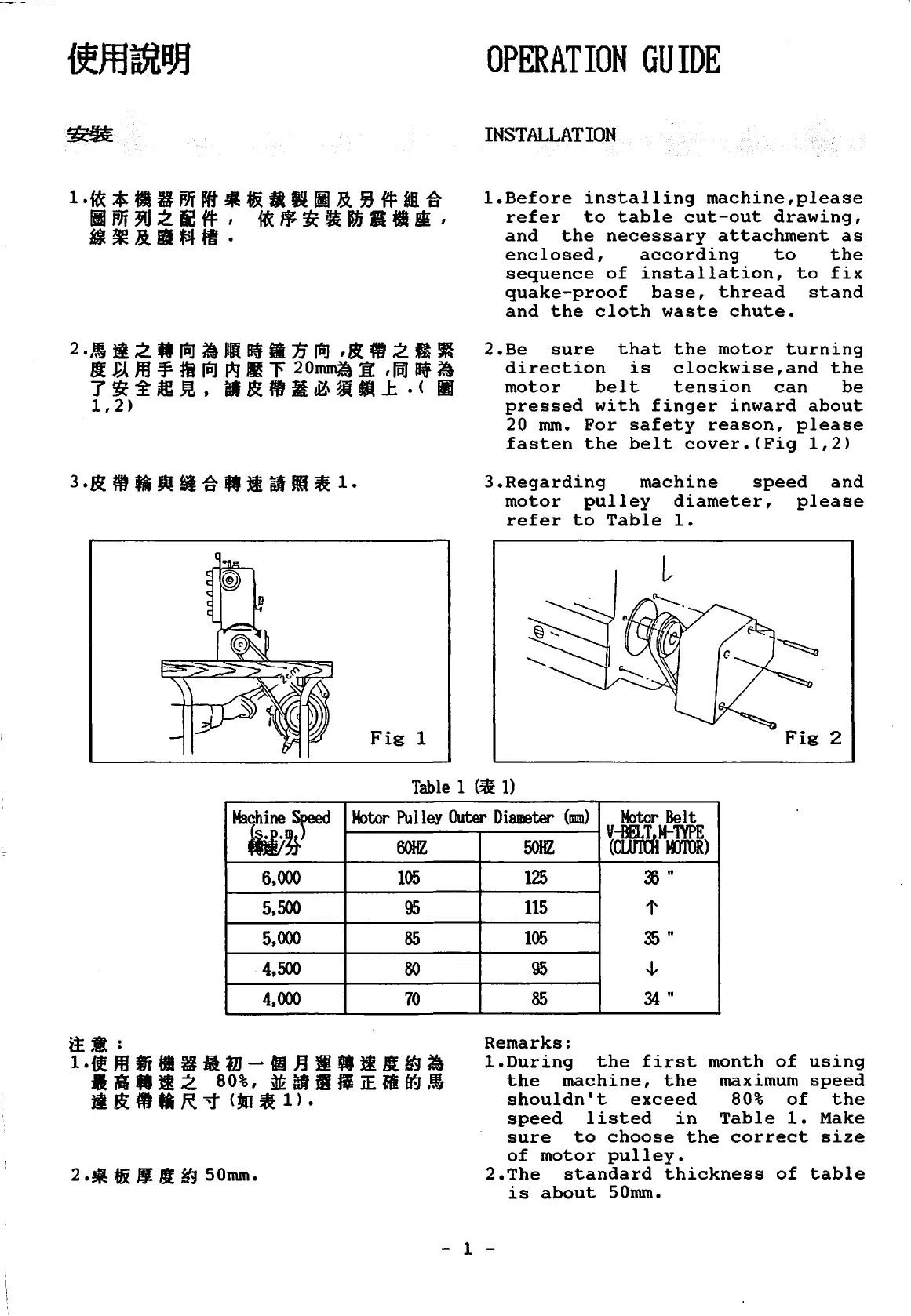

OPERATION GUIDE
INSTALLATION
!.Before installing machine,please
refer to table cut-out drawing,
and the necessary attachment as
enclosed, according to the
sequence of installation, to fix
quake-proof base, thread stand
and the cloth waste chute.
2.Be sure that the motor turning
direction is clockwise,and the
motor belt tension can be
pressed with finger inward about
20 mm. For safety reason, please
fasten the belt cover.(Fig 1,2)
3.Regarding machine speed and
motor pulley diameter, please
refer to Table 1.
Fig 2
Table 1 (~ 1)
Motor Pulley Outer Diameter (mm)
Motor Belt
~~N-,tg)
60HZ
105
95
85
80
70
50HZ
125
l)"
115
t
105
35"
95
~
85
34"
Remarks:
!.During the first month of using
the machine, the maximum speed
shouldn't exceed 80% of the
speed listed in Table 1. Make
sure to choose the correct size
of motor pulley.
2.The standard thickness of table
is about 50mm.
- 1 -
