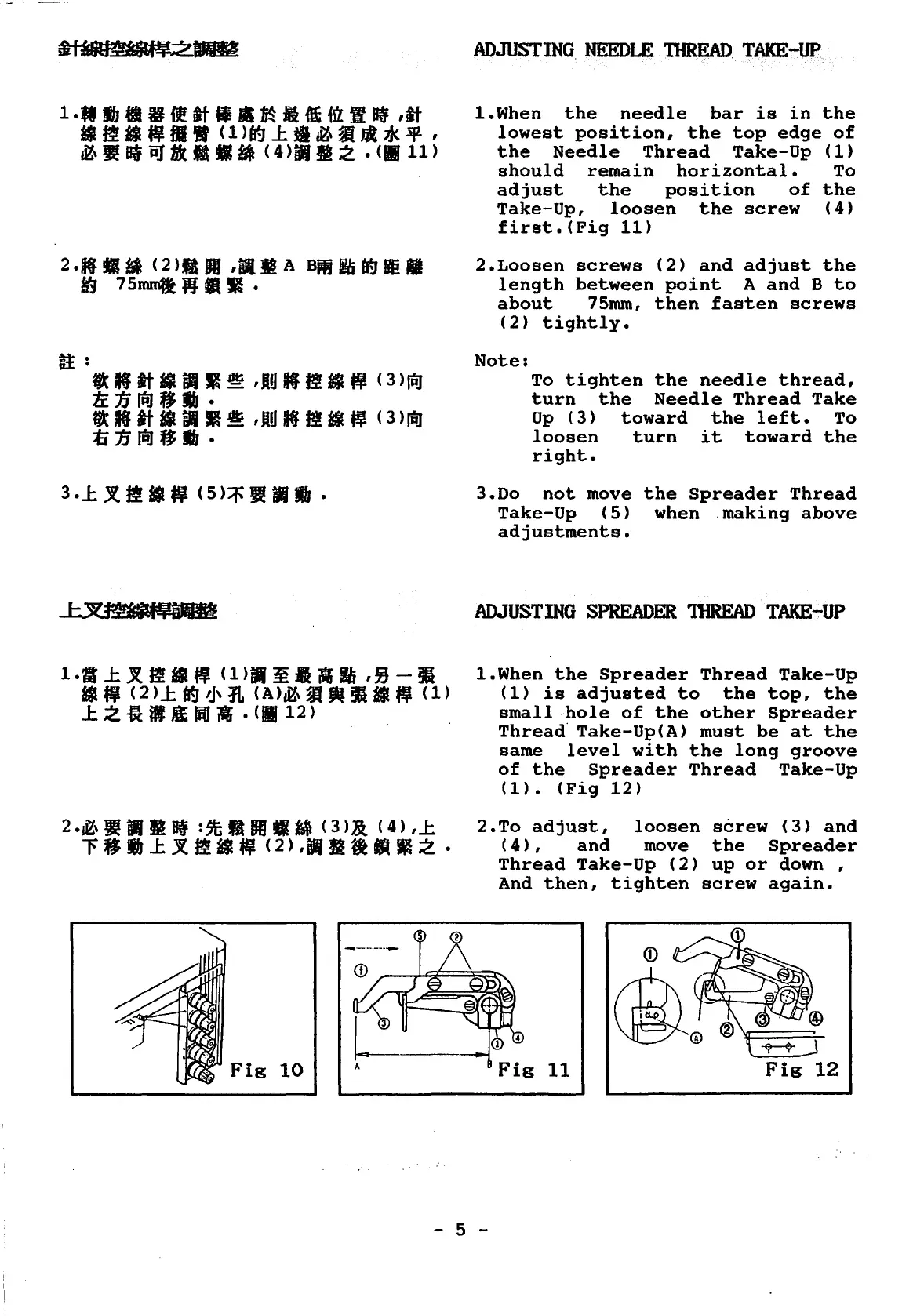

Siruba F007D - Adjusting Needle Thread Take-Up; Adjusting Spreader Thread Take-Up

Fig 10
ADJUSTING. NEEDLE ~- TAKE-UP
1.When the needle bar is in the
lowest position, the top edge of
the Needle Thread Take-Up (1)
should remain horizontal. To
adjust the position of the
Take-Up, loosen the screw (4)
first.(Fig 11)
2.Loosen screws (2) and adjust the
length between point A and B to
about 75mm, then fasten screws
(2) tightly.
Note:
To tighten the needle thread,
turn the Needle Thread Take
Up (3) toward the left. To
loosen turn it toward the
right.
3.Do not move the Spreader Thread
Take-Up (5) when .making above
adjustments.
ADJUSTING SPREADER niREAD TAKE-UP
1.When the Spreader Thread Take-Up
(1) is adjusted to the top, the
small hole of the other Spreader
Thread· Take-Up(A) must be at the
same level with the long groove
of the Spreader Thread Take-Up
(1). (Fig 12)
2.To adjust, loosen screw (3) and
(4), and move the Spreader
Thread Take-Up (2) up or down ,
And
then, tighten screw again.
Fig 11
