Siruba F007D User Manual

TABLE 4
2 -NEEDLE
NEEDLE
DIST~
GAUGE
Be(a 8
ltfti
4.0mm
4.0 - 4.3mm
rA) Fig 25

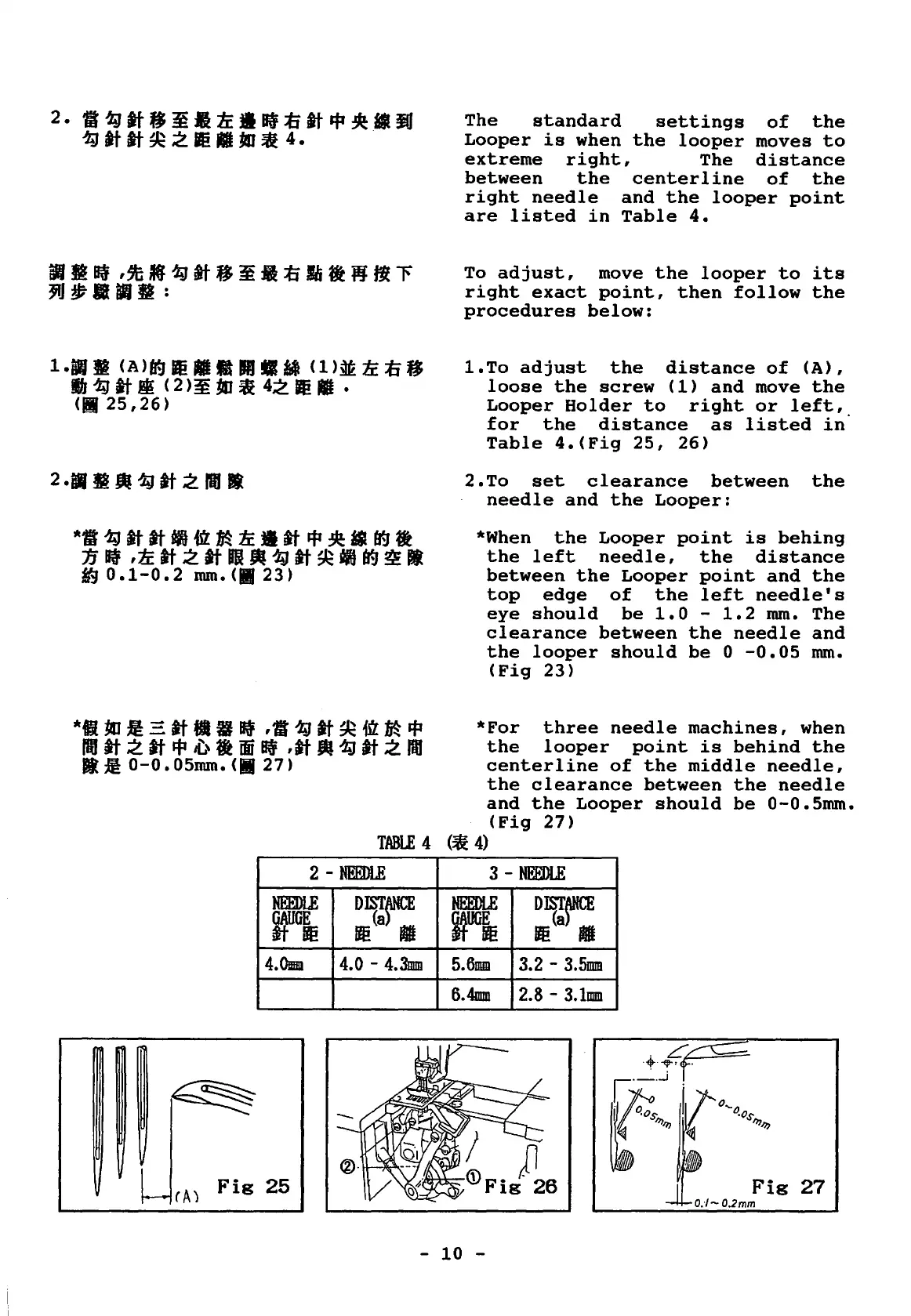

The standard settings of the
Looper is when the looper moves to
extreme right, The distance
between the centerline of the
right needle and the looper point
are listed in Table 4.
To adjust, move the looper to its
right exact point, then follow the
procedures below:
1.To adjust the distance of (A),
loose the screw (1) and move the
Looper Holder to right or left,
for the distance as listed in·
Table 4.(Fig 25, 26)
2.To set clearance between the
needle and the Looper:
*When the Looper point is behing
the left needle, the distance
between the Looper point and the
top edge of the left needle's
eye should be 1.0 - 1.2 mm. The
clearance between the needle and
the looper should be 0 -0.05 mm.
(Fig 23)
*For three needle machines, when
the looper point is behind the
centerline of the middle needle,
the clearance between the needle
and the Looper should be 0-0.5mm.
(Fig 27)
(¥& 4)
3- NEEDLE
NEEDLE
~~~
ifUGjg
5.6mm
3.2 - 3.5mm
6.4mm
2.8 - 3.1mm
Fig 27
O:I-0.2mm
- 10 -
From the library of: Superior Sewing Machine & Supply LLC
