7.2 SKF Maxilube changeover valve unit
The changeover valve unit includes a solenoid valve group (4) and a control valve group (2), pressure gauges
(7) and a fixing plate which contains a bracket for the pump during the changing of the barrel. The Maxilube
pumping centre includes a user interface (5) and a circuit board (3).
Item Description
1
Control valve
2
CHV-100 control cartridge (1 or 2 pcs)
3
Circuit board ST105A
4
Solenoid valve 24 V
5
User interface IF-105
6
Power supply 115/230VAC
7
Pressure gauge

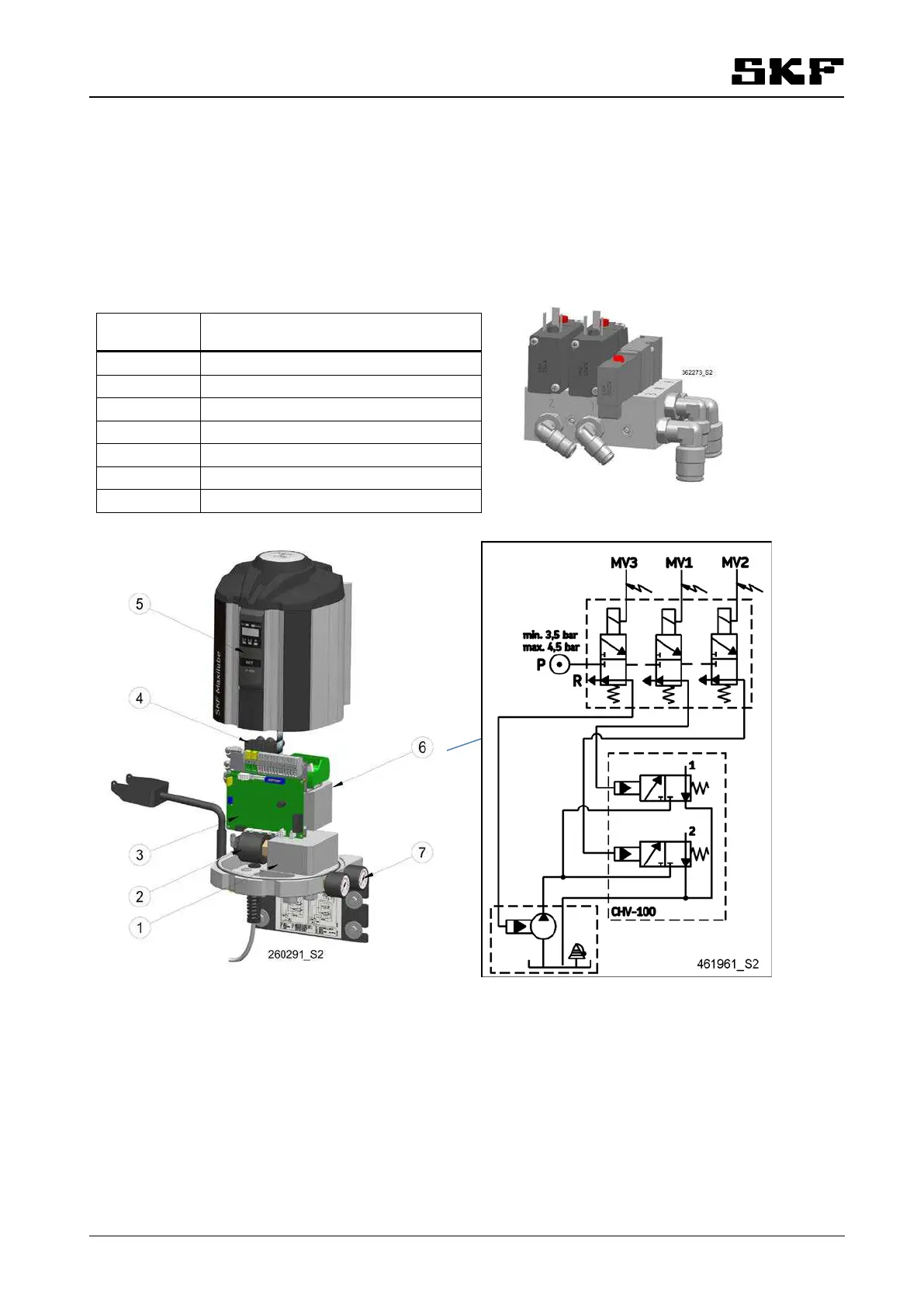

Figure 2: Construction & PI diagram of Maxilube
P
R
MV3
MV2 MV1
