SKF TKTI 21 User Manual

17
SKF TKTI 21 & 31

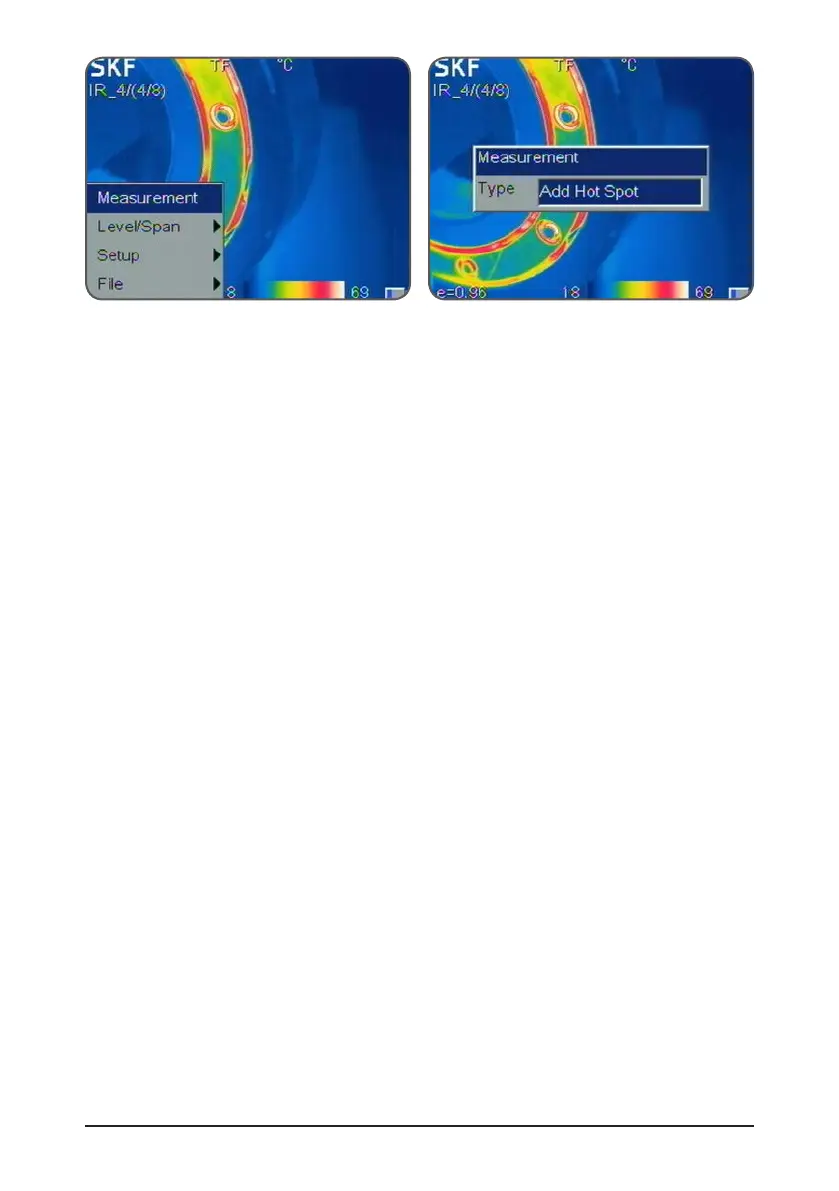

Figure 16 Measurement options
The Measurement dialog box will be displayed.
• Toggle through the options and press the Okay button to select the required item or
the C button to cancel.
The available options are:
• None – Deletes all measurements from the screen.
• Add Hot Spot – adds a moving cursor that automatically displays the hottest spot in
the image. Designated by SH and +H.
• Add Cold Spot – adds a moving cursor that automatically displays the coldest spot in
the image. Designated by SL and +L.
• Add Spot – adds up to 2 fixed cursors, user adjustable by the cursor editing mode.
Designated by S1, +1 and S2, +2.
A temperature profile is a histogram showing the temperature values through a
cross-section of the scene.
The horizontal or vertical cross-section can be moved by the user.
• Horizontal – Adds horizontal line measurement to display profile of temperatures
along the line. Designated by LH.
• Vertical – Adds vertical line measurement to display profile of temperature along the
vertical line. Designated by LV.
Note:
Either Horizontal or Vertical can be enabled at a time.
• Area – adds up to 3 area boxes, with min, max or average temperature displayed for
each box. Areas can be sized and moved by the user.
Note:
To delete a single object, press A button to select the object and then press C button to
delete.
The emissivity will be set to the global emissivity when the cursors are added.
The emissivity of each cursor can be individually adjusted.
