SKF TKTI 21 & 31
3.4.1 On/Off Button
See 3.2 Switching On the camera
3.4.2 A button
The A button has two functions.
1) The first function is the modification of selected parameters.
Press the A button successively to be able to change the parameters of the different
cursors, areas, lines, colour palettes and span/level setting shown on the screen.
When an element is selected, it will be highlighted in yellow to show it is active.
It will remain active for 2 seconds.
Clicking on the A button one more time will highlight the last active element.
Measurement cursors, lines and areas
• Pressing the Menu button will pop up the element settings box.
• Pressing the Okay button will save the settings and close the settings box.
• Pressing the C button when the settings box is shown will close the box without
saving the settings.
• Use the navigation pad buttons to move the cursors and lines
• In the area settings box, the user can select to adjust either the position or the size
of the area.
• Use the navigation pad buttons to adjust the selected area.
• Use the C button to delete the selected elements.

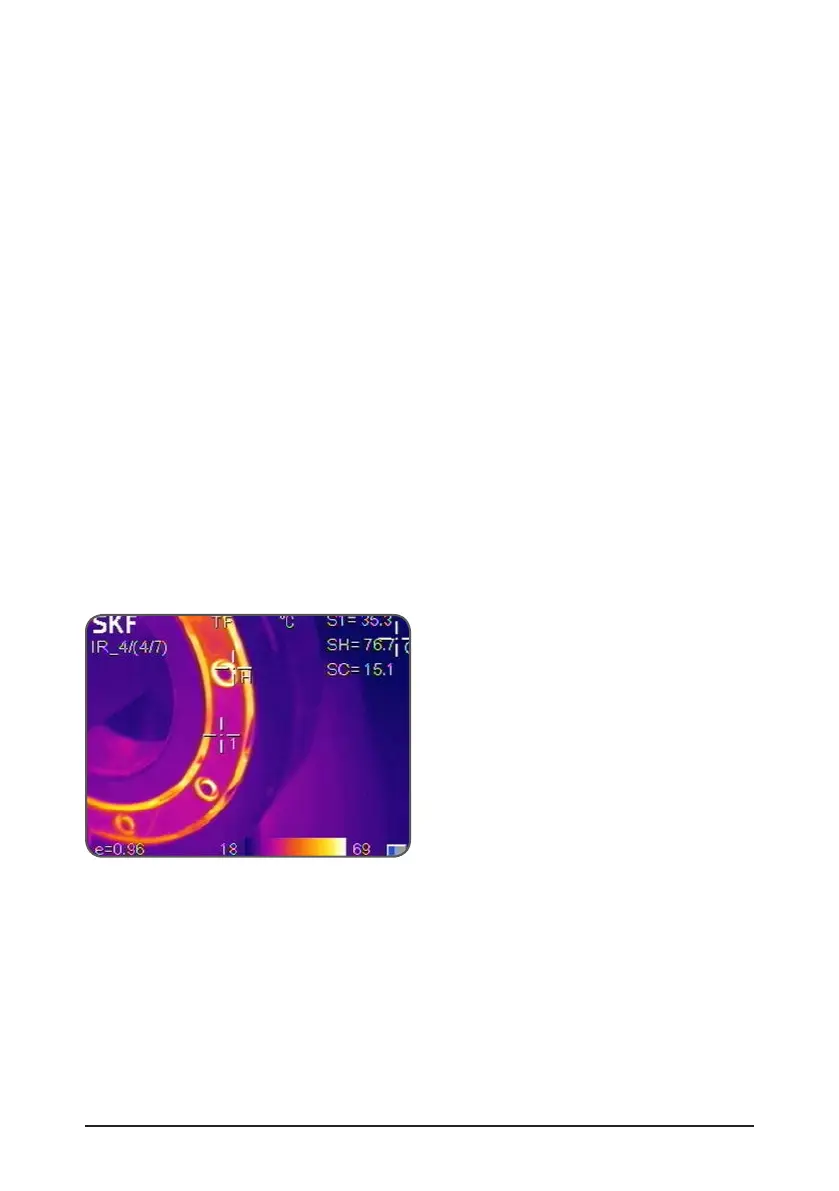

Figure 10 Measurement cursors
