SKF TKTI 21 & 31
3.4.3 S button
The S button will allow freezing and viewing the infrared or digital image and save these
images.
• Pressing the S button once will freeze the image.
• Pressing the Okay button will save the thermal and/or visual image.
If Voice recording is enabled, a voice comment dialog box will be displayed.
• Press the C button or select the box on the right to return to real-time
measurement.

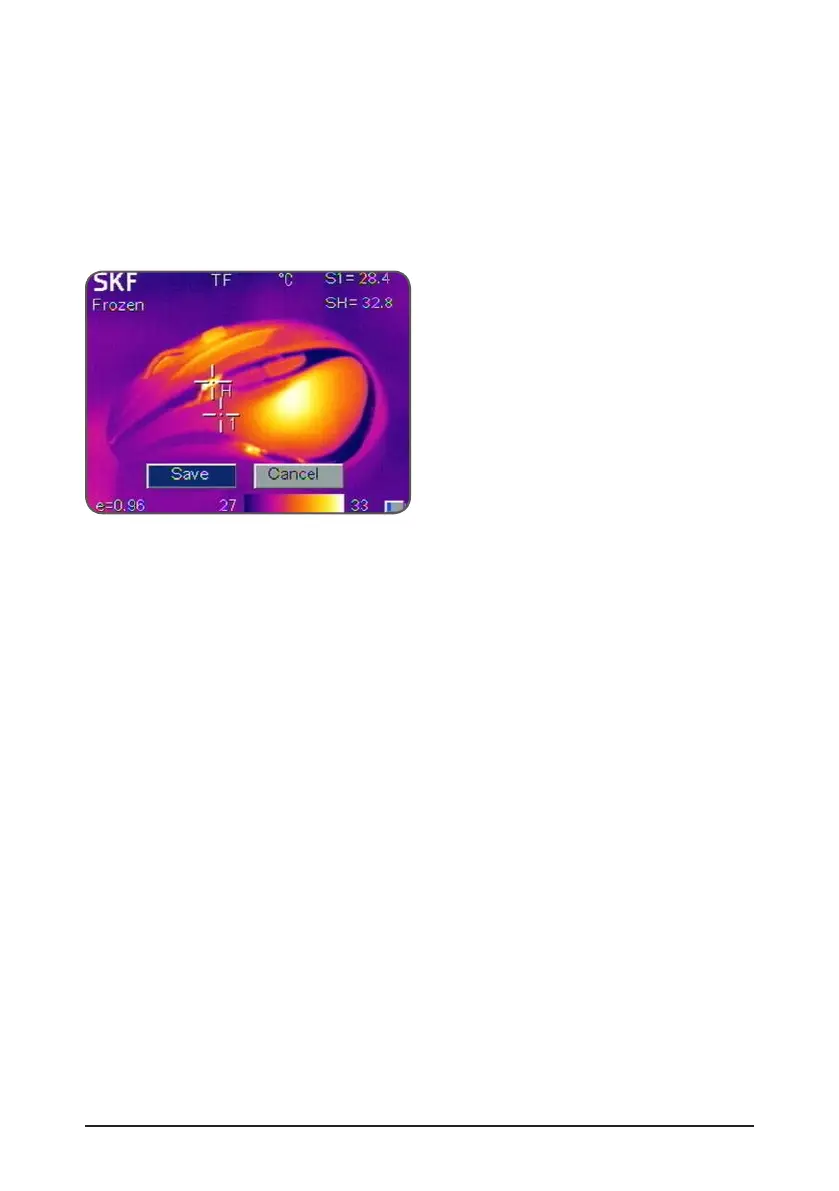

Figure 14 Saving an infrared image
3.4.4 C button
• Pressing the C button cancels the present operation when browsing in a Menu.
• Pressing the C button when an image is frozen or being viewed from the memory
will return to real-time measurement.
• When not browsing in a Menu or editing a setting, pressing and releasing the C
button will switch between the thermal image and the visible camera image.
• When a parameter is selected, such as a measurement cursor, line or area, pressing
the C button will delete the highlighted cursor, line or area.
