LED: SkyHopper PRO’s LEDs indicate power on, data transmission and link status.

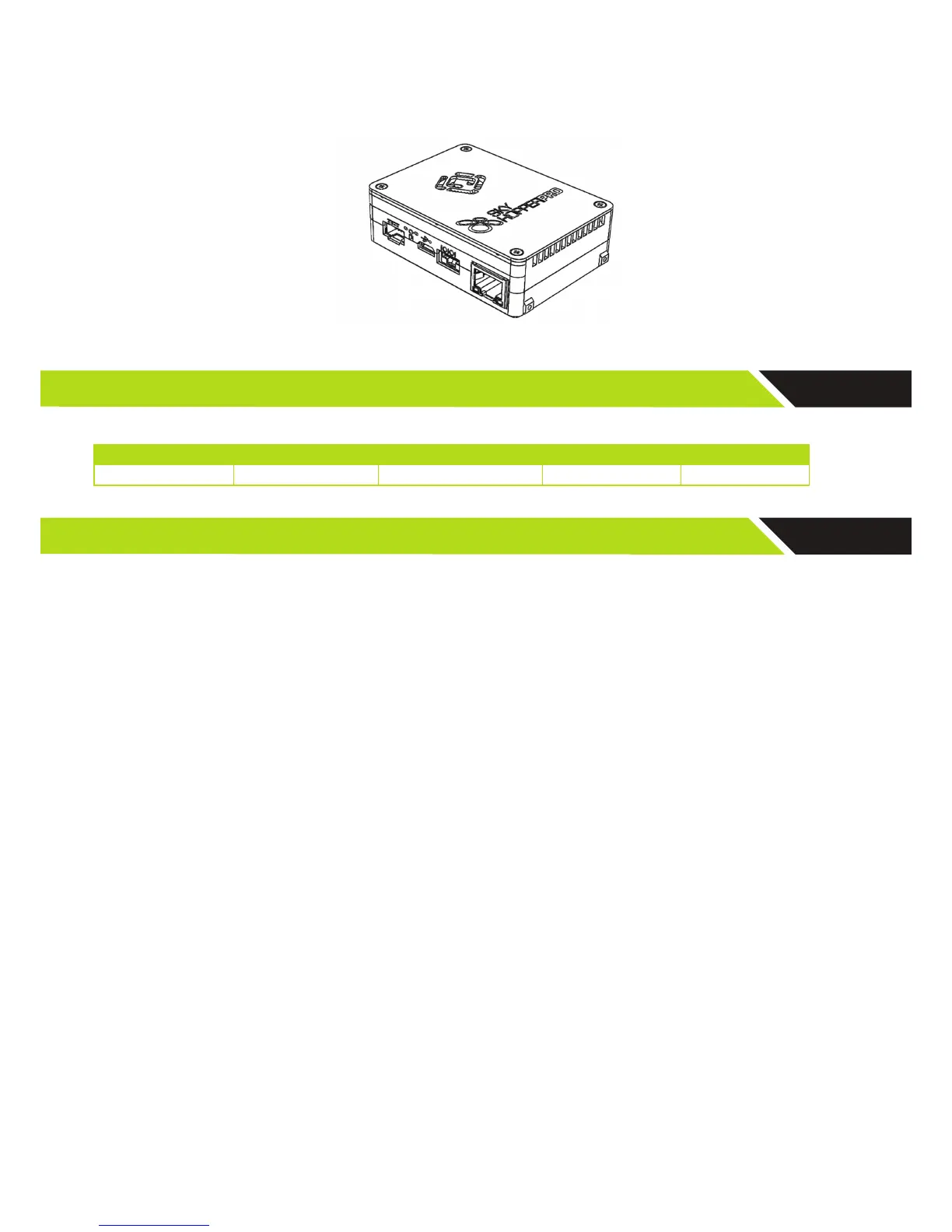

Figure 4: SkyHopper PRO Connector Side view
4 Mechanical Speci cations
The SkyHopper PRO unit is lightweight and has small form-factor.
Dimensions [HxWxD] (mm) [HxWxD] (inch) Weight (gr) Weight (oz)
26 x 54 x 74 1.0 x 2.1 x 2.9 105 3.7
Table 2: SkyHopper PRO Mechanical Speci cations
5 Technical Speci cations
5.1. Radio and Modem Speci cations
5.1.1. Frequency bands available:
• 2.4GHz unlicensed band
► Note: This product is con gured to operate within the FCC or CE limitations based on the country of
ordering. It is con gured within the 2.4 ISM frequency band. Mobilicom takes no responsibility should
you choose to take and/or operate this product outside of FCC or CE limits and/or in a country that does
not comply with FCC or CE regulations. Please note that SkyHopper speci cations vary based on FCC or
CE regulations.
5.1.2. Antennas
Various standard antennas can be supported using an MMCX/M connector. Some antennas with a different connector (such
as SMA) can be used with an adaptor or adaptor cable. The Ground Unit has a mounting kit supplied with an MMCX to SMA
connecting cable and SMA/M antennas.
5.1.3. RF Characteristics
• Peak output power: 2 x 0.5W per channel
• Average output power: 2 x 100mW per channel (20dBm)
• Noise Figure: 5dBm
• Transmission Power Control Range: 50dB in 1dB steps
• Radio Access Method: OFDM - TDMA
• Con guration & Diversity Support: 2X2 MIMO with MRC(RX) and CDD(TX)
• Frequency Resolution: 0.25MHz
• Channel bandwidth: Con gurable 4.2/8.4MHz
• FFT Supported: 512
• Guard band: 64 sub-carries on each side
• Total subcarriers used per symbol: 384
• Data carriers used: 336
• Pilot carriers used: 48
• Sub carrier spacing: 13KHz for 5MHz bandwidth with 5msec frame
• Modulations: QPSK, optional 16QAM
