8
• Software De ned Radio (SDR) mobile technology
• MIMO antenna processing technologies
• Scalable solution from a Point-to-Point to a Point-to-Multipoint network with relays
• High mobility with continuous transmissions up to 800km/h
• Mobile broadband network
• Small physical dimensions and very lightweight (105 gr) (portable device)
• Low power consumption (less than 10W)
• Plug-and-play installation
• Battery operated
2.3. Packets supported by the SkyHopper PRO network
The SkyHopper PRO physical link supports Ethernet (IEEE 802.3) which includes:
1. Ethernet, VLAN Services, VPN and any other Protocol over IP.
2. Real-time applications using RT Protocols such as: Voice, Video, Data
3. Broadcast, Multicast, Unicast
Any Ethernet packet received by the unit’s Ethernet port is encapsulated internally with a standard frame for transmitting via
the Data Link to the remote unit. The remote unit recovers the original Ethernet packet and forwards it to the Ethernet port.
► NOTE – The unit is similar to Ethernet layer 1 (physical layer), which makes integration with your
equipment nothing more than connecting the Ethernet cable.
3 Physical Description
3.1. Front View Connectors
RF1: Antenna 1 Connector, MMCX/F 50 Ohm
RF2: Antenna 2 Connector, MMCX/F 50 Ohm
GPS: GPS Antenna Connector, MMCX/F

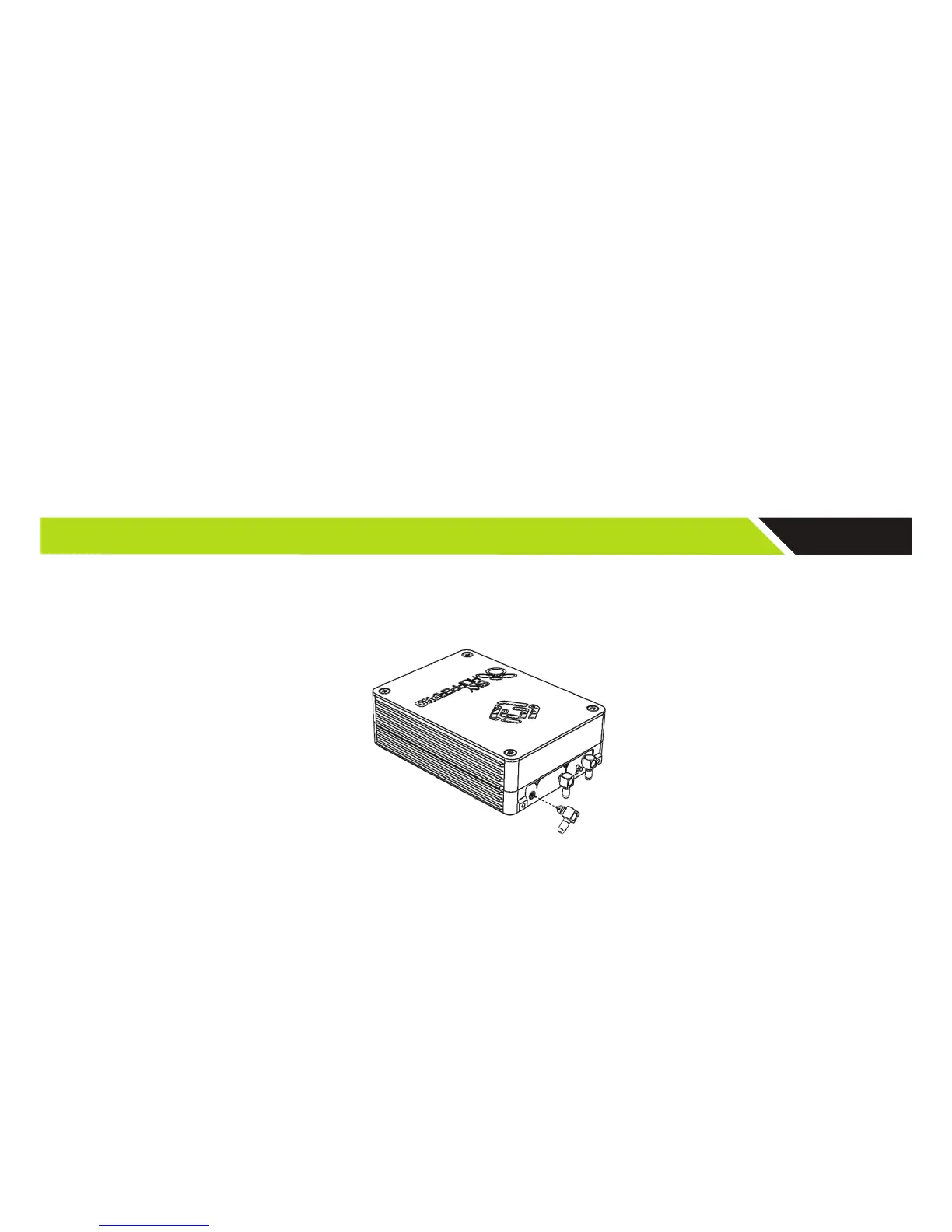

Figure 3: SkyHopper PRO Front View
3.2. Unit Cables: Type & Usage
Ethernet: Standard RJ45 connector
Serial (IOIOI):
Molex - 502380-0600
RS232 / 1PPS connector
Power:
ZE - ZER-04V-S
Power connectors utilizing 7-14.5VDC
! CAUTION – When SkyHopper PRO is carried by a person, environment temperature should not exceed
45°C (113°F)
► NOTE – Information about the connectors’ pin assignments are available in Appendix C – Connectors
Pinout
