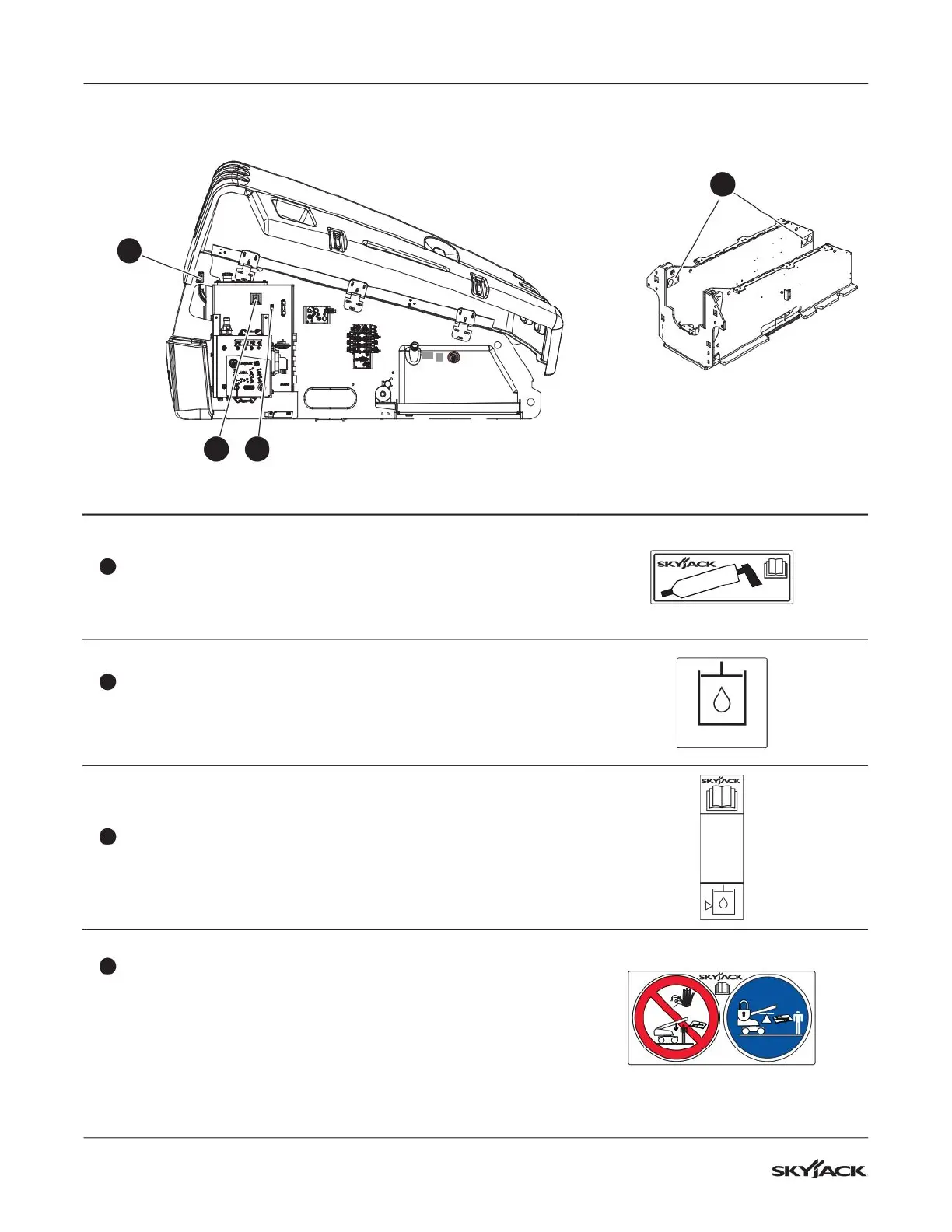

Section 8 – Labels SJ40 T+/SJ45 T+ & SJ61 T+/SJ66 T+ Labels
Description Label Pictorial
2
Grease point maintenance
Refer to the service manual for how to lubricate the MEWP.
TM
3
Hydraulic oil
Replace the hydraulic fluid with the approved type (refer to the
service manual).
4
Hydraulic oil level
Shows the minimum and maximum hydraulic oil level.
HIGH/MAX
LOW/MIN
TM
5
Warning - maintenance support
Do not enter the space below the work platform or extending
structure during maintenance unless a support structure is
in position. Refer to the service manual for the instructions
on machine power isolation and structure support during
maintenance.
TM
Control compartment (continued)
5
2
3 4
To Next Page
