Section 6 – Additional Procedures Move the MEWP for transport
6.6-2 Hoist the MEWP
WARNING
Only qualified riggers must operate the machinery
during a lift.
1. Rotate the boom and position the MEWP as
shown in Figure 20 for SJ40 T+/SJ45 T+ or
Figure 19 for SJ61 T+/SJ66 T+.
2. Turn the main power disconnect switch to the
off position.
3. Remove all personnel, tools, and materials from
the platform.
WARNING
When you hoist the MEWP, the lifting devices must
be attached to the designated lift points only. Refer
to Figure 20 for SJ40 T+/SJ45 T+ or Figure 19 for
SJ61 T+/SJ66 T+.
WARNING
Use chains with a load capacity sufficient to
withstand the MEWP weight. Refer to the serial
plate of the MEWP for the specified weight.
4. Attach the rigging to all four lift points as shown
in Figure 20 for SJ40 T+/SJ45 T+ or Figure 19
for SJ61 T+/SJ66 T+.

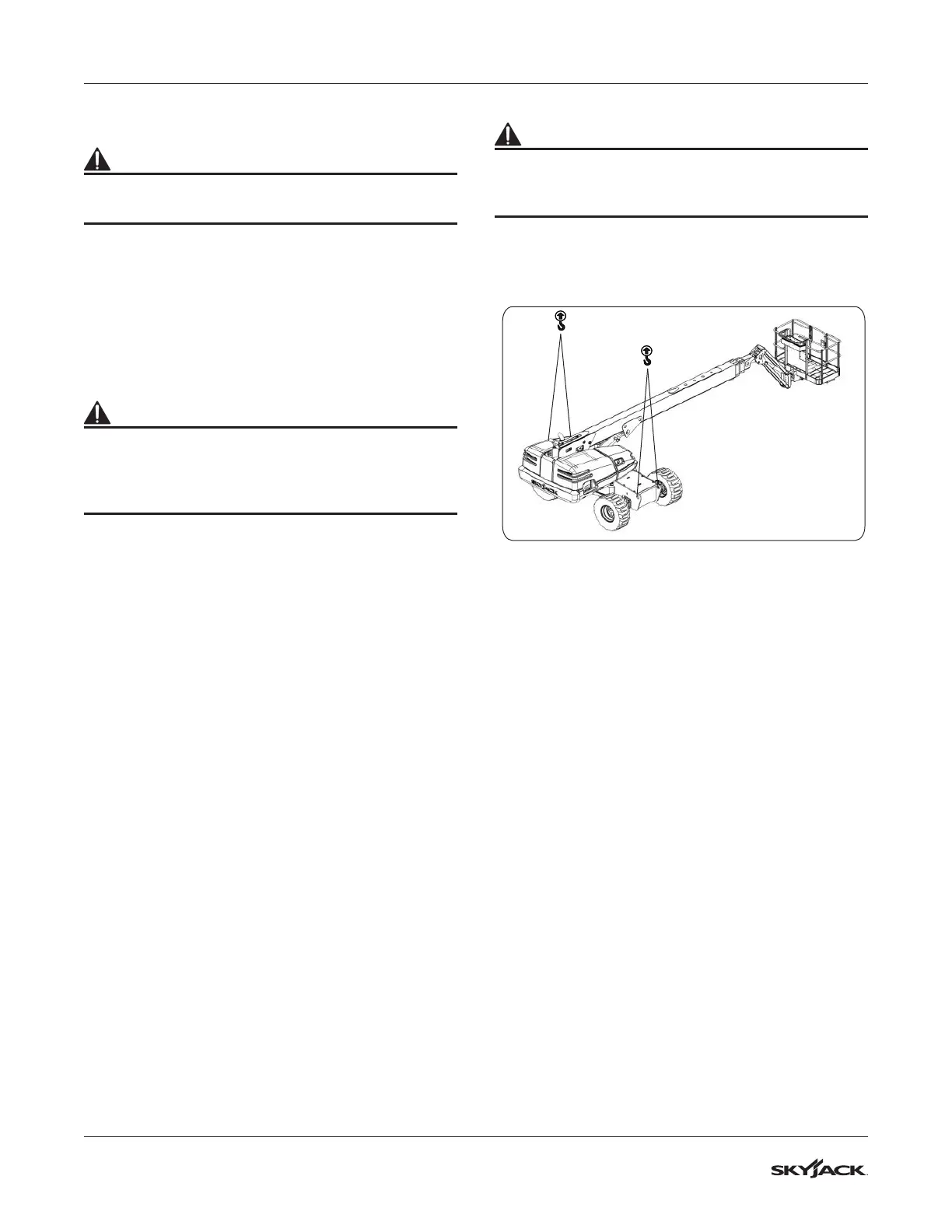

Figure 19 SJ61 T+/SJ66 T+ Lift points
5. Adjust the rigging to make sure the MEWP stays
level when you hoist it. Refer to Figure 20 for
SJ40 T+/SJ45 T+ or Figure 21 for SJ61 T+/
SJ66 T+ for the center of gravity location.
