Skyjack SJ40 T+ - Page 81

SJ40 T+, SJ45 T+, SJ61 T+, SJ66 T+ 213201ACA
81
Move the MEWP for transport Section 6 – Additional Procedures
NOTE
Horizontally, the center of gravity is approximately in
the middle of the MEWP, front to rear and side to side.
Refer to Figure 20 for SJ40 T+/SJ45 T+ or
Figure 1921 for SJ61 T+/SJ66 T+. Vertically, the
center of gravity is approximately a small distance
above the chassis.
C
L
10”
(0.25m)

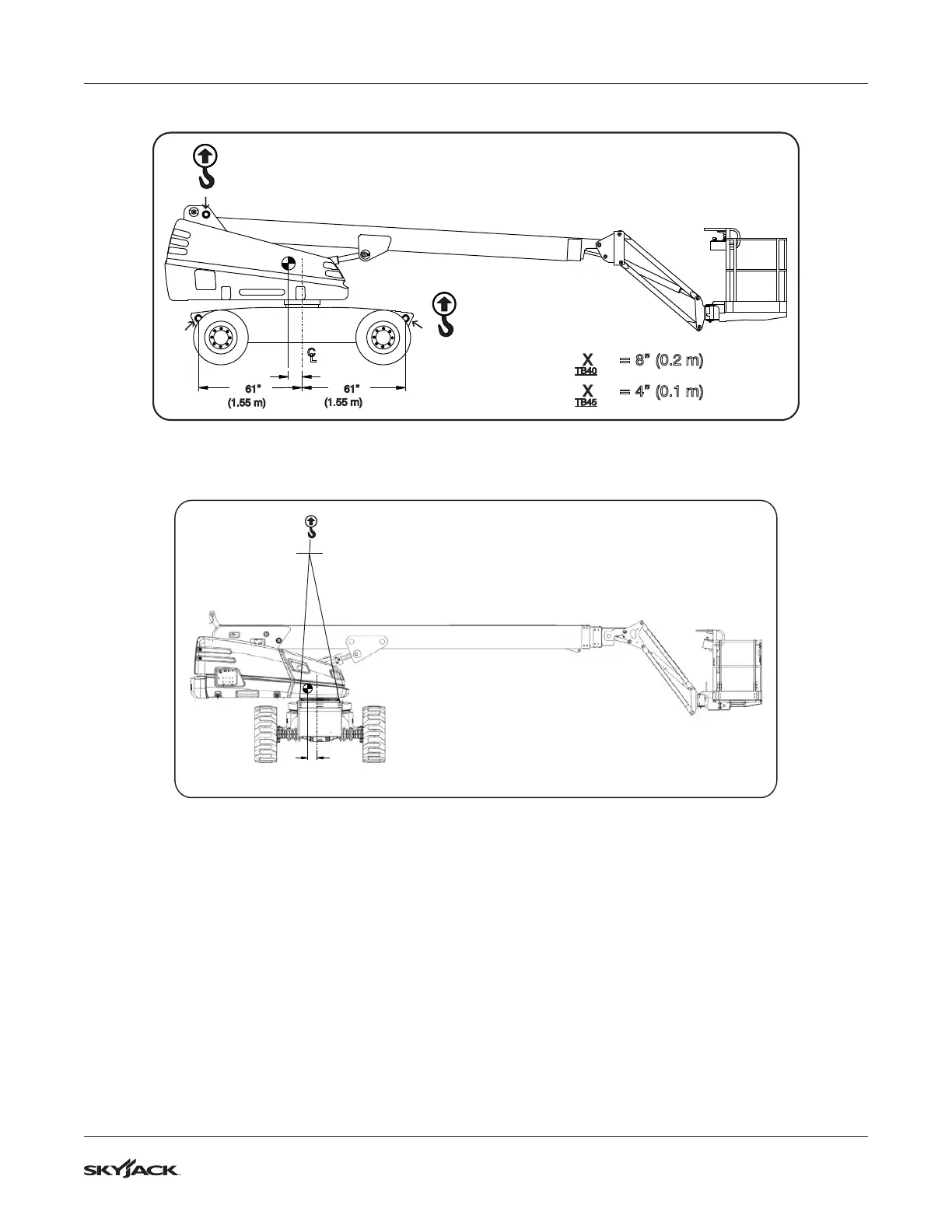

Figure 21 SJ61 T+/SJ66 T+ lift points and approximate center of gravity
Figure 20 SJ40 T+/SJ45 T+ lift points and approximate center of gravity
61” 61”
X
C
L
X = 8” (0.2 m)
TB40
X = 4” (0.1 m)
TB45
(1.55 m)
(1.55 m)
