213201ACA SJ40 T+, SJ45 T+, SJ61 T+, SJ66 T+
58

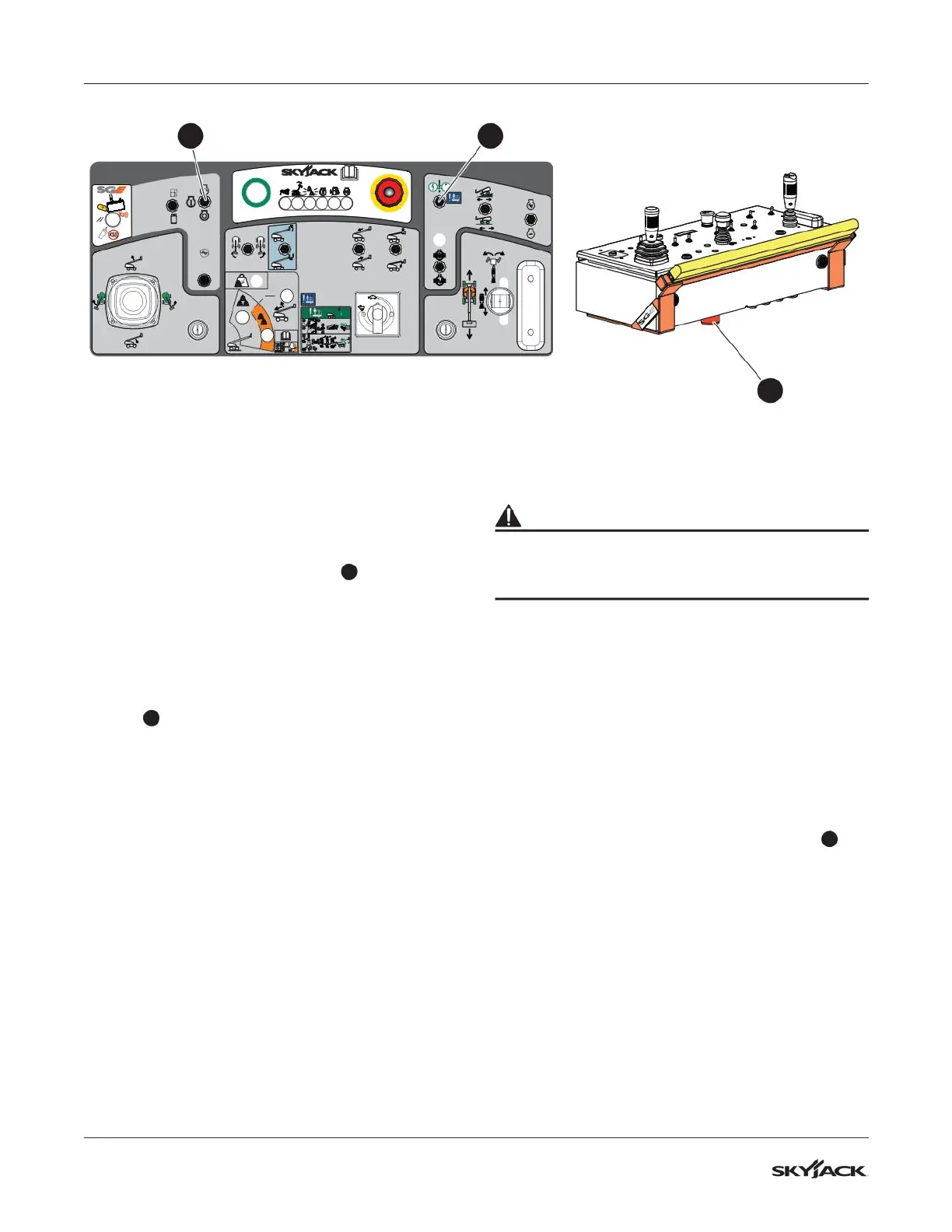

Section 4 – Inspections Before Operation Function tests
15. Press the sensor bar for more than 1 second
and then release it.
▪
Result: The function will stop and the audible/
visual alarm goes on immediately and stays
on after the bar is released. The engine stops
after 1 second. The reset button illuminates.
16. While the audible/visual alarm
9
is on, make
sure the LED strobe light is also on.
4.3-14 Do a test of the engine start/on/off
switch
1. Make sure the engine is on.
2. Select the off position from the engine start/on/
off
10
switch.
▪
Result: The engine stops and the platform
control console is disabled.
3. Select the on position from the engine start/on/
off switch.
▪
Result: The platform control console is
enabled.
4. Select the start position from the engine start/
on/off switch to start the engine.
4.3-15 Do a test of the emergency power
unit
CAUTION
Do not operate more than one function at a time
when you use the emergency power. If you do so,
it will overload the 12 volt emergency pump motor.
NOTE
To conserve the battery power, do a test of each
function through part of a cycle.
1. Push the emergency-stop button to turn the
engine off.
2. Pull the emergency-stop button.
3. Select the on position from the engine start/on/
off switch.
4. Press and hold the footswitch.
5. Select the emergency-power unit switch
11
and operate each function control handle or
switch.
▪
Result: All the boom functions operate. The
drive and steer functions do not operate.
1
3
4
+
STOP
=
2
+
9
10 11
