Section 3 – Familiarization Control functions

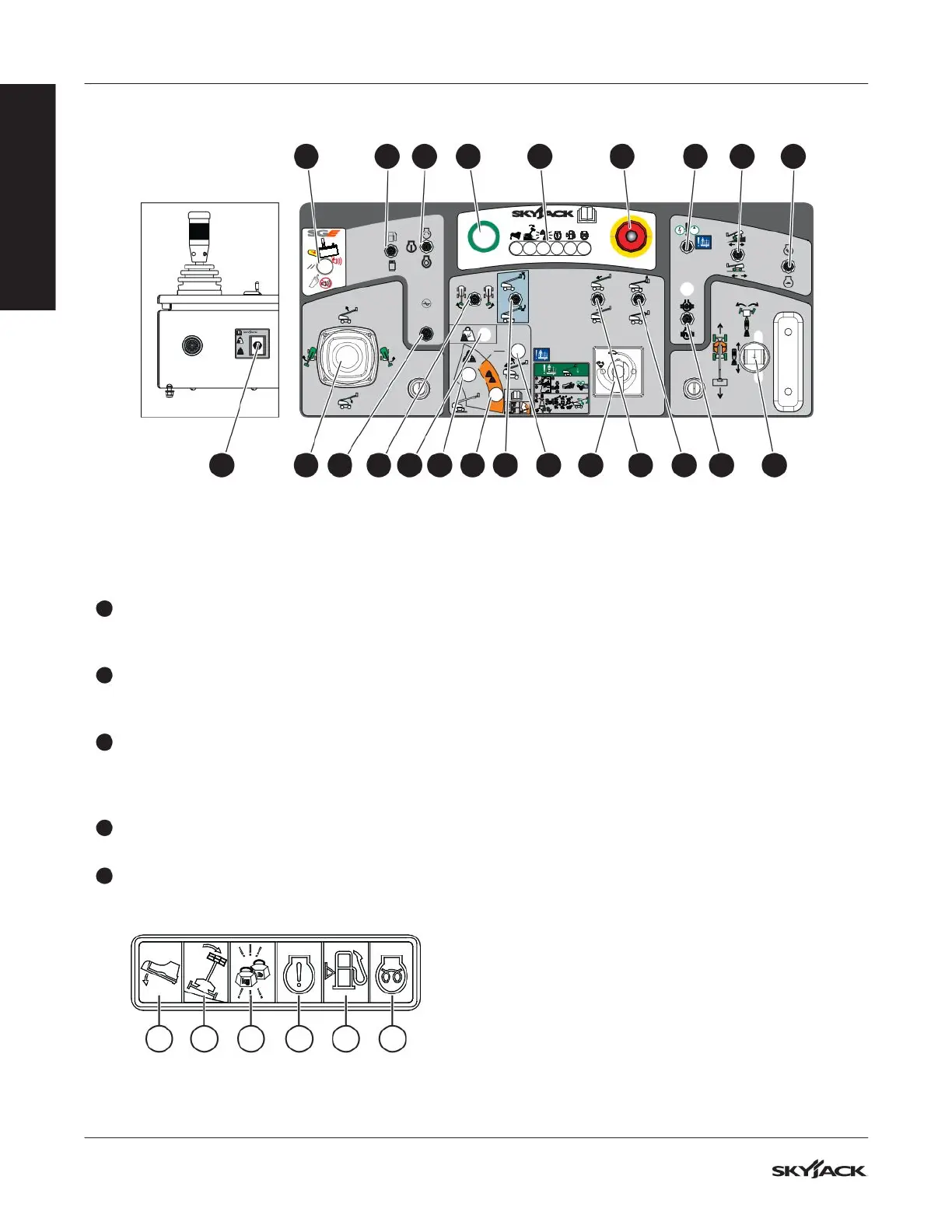

3.3-4 Platform control console
Refer to Section 3.1 for the location of the platform
control console.
1
Secondary guarding electrical (SGE) reset:
This button, when pressed, stops the SGE
audible/visual alarm.
7
2
Fuel selector (dual fuel): Use this switch to
select liquid propane gas or gasoline as the fuel
type.
3
Engine start/on/off: In the start position, this
switch starts the engine. When the engine starts,
this switch goes back to the on position. In the
off position, this switch stops the engine.
4
Horn: This push-button makes a sound like a car
horn.
5
Status indicator pilot lights: These lights show
the operation condition and errors in the control
or engine functions.
A B C D E F
A. Footswitch: This light illuminates when
the footswitch is pressed. A 7-second anti-
tiedown feature prevents the footswitch
operation when the operator presses it for
7 seconds without the activation of a function.
B. Chassis tilt: This light illuminates when
the MEWP chassis is at an inclination that
activates the tilt switch. At this inclination,
an alarm will make a sound at the platform.
Refer to Section 6.2 for instructions on
recovery from an inclined position.
C. Overload: This red light shows an overload
status. Refer to Section 3.4-7.
D. Engine: This light shows a failure in the
engine control system.
E. Fuel: This light shows a low fuel level.
F. Glow plug (diesel engine): This light
illuminates until the glow plugs complete their
timed-cycle. When the light goes off, you can
start the engine.
FAMILIARIZATION
1
3
4
+
STOP
=
2
+
TM
1 4 5 6 7 8 9
10111213141516171819 23202122
2 3
