SJ40 T+, SJ45 T+, SJ61 T+, SJ66 T+ 213201ACA
91
Technical diagrams Section 7 – Technical Diagrams and Specifications

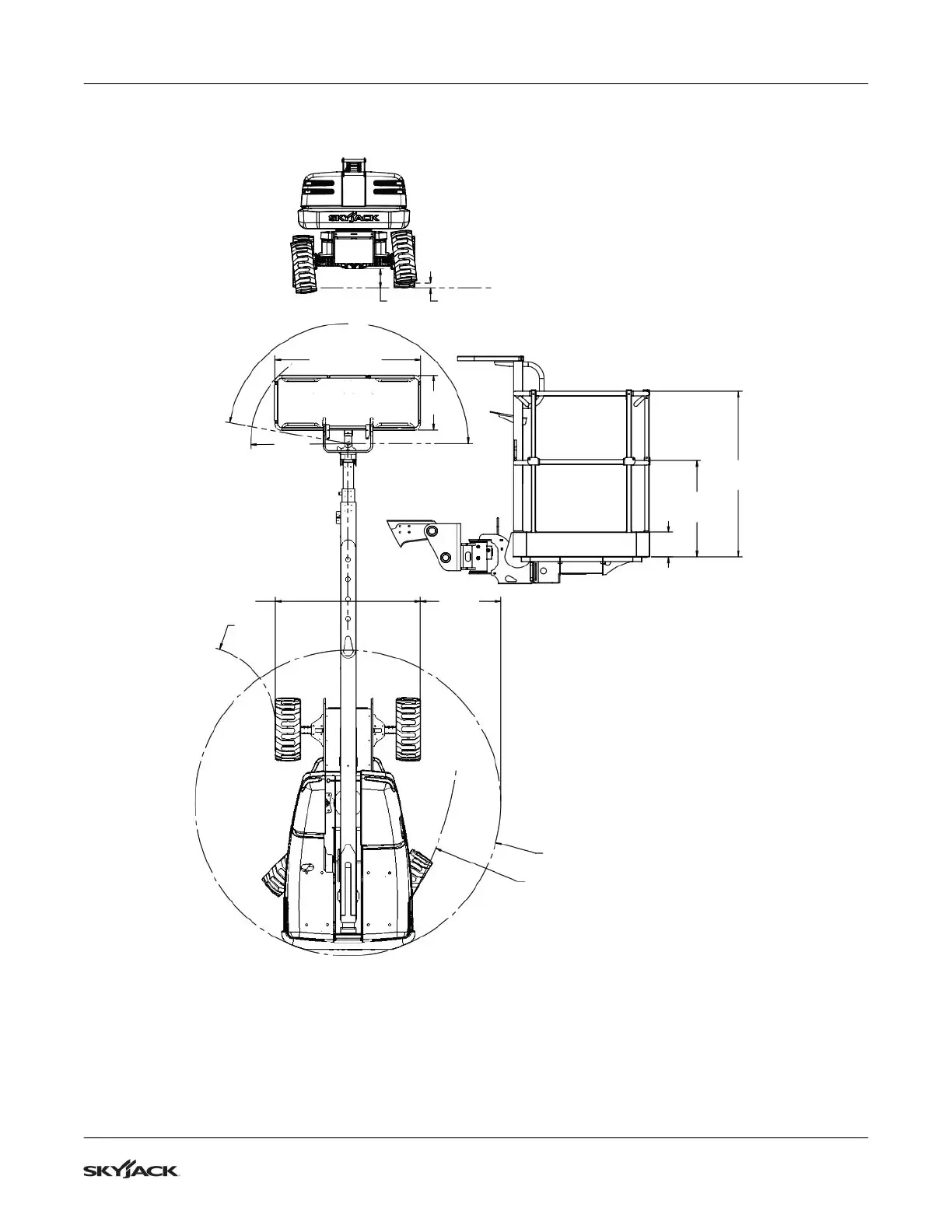

Dimensions - SJ61 T+ (continued)
0.04 m
(1.75 in)
0.36 m
(14.25 in)
0.91 m
(36 in)
1.11 m
(4 ft)
1.62 m
(64 in)
5.05 m
(16 ft 7 in)
1.33 m
(4.36 ft)
1.93 m
(6 ft 4 in)
1.83 m / 2.44 m
(72 in / 96 in)
170°
360°
0.65 m
(2 ft)
0.17 m
(1 ft)
