103
SJ9233 RT, SJ9243 RT, SJ9253 RT, SJ9664 RT 221491AFA

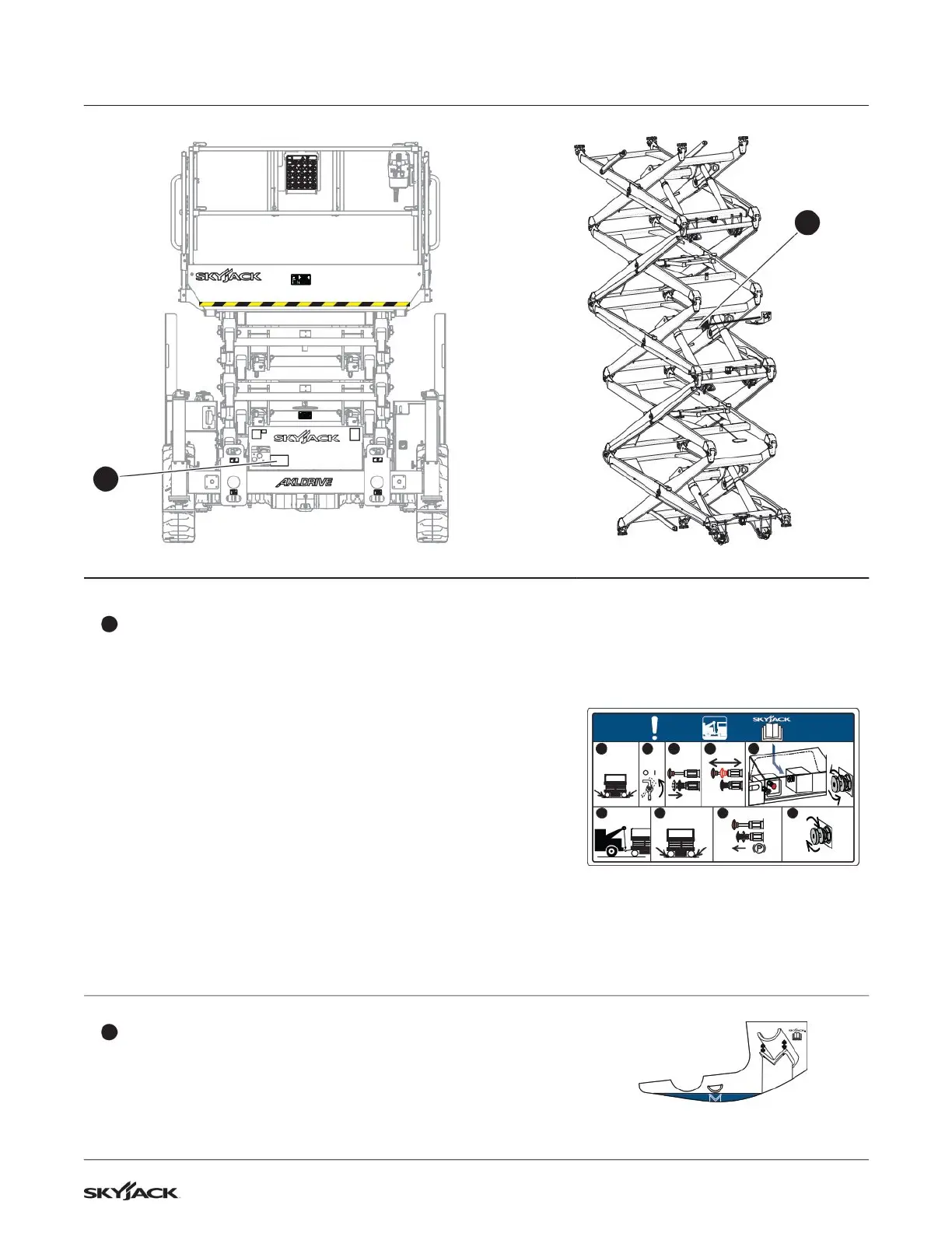

SJ9233 RT, SJ9243 RT, SJ9253 RT & SJ9664 RT labels Section 8 – Labels
Description Label Pictorial
12
Push, winch and tow procedure
Refer to the operation manual.
1. Apply wheel chocks if necessary.
2. Turn the main power disconnect switch to the off position.
3. Push the plunger of the brake auto-reset valve on the drive
manifold at the rear side of the base..
4. Push and release the knob of the hand pump 10-30 times.
The brake is now released to permit wheel rolling.
5. Turn the freewheeling valve counterclockwise to a fully open
position.
6. Push, winch, or tow the MEWP to the necessary location.
7. Re-apply the wheel chocks if necessary.
8. Pull out the plunger of the brake auto-reset valve to re-
engage the brakes.
9. Turn the freewheeling valve knob clockwise to a fully close
position.
10-30
5
6
7
4
1
2
3
8 9
TM
13
Distance mark for the lower maintenance support
(SJ9253 RT)
Make sure the top of the lower maintenance support is below
the blue mark found on the cylinder mount.
Rear side (continued)
13
12
