Section 8 – Labels Base control labels
8.1 Base control labels

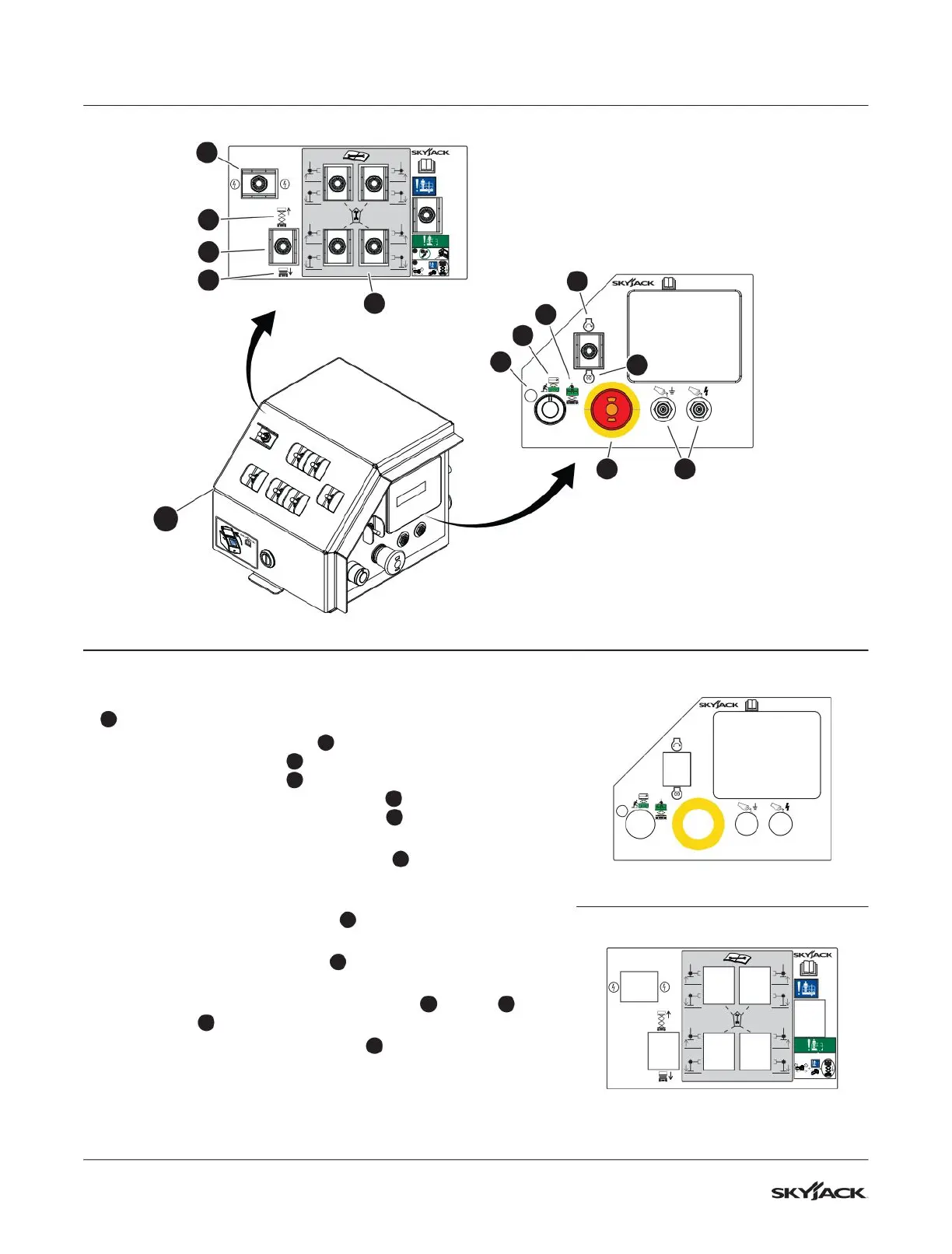

Description Label Pictorial
1
Base controls
▪
Select the off position
2a
to turn off power to the MEWP,
the base position
2b
to energize the base controls, or the
platform position
2c
to energize the platform controls.
Select the engine start position
3a
to start the engine,
or select the glow plug position
3b
to energize the glow
plugs to start a cold diesel engine.
▪
Push the emergency-stop button
4
to disconnect power
to the control circuit. Pull the emergency-stop button to
connect the power again.
▪
Push the circuit breakers
5
to reset the power if a power
overload or positive circuit grounding occurs.
▪
Select the enable switch
6
to energize the raise, lower,
emergency lowering, and outrigger functions.
▪
Select the lower/neutral/raise switch
7
to raise
7a
or
lower
7b
the platform.
▪
Select the outrigger switches
8
to manually extend or
retract the outriggers.
TM
TM
TM
TM
+
1
2
T
M
1
7
2
9
3
9
A
A
Z
Z
1
6
7a
7
7b
8
3a
2a
2b
2c
3b
4 5
