SJ9233 RT, SJ9243 RT, SJ9253 RT, SJ9664 RT 221491AFA
Base control labels Section 8 – Labels

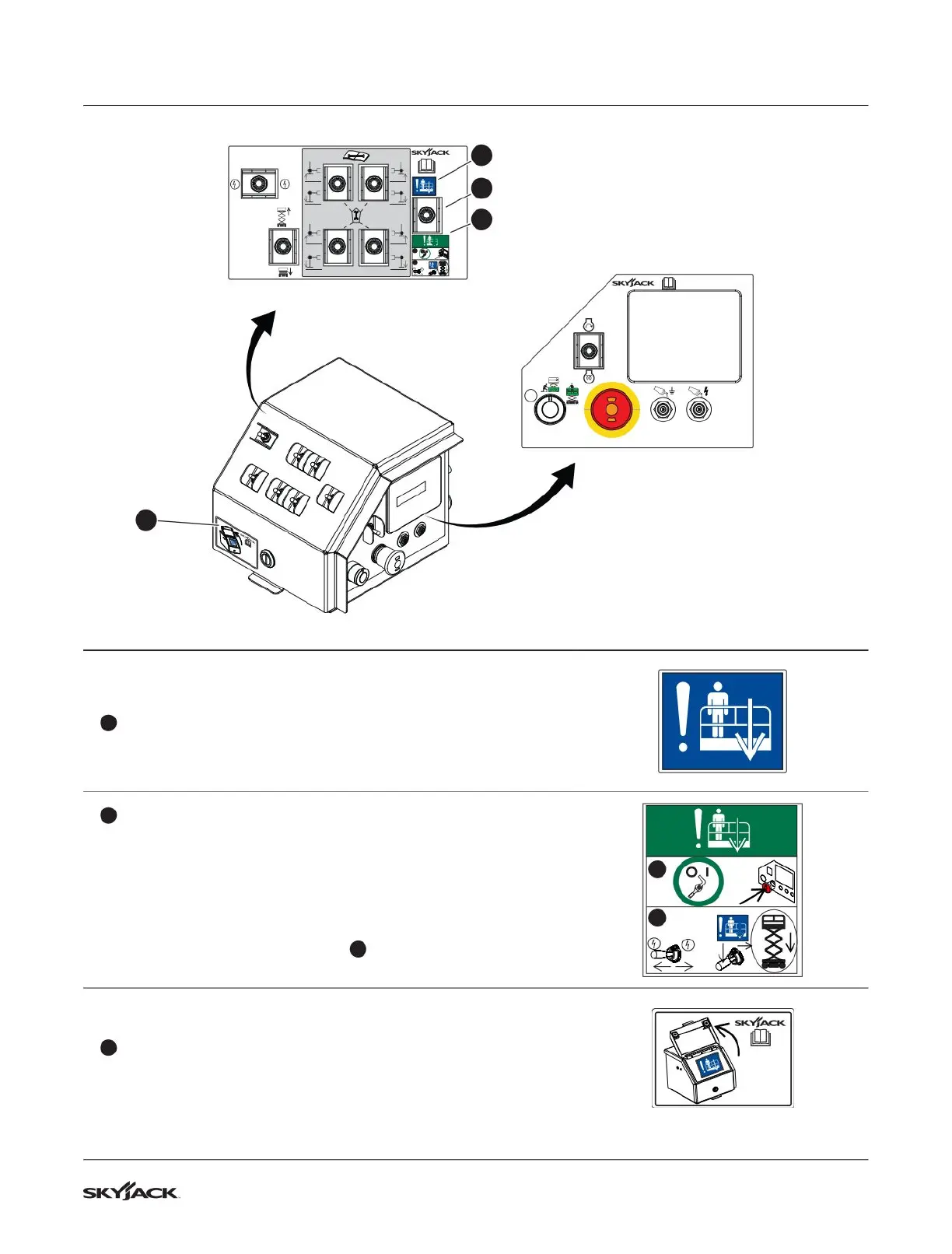

Description Label Pictorial
9a
Emergency-lowering identification
9b
Emergency-lowering procedure
Refer to the operation manual.
The main power disconnect switch must be in the on position.
1. Push the emergency-stop button on the base control
console.
2. Hold the enable switch to the left or right and hold down the
emergency-lowering switch
9
on the base control console
to fully lower the platform.
+
1
2
10
Emergency-lowering identification
Found below the base control console cover.
TM
172939AAZZ
Base control labels (continued)
TM
TM
+
1
2
T
M
1
7
2
9
3
9
A
A
Z
Z
9
9b
9a
10
