Section 4 – Inspections Before Operation Function tests
9. Squeeze the function-enable switch
4
and
push the controller handle
5
to deploy all
four outriggers. When the first outrigger hits the
ground (observed as the initial movement), stop
lowering the outriggers, and observe all four
outriggers.
▪
Result: All four legs have moved more than
5 cm (2 in) and all the pads are near the
ground.
10. Resume the deployment of the outriggers until
the platform has leveled itself.
▪
Result: All four outriggers extend until they
hold the MEWP weight and put the MEWP
in a level position. The outriggers stop
automatically when the platform is level. The
outrigger light goes solid
8b
.
11. Move the lift/off/drive switch
3
to the lift
position
3b
.
WARNING
Look for overhead obstructions or other possible
hazards around the MEWP when you raise the
platform. Do not lower the platform unless the area
below is clear of personnel and obstructions. If
you do not obey, there is a risk of death or serious
injury.
12. Raise the platform by approximately 0.3 m (1 ft).
▪
Result: The platform raises.
13. Fully lower the platform.
▪
Result: The platform fully lowers.

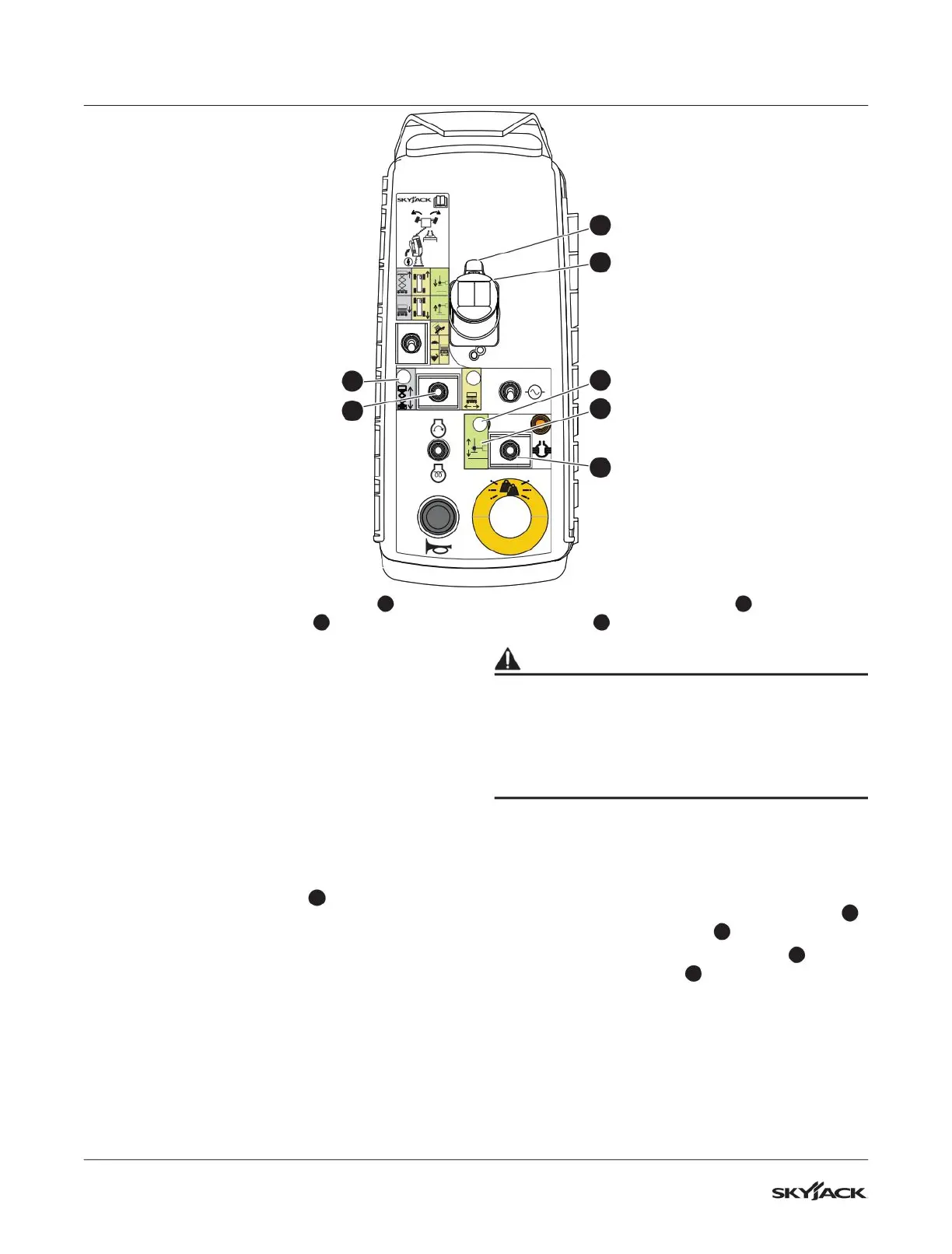

14. Move the auto-level/differential lock switch
8
to the auto-level position
8a
.
15. Squeeze the function-enable switch
4
and pull
the controller handle
5
to fully retract all four
outriggers.
▪
Result: All four outriggers fully retract.
