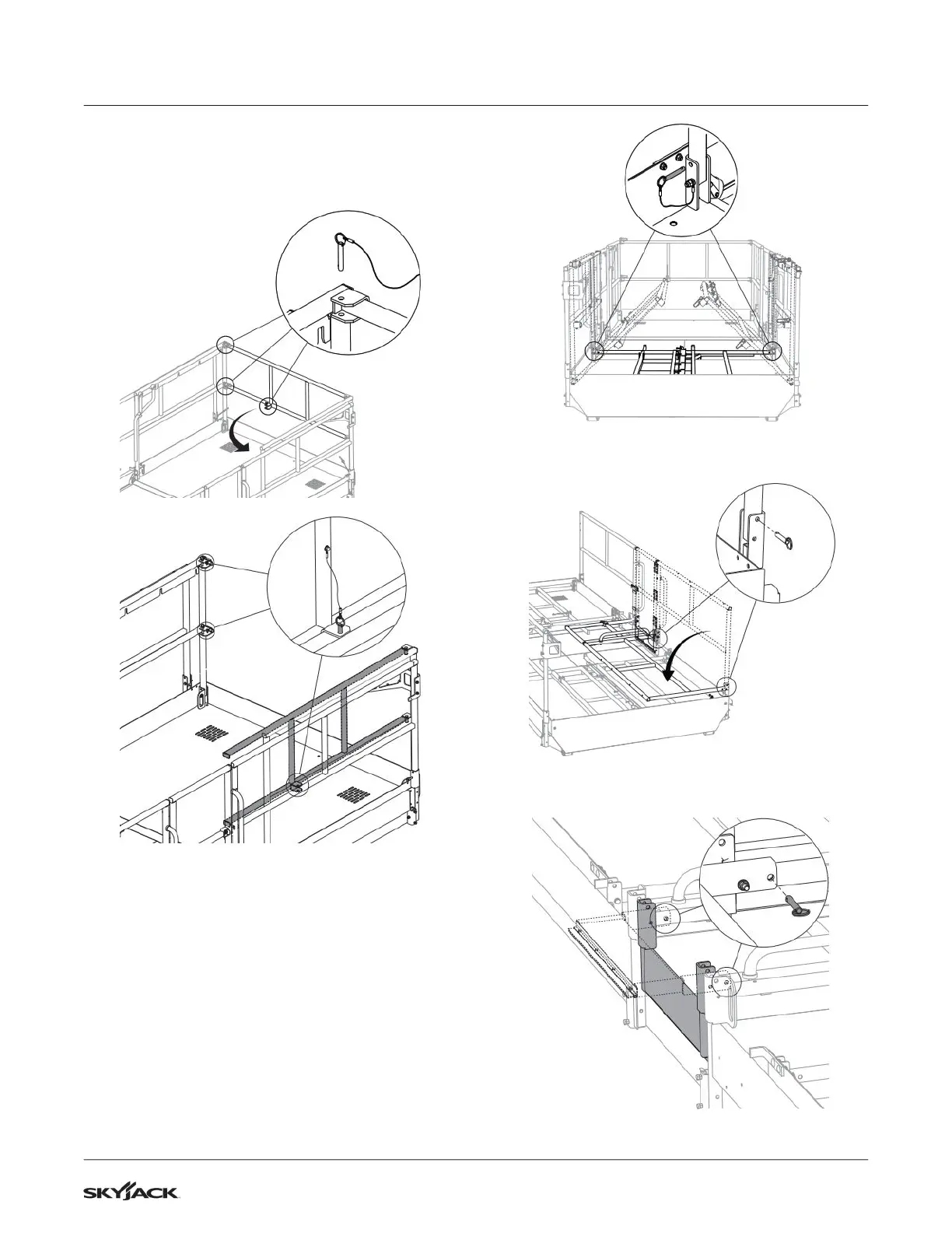

Fold the guardrail Section 6 – Additional Procedures
9. Remove all the lock-pins on the front guardrail
and swing it to the right extension guardrail.
Install the mid-rail lock-pin to lock the front
guardrail to the right extension guardrail.
10. Remove all the lock-pins from the rear guardrail
and swing it to the left extension guardrail. Install
the mid-rail lock-pin to lock the rear guardrail to
the left extension guardrail.
11. Remove all the lock-pins on the front-left
extension guardrail and fold it down.
12. Remove all the lock-pins on the rear-left
extension guardrail and fold it down.
13. Remove all the lock-pins on the front-right
extension guardrail and fold it down.
14. Remove all the lock-pins on the rear-right
extension guardrail and fold it down.
15. Remove all the lock-pins on the front-left
guardrail and the left gate.
16. Pull the gate latch, and fold down the front-left
guardrail along with the left gate.
