SJ9233 RT, SJ9243 RT, SJ9253 RT, SJ9664 RT 221491AFA

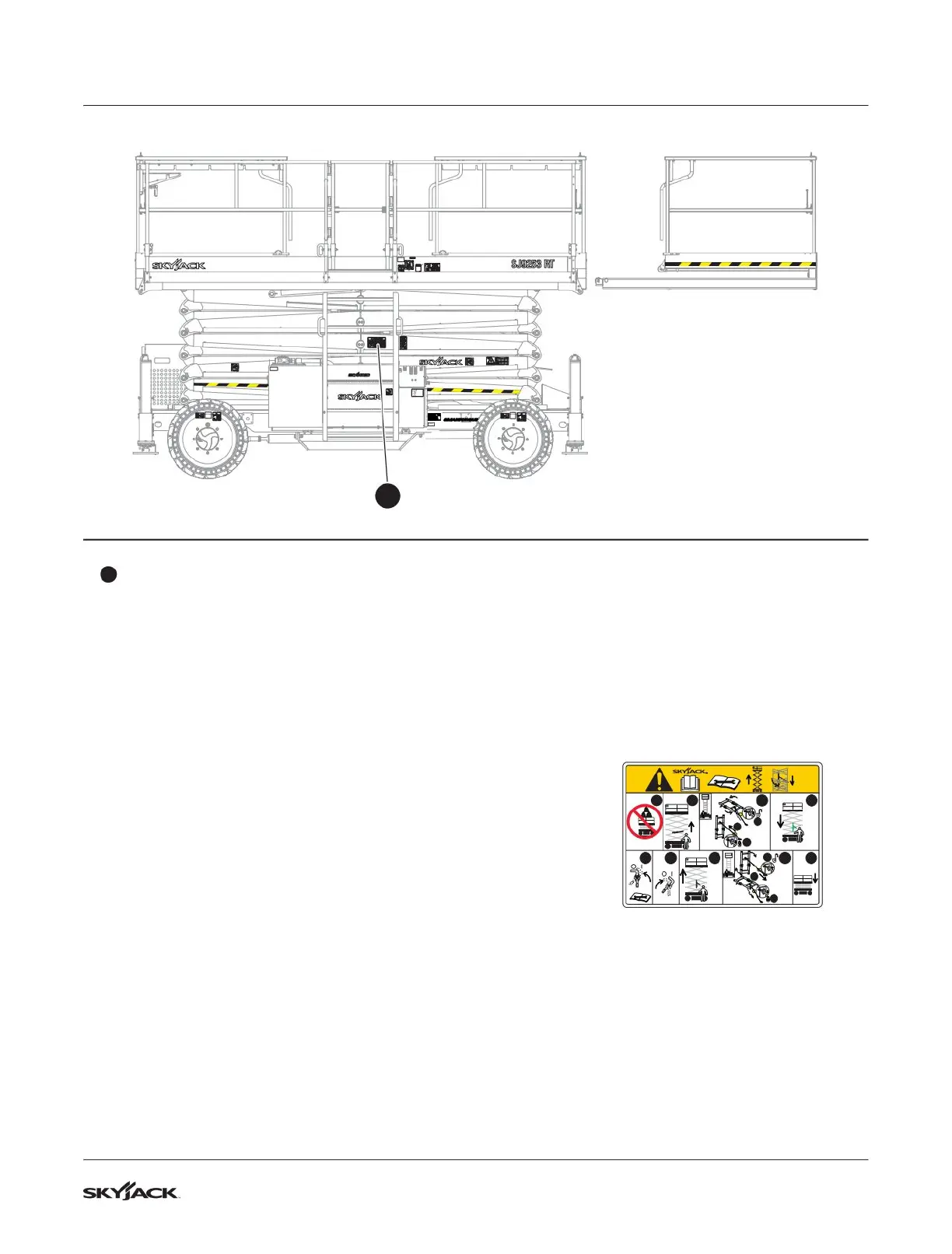

SJ9233 RT, SJ9243 RT, SJ9253 RT & SJ9664 RT labels Section 8 – Labels
Description Label Pictorial
8a
Maintenance support procedure (SJ9233 RT, SJ9243 RT)
Refer to the operation manual.
1. Remove all personnel and material from the platform.
2. Raise the platform until there is adequate clearance to deploy
the maintenance support.
3. Deploy the maintenance support:
a. Remove the maintenance support rod from the keyhole
at the rear side of the MEWP.
b. Push the rod handle so that the maintenance support is in
a vertical position. Align the maintenance support with the
pipes on the cross member.
c. Put the rod back into the keyhole.
4. Lower the platform until the pipes on the cross members fully
touch the maintenance support, and the platform stops.
5. Turn the main power disconnect switch to the off position.
Do maintenance on the MEWP. Refer to the service manual.
6. Turn the main power disconnect switch to the on position.
7. Raise the platform until there is adequate clearance to retract
the maintenance support.
8. Retract the maintenance support:
a. Remove the rod from the keyhole at the rear side of the
MEWP.
b. Pull the rod handle to retract the maintenance support.
c. Put the rod back into the keyhole.
9. Fully lower the platform.
4
2
5
7 86
A
C
1
B
C
B
3
A
9
Left side (continued)
Manufactured
/YYYY
S/N
8a
