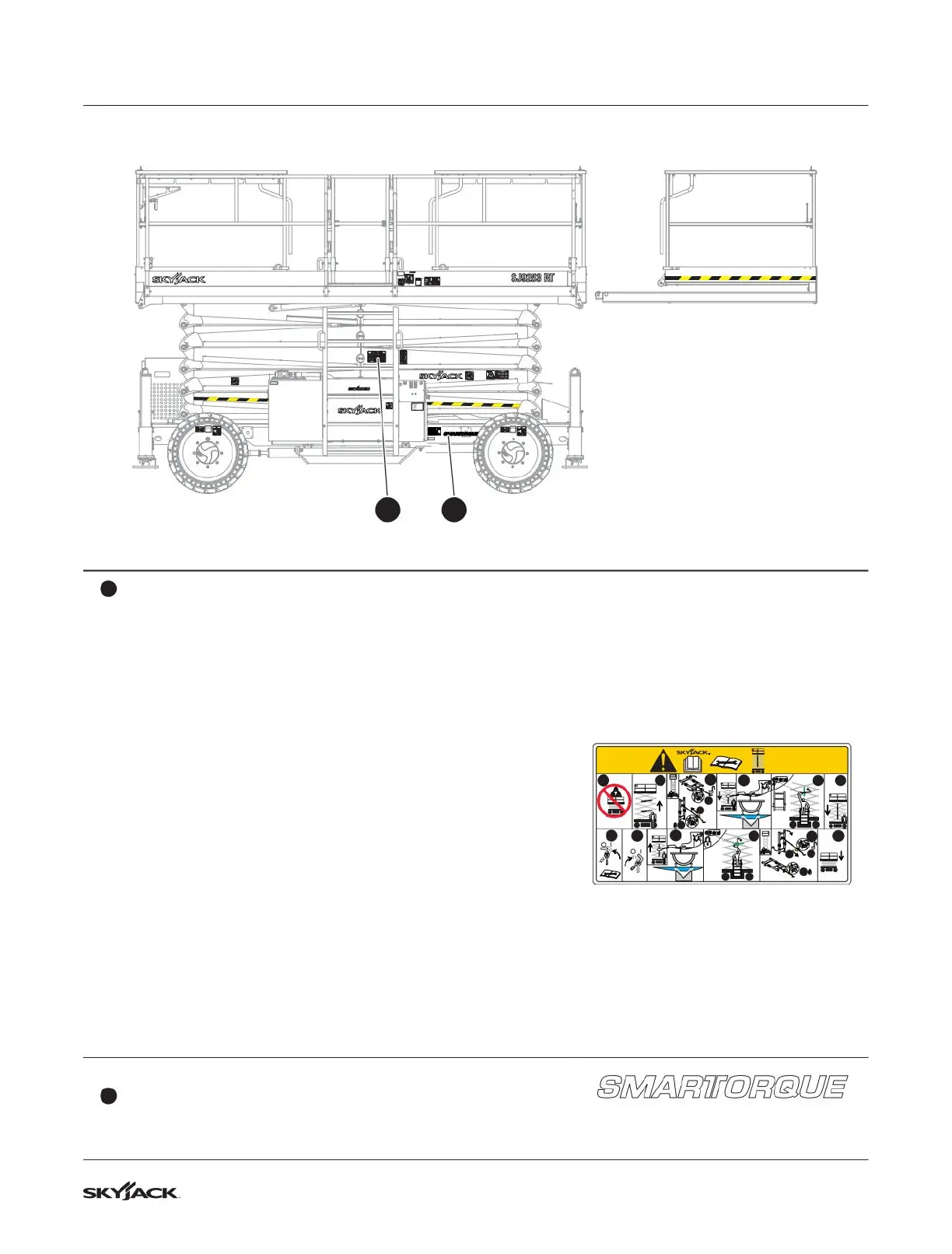

SJ9233 RT, SJ9243 RT, SJ9253 RT & SJ9664 RT labels Section 8 – Labels
Description Label Pictorial
8b
Maintenance supports procedure continued
(SJ9253 RT)
6. Lower the platform until the pipes on the top and bottom
cross members fully touch the maintenance supports, and
the platform stops.
7. Turn the main power disconnect switch to the off position.
Do maintenance on the MEWP. Refer to the service manual.
8. Turn the main power disconnect switch to the on position.
9. Raise the platform until the top of the lower support is just
below or at the blue mark on the top cylinder mount.
10. Retract the top maintenance support:
▪
Go up the MEWP ladder.
▪
Swing the top maintenance support up until it locks back
into the latch on the scissor assembly.
▪
Go down the MEWP ladder.
11. Retract the lower maintenance support:
a. Remove the rod from the keyhole at the rear side of the
MEWP.
b. Pull the rod handle to retract the lower maintenance
support.
c. Put the rod back into the keyhole.
12. Fully lower the platform.
1
5
4
2
3
7
9
11
12
8
10
B
A
C
6
C
A
B
9
Smartorque™ logo
Left side (continued)
Manufactured
/YYYY
S/N
8b 9
