SkyLink ATOMS Series User Manual

CAUTION

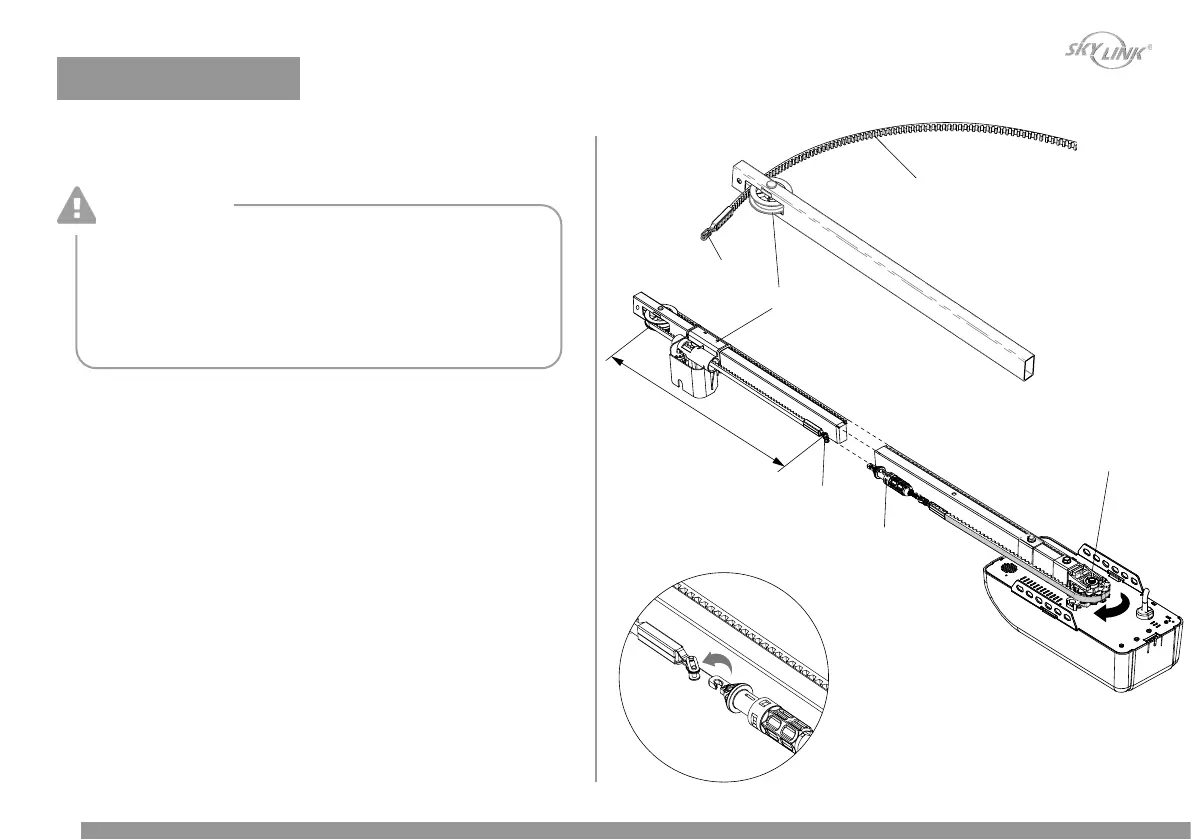

1. Lay the chain / belt beside the rail as shown.
2. Grasp the turnbuckle connector [K2] at the end of the
chain / belt assembly, pass it through the window.
3. Position the trolley assembly [J3] near the door end. Pull the
chain assembly (cable end) / belt around the idler pulley [J2]
and feed through the trolley. Place the turnbuckle connector
2ft from idler pulley.
Note: The cable on the chain assembly, or the ribbed side
on the belt assembly must contact the pulley.
4. Grasp the turnbuckle [K3] and dispense the remainder of
the chain assembly / belt along the rail toward the motor unit around
the sprocket assembly and continuing to the turnbuckle
connector. The sprocket assembly [J4] teeth must engage
the chain / belt.
5. Hook the turnbuckle into the turnbuckle connector.
To avoid possible SERIOUS INJURY to finger from moving
garage door opener:
• ALWAYS keep hand clear of sprocket, chain / belt or any
moving parts while operating opener.
• Securely attach sprocket cover BEFORE operating.
Hook into
Connector
2 ft.
K2
K3
K2
Chain assembly (cable end) / Belt
J2
J4
Step 3 – Install the chain / belt
9
ASSEMBLE THE RAIL

SkyLink ATOMS Series Specifications

General

Motor Type	DC
Horsepower	1/2 HP
Smartphone Control	Yes
Lighting	LED
Type	Garage Door Opener
Power Source	AC
Security	Rolling Code Technology
Operating Frequency	315 MHz
Compatibility	Most standard garage doors
Mounting Type	Ceiling Mount
Drive Type	Chain
Battery Backup	Yes
Safety Feature	Auto-reverse, Obstruction detection
Smart Features	IFTTT integration
Battery Type	12V
Number of Buttons	3
Operating Range	100 feet
